VELOTRIC

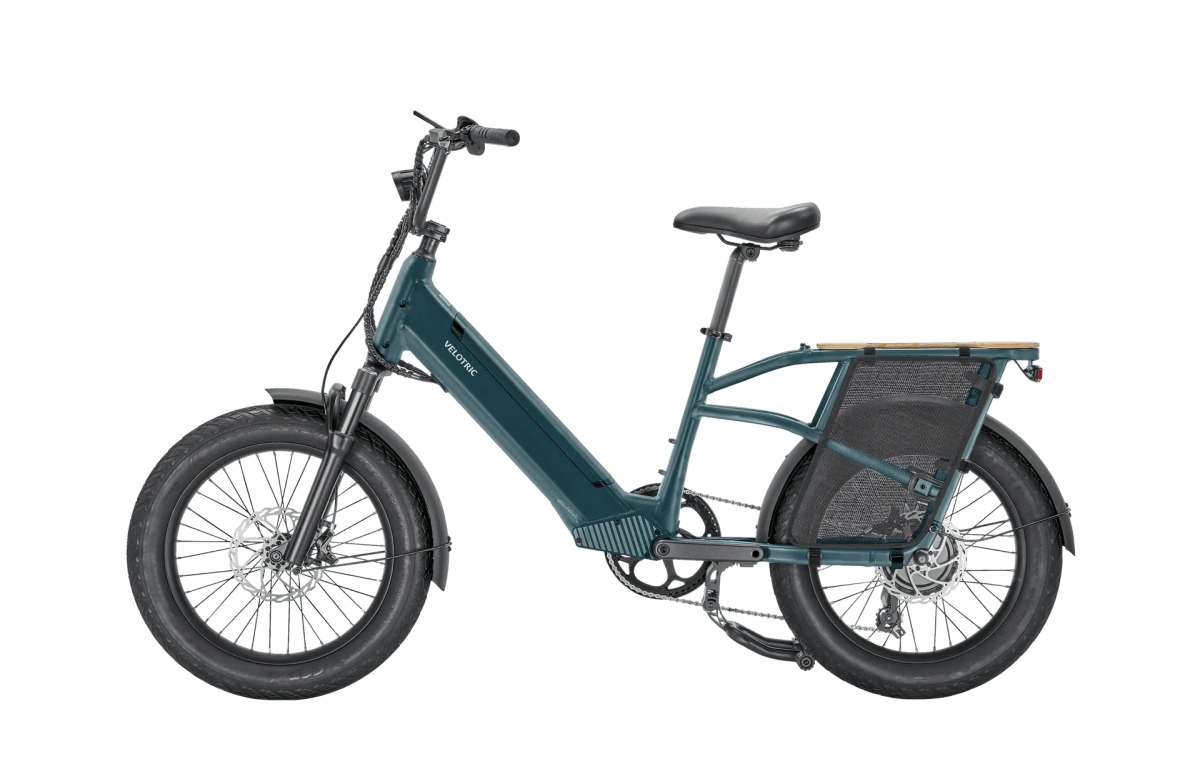

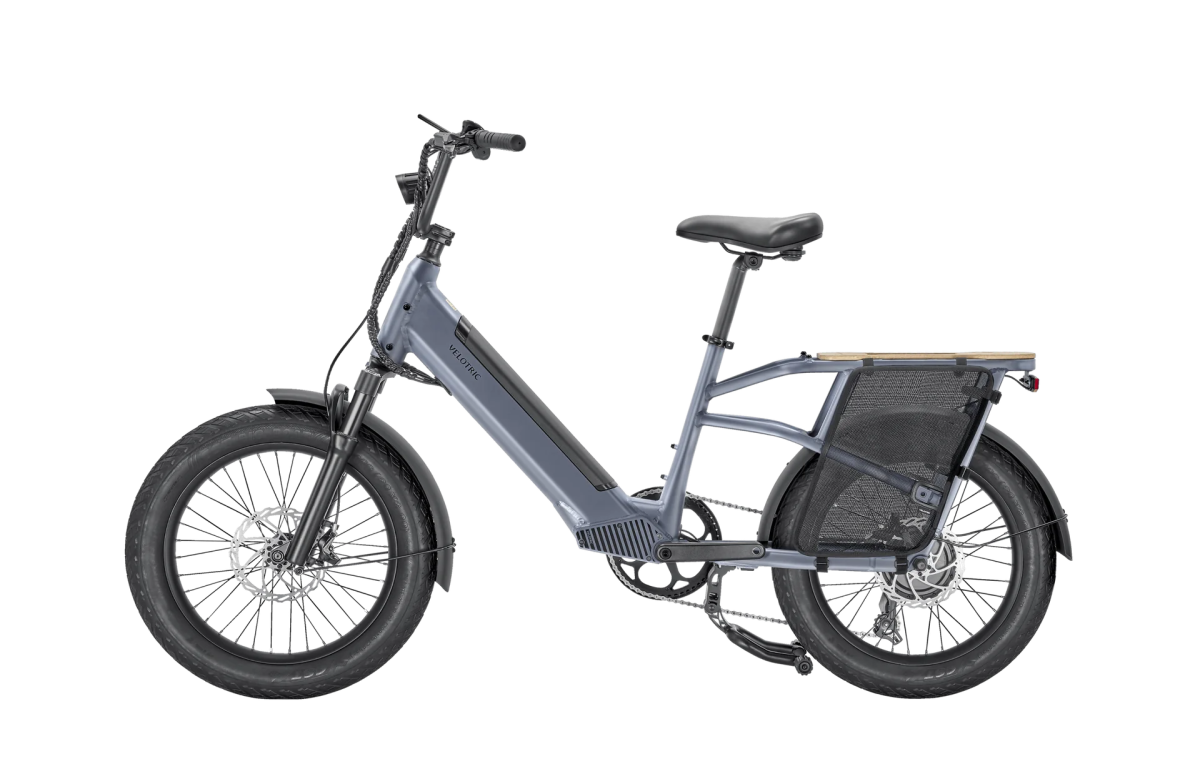

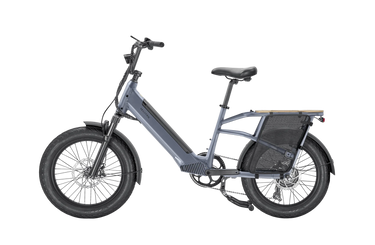

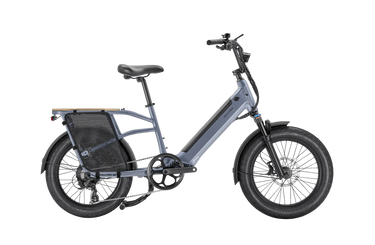

Velotric Go 1 Ebike
Pickup currently unavailable at GC HQ
Features & Details
Velopower H50 Drive System
Top Speed: 25MPH (unlocked) | 20 MPH (default)
Max Range: 55 Miles
Motor: 500W (Peak 900W)
Works with Apple Find My™
UL 2271 and UL 2849 Certified
Battery: 48V 14.4 Ah with LG 21700 Cells
Weight: 65 LBS
Total Payload Capacity: 440 LBS
Rear Cargo Capacity: 120 LBS
Fits Riders: 5’0” - 6’6”
Brakes: 4-piston hydraulic, 180mm rotors
Fork: Hydraulic suspension, 60mm of travel with lockout, 15x110mm Novatec thru-axle
Drivetrain: SHIMANO 7-speed
Frame: 6061 Aluminum, integrated wiring, removable battery
Sensor: Speed
Warranty
2-Year Warranty - our industry-leading 2-year warranty covers all electrical components as well. See details here.
SHIPPING & RETURNS
All products are eligible for return or exchange within 30 days of purchase for items in new, unused condition in their original packaging.
Customers are responsible for return shipping costs. GC may provide a shipping label for returns if requested, and the return shipping cost will be deducted from your return.
Please contact support for assistance with a return authorization by emailing contact@garagecycles.cc.
Always Ready To Go!

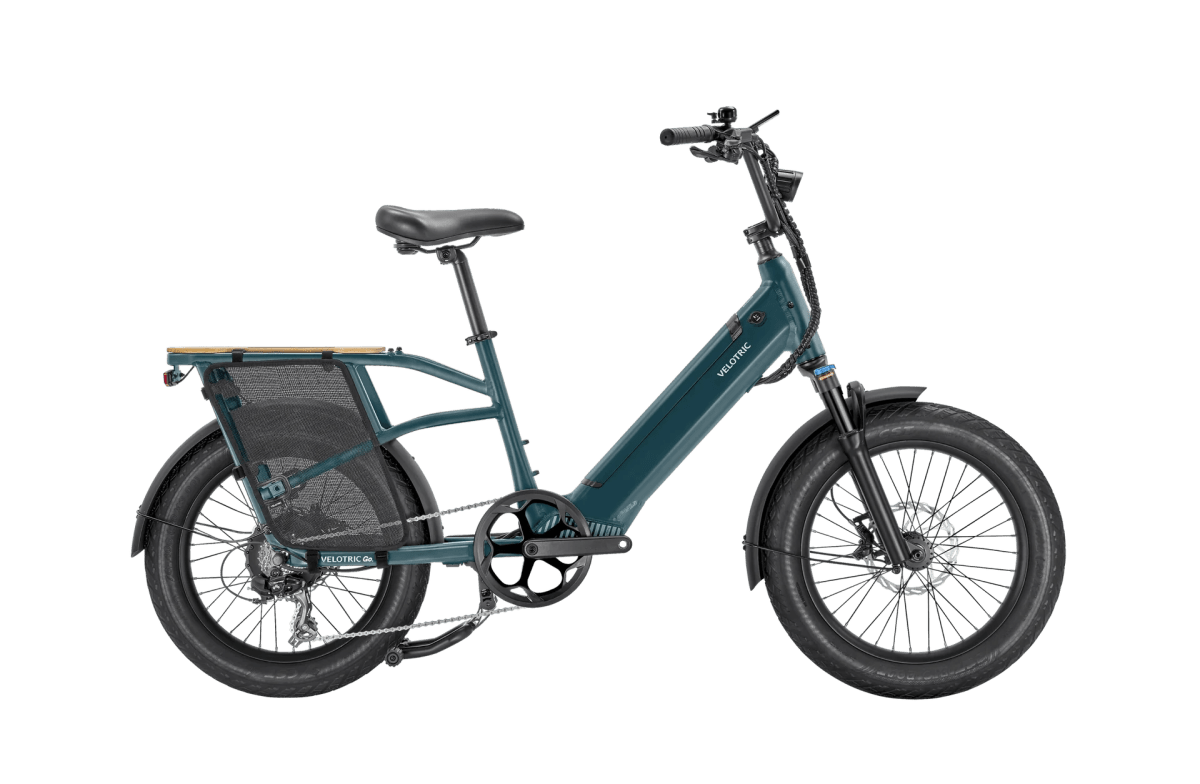

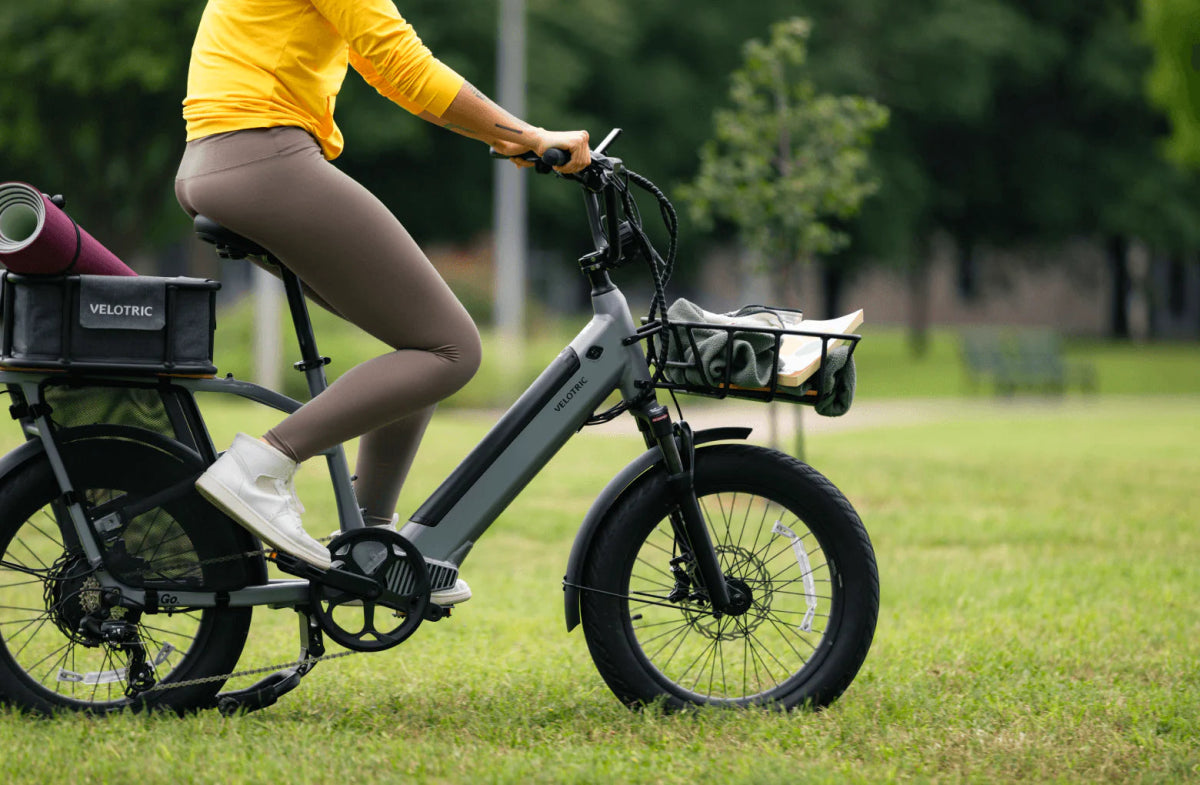

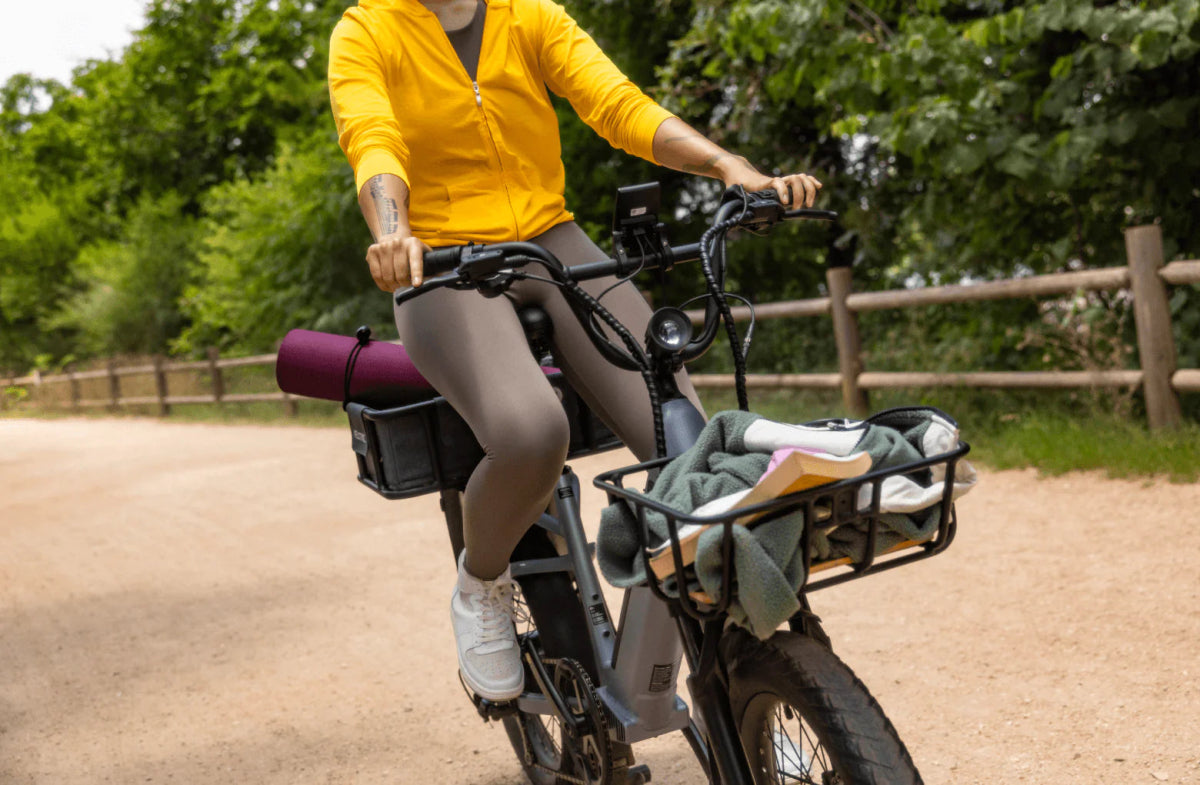

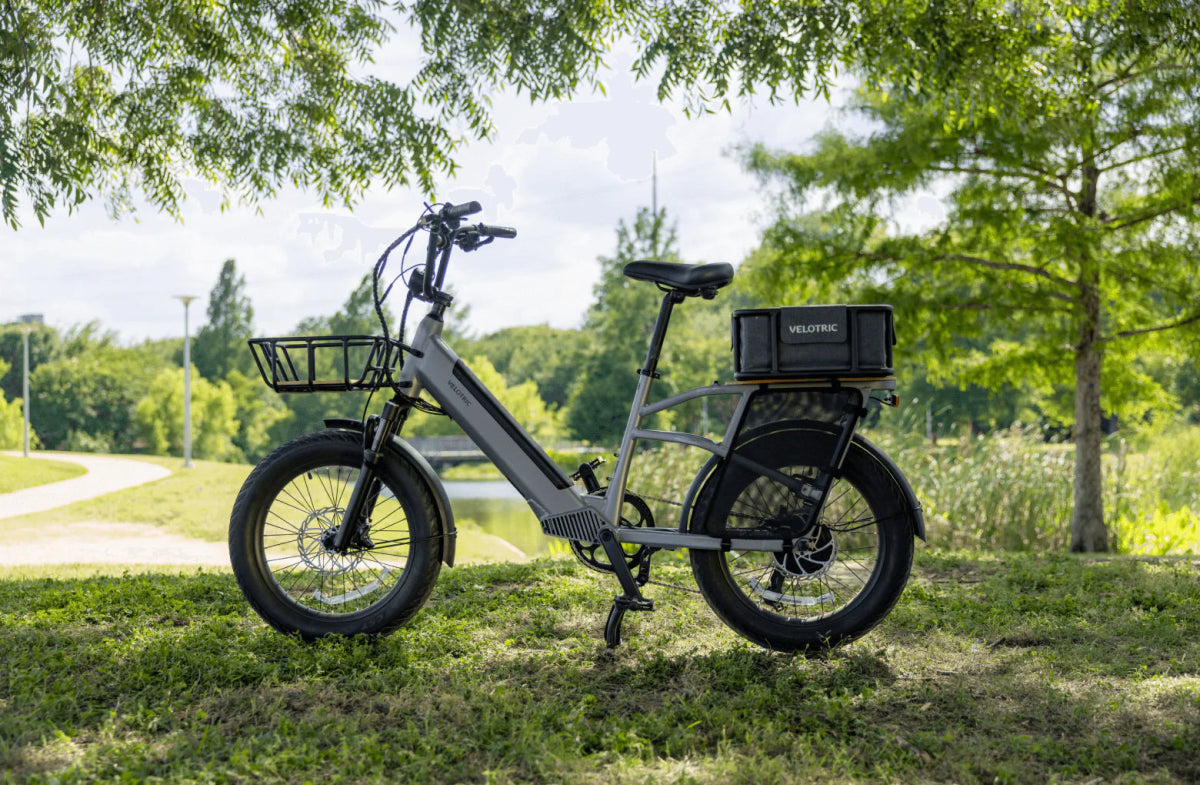

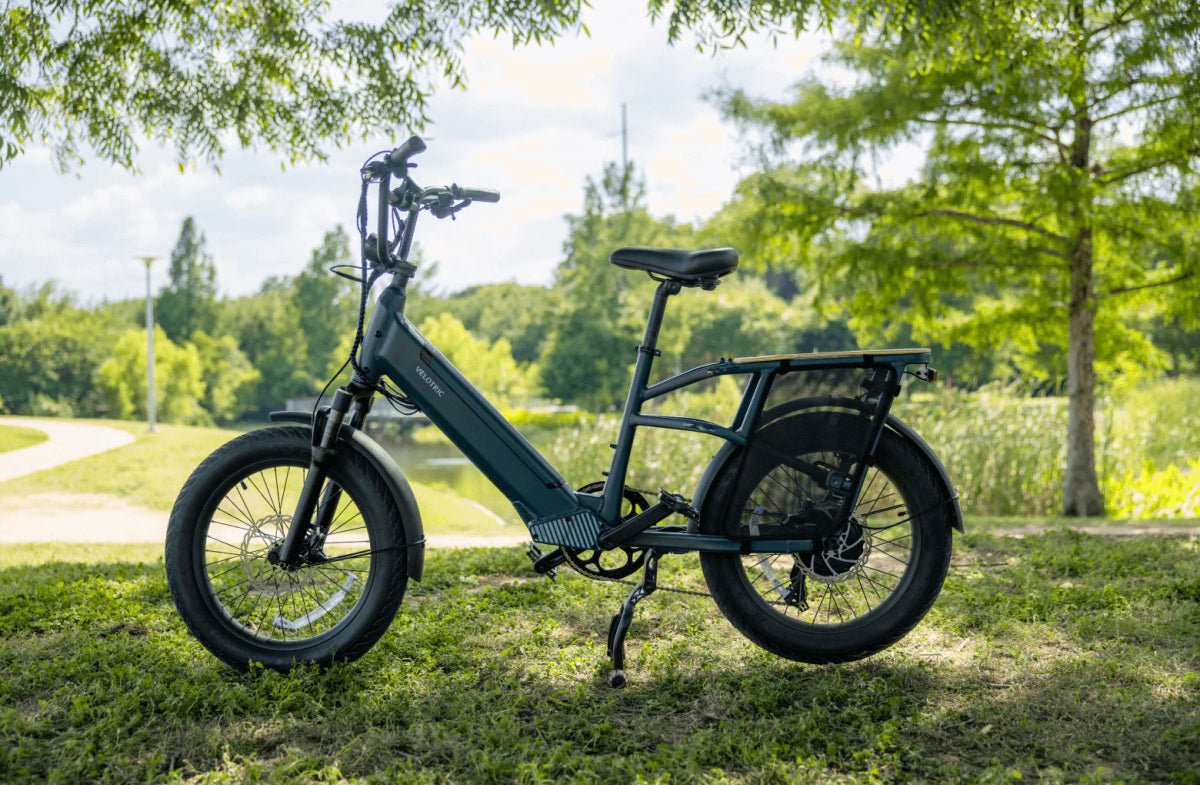

The Velotric Go 1 is small but mighty. Carry up to 440 lbs comfortably with its plush saddle, hydraulic suspension with 60 mm of travel and a frame designed with a lower center of gravity so you can carry it all with ease and comfort.
Jack Of All Trades
With a host of accessories, you can customize the perfect configuration for the Velotric Go 1, so that whether it’s a picnic or a weekend adventure, you and your bike are ready to go!
Velopower H50 Optimized For Everyday Utility
Powered by our proprietary Velopower H50 Drive System, ensuring the maximum efficiency and power. Ride up to 55 miles on pedal-assisted fun, up to 25 MPH (unlocked) with our 500W (peak 900W) motor.
Safety First
Velotric bikes are always built with safety in mind. Velotric Go 1 goes through a series of stringent safety tests and is IPX6 rated, ISO4210 compliant, UL 2271 Recognized and UL 2849 Certified.
Specification & Geometry
Frameset

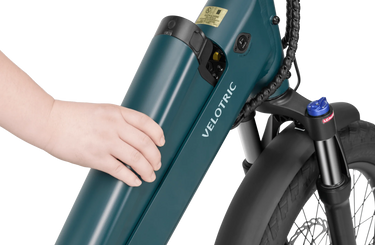

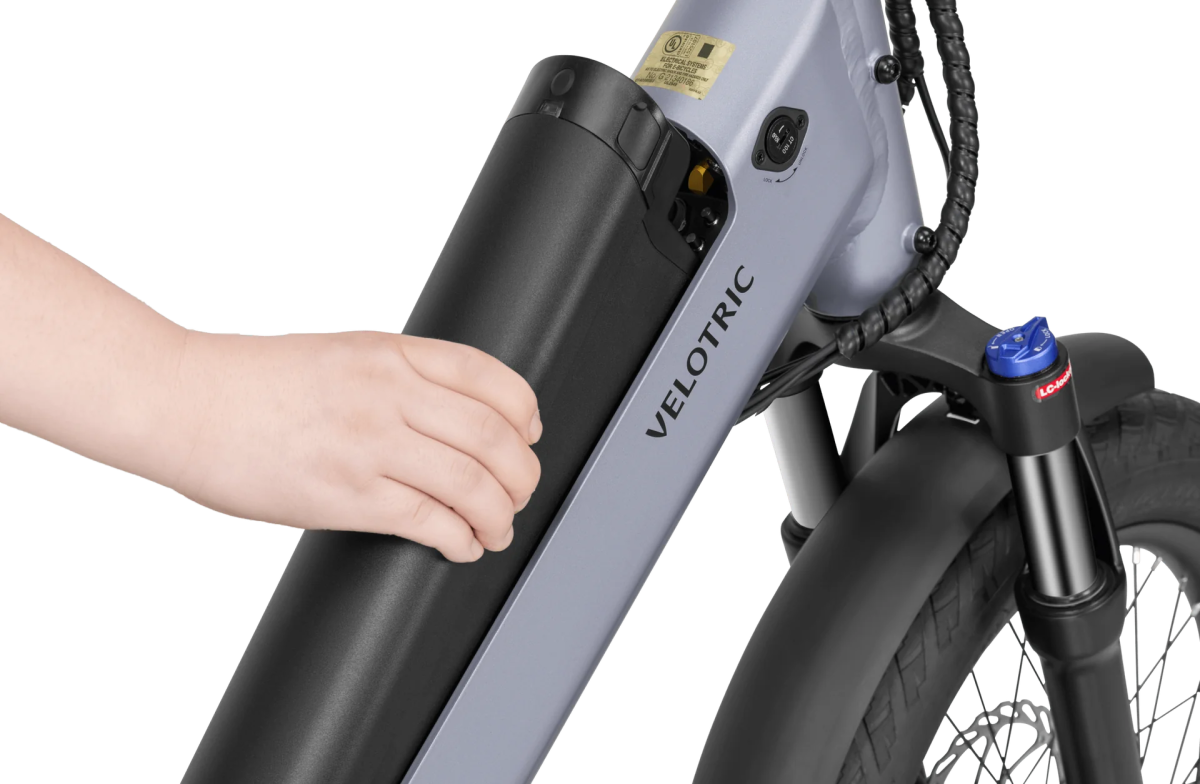

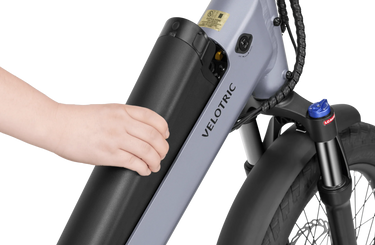

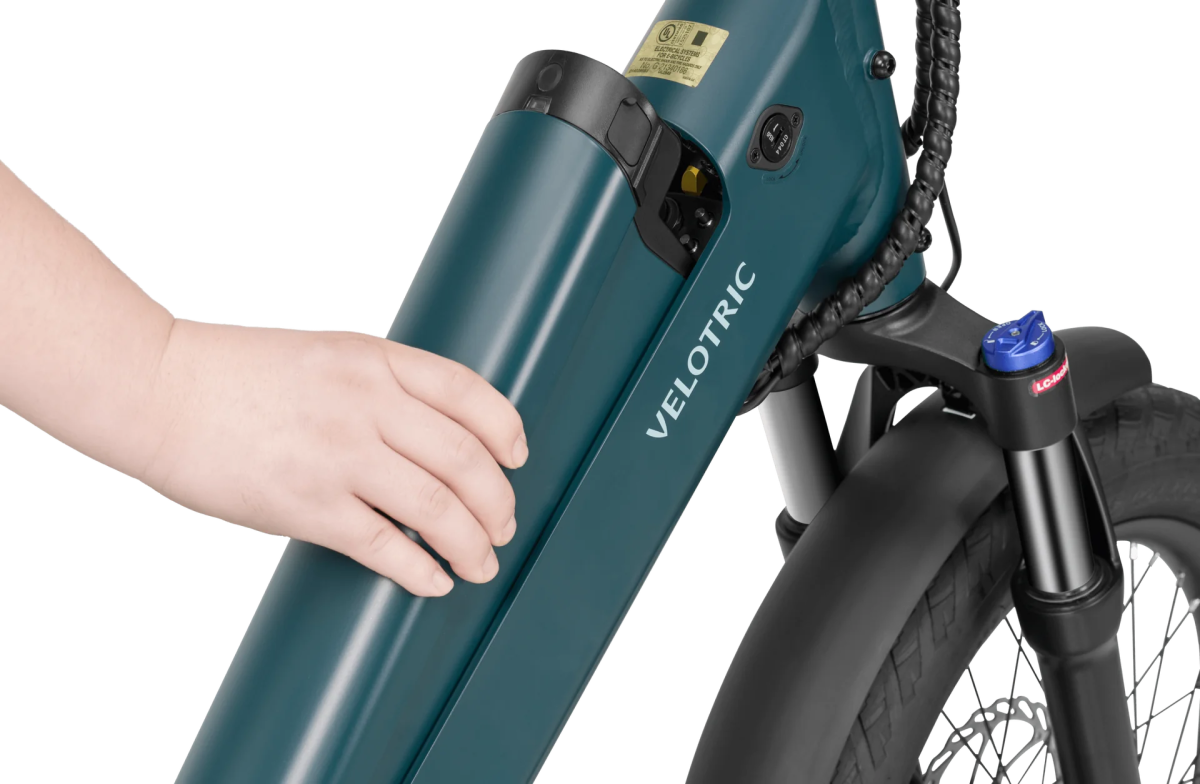

Frame: Aluminum alloy, fully integrated & lockable down tube battery, internal cable routing, front and rear fenders
Fork: Hydraulic suspension with 60mm travel, 15x110mm thru-axle, with Lock-out
Speed & Range
*A 176-lb rider using PAS 1.
Default Speed: 20 MPH, Class 2
Max Speed (Unlock): 25 MPH
Throttle Range: Up to 48 miles
Pedal Assist Range: Up to 55 miles
Hill Grade: Throttle only: 8° (14%)Pedal Assist: 10° (18%)
Brake
Brake: Hydraulic Disc Brake 4-Piston
Rotors: 180mm front and rear
Brake Levers: Aluminum Alloy, with adjustable reach and power cutoff switch
Brake
Rims: Double-wall Aluminum Alloy
Front Hub: NOVATEC Aluminum Alloy, 15x110mm thru-axle
Tire: Kenda 27.5x2.4" eBike puncture resistant tires

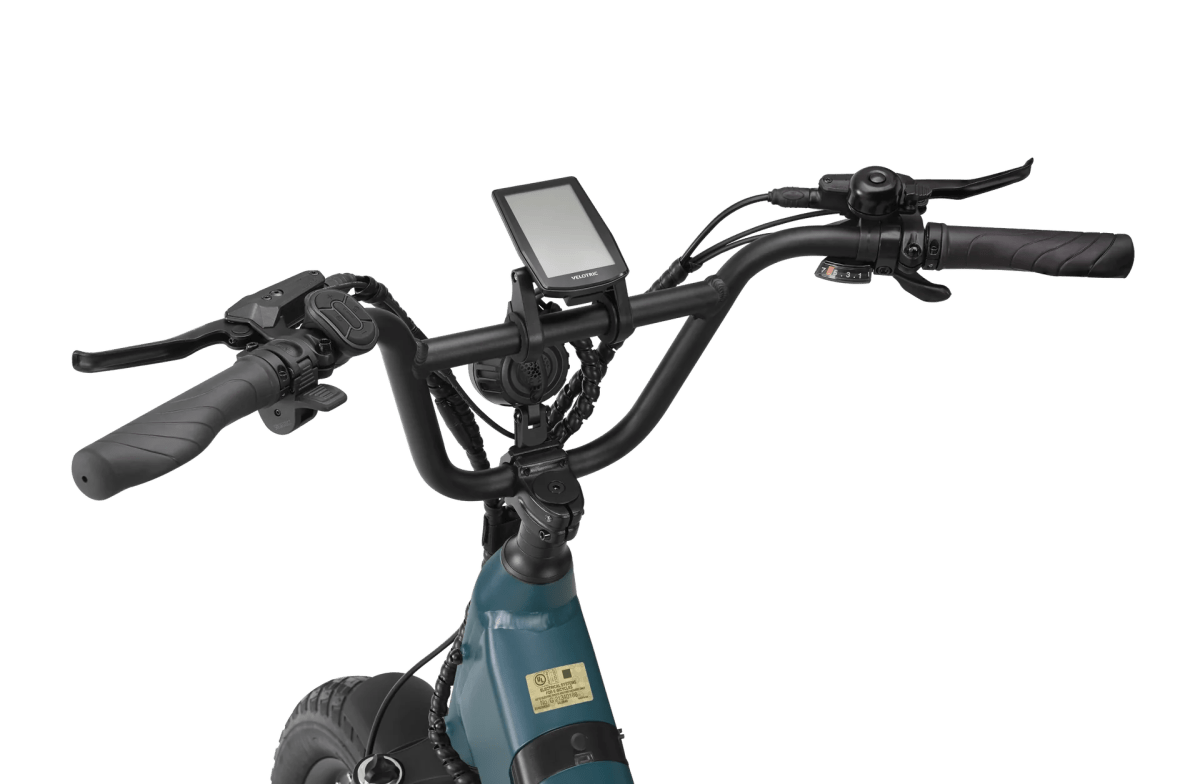

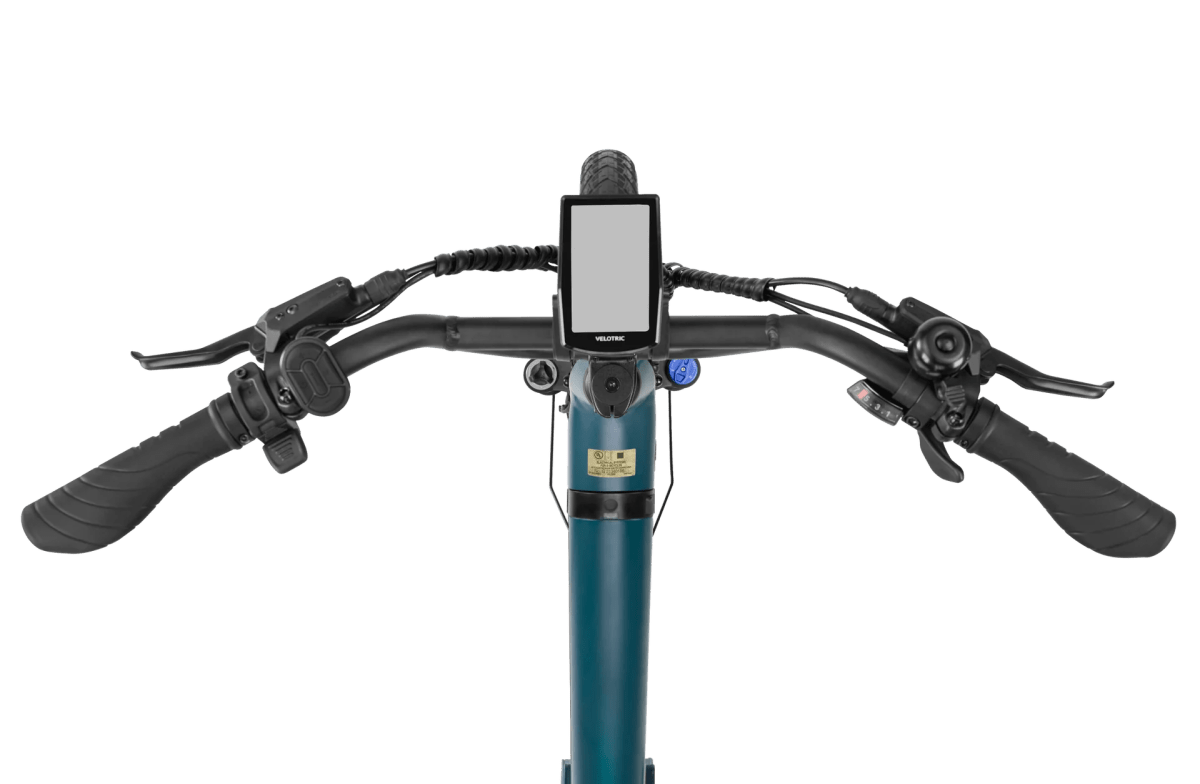

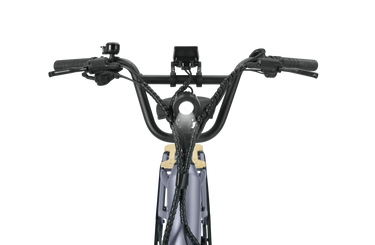

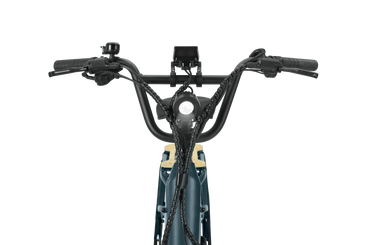

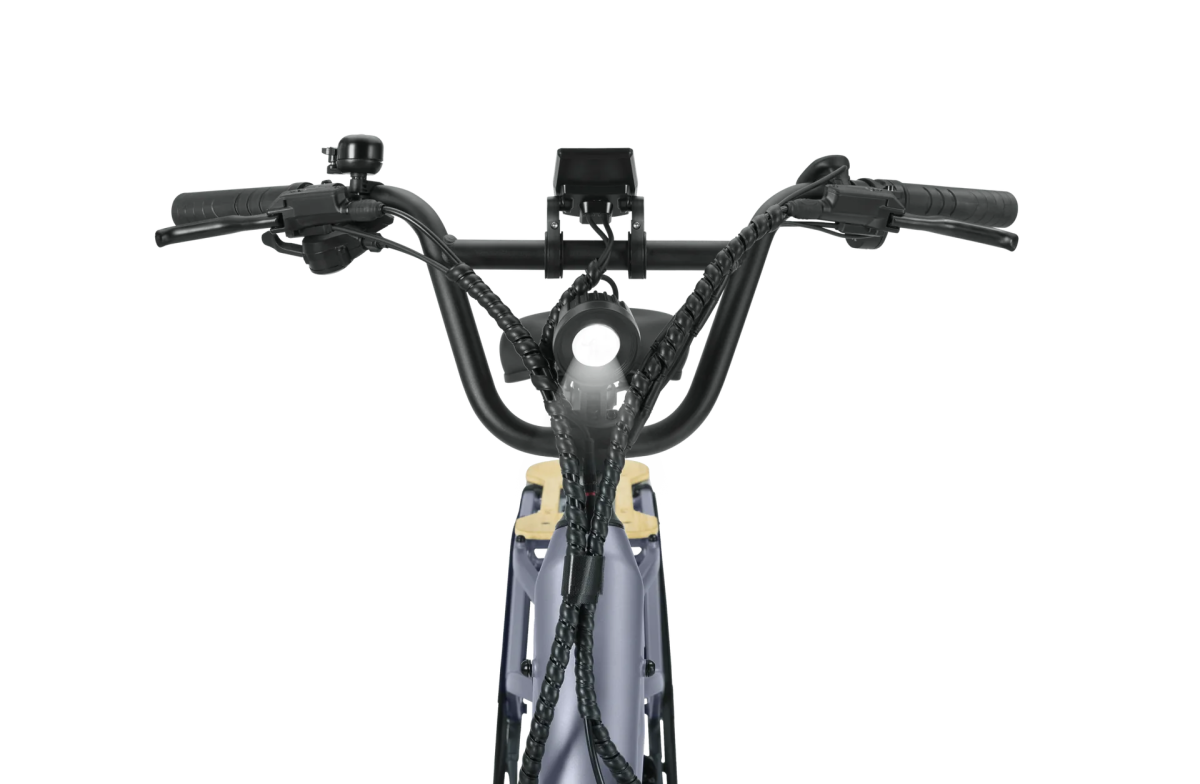

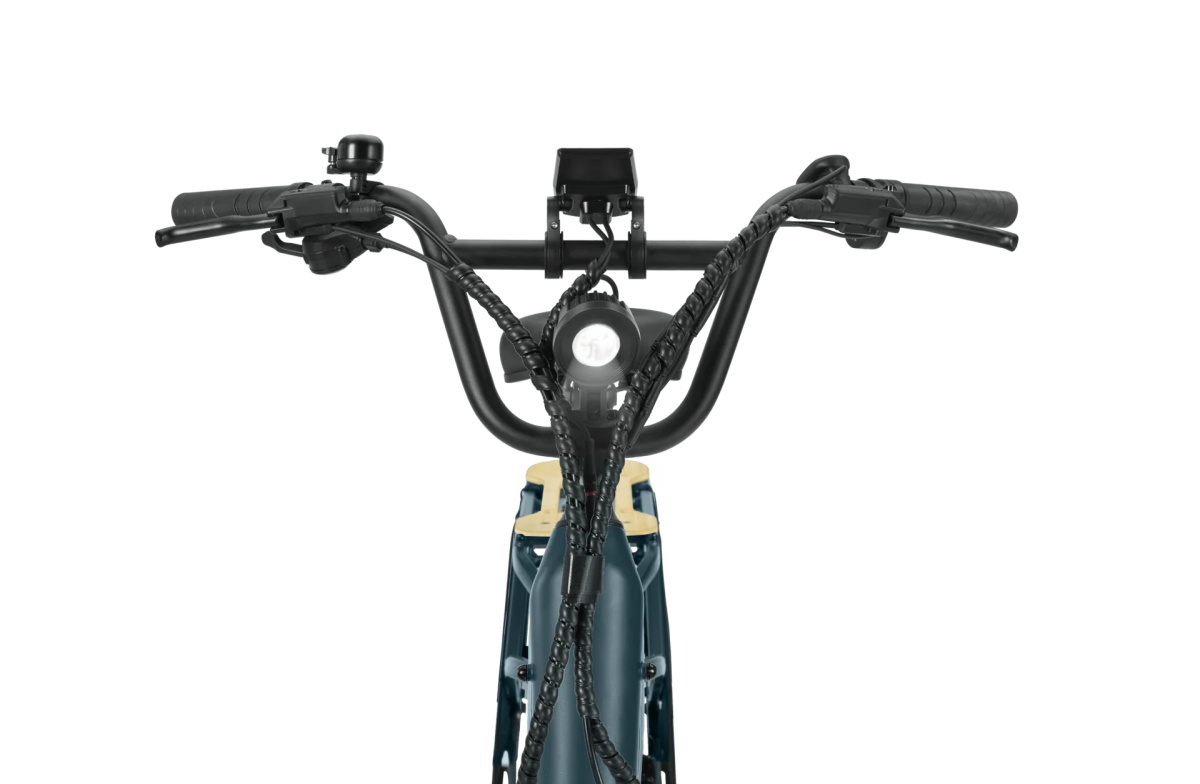

Cockpit
Handlebars: 6061 Aluminum alloy, Φ25.4mm, 660mm
Grips: Durable ergonomic grips
Stem: 6061 Aluminum alloy, 3D-forged alloy, 25.4mm clamp, 50mm length
Saddle: VELOTRIC urban comfort ergonomic seat
Seat Post: 6061 Aluminum alloy, 30.4 x 400mm, quick release clamp
Weight & Load
Bike Weight: 65lbs (29.4kg)

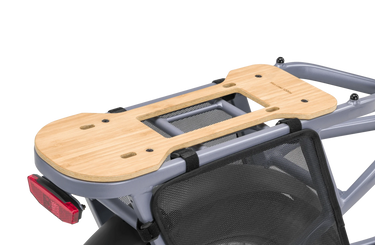

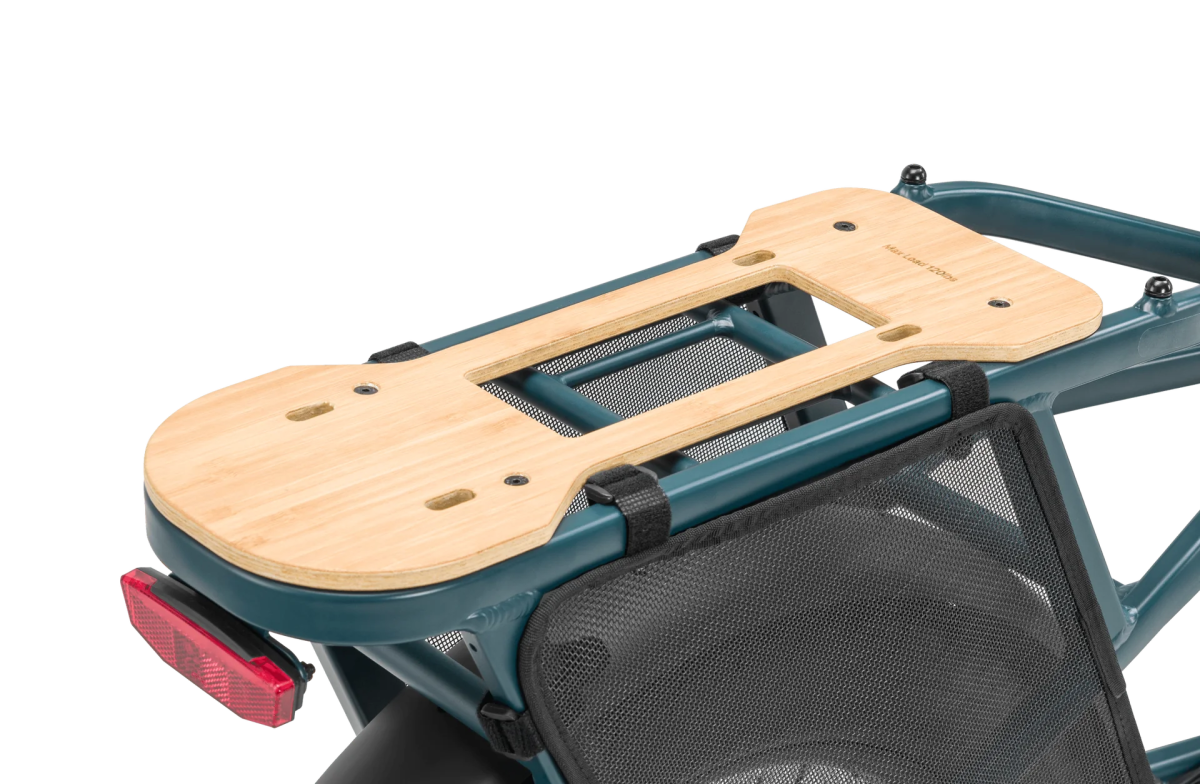

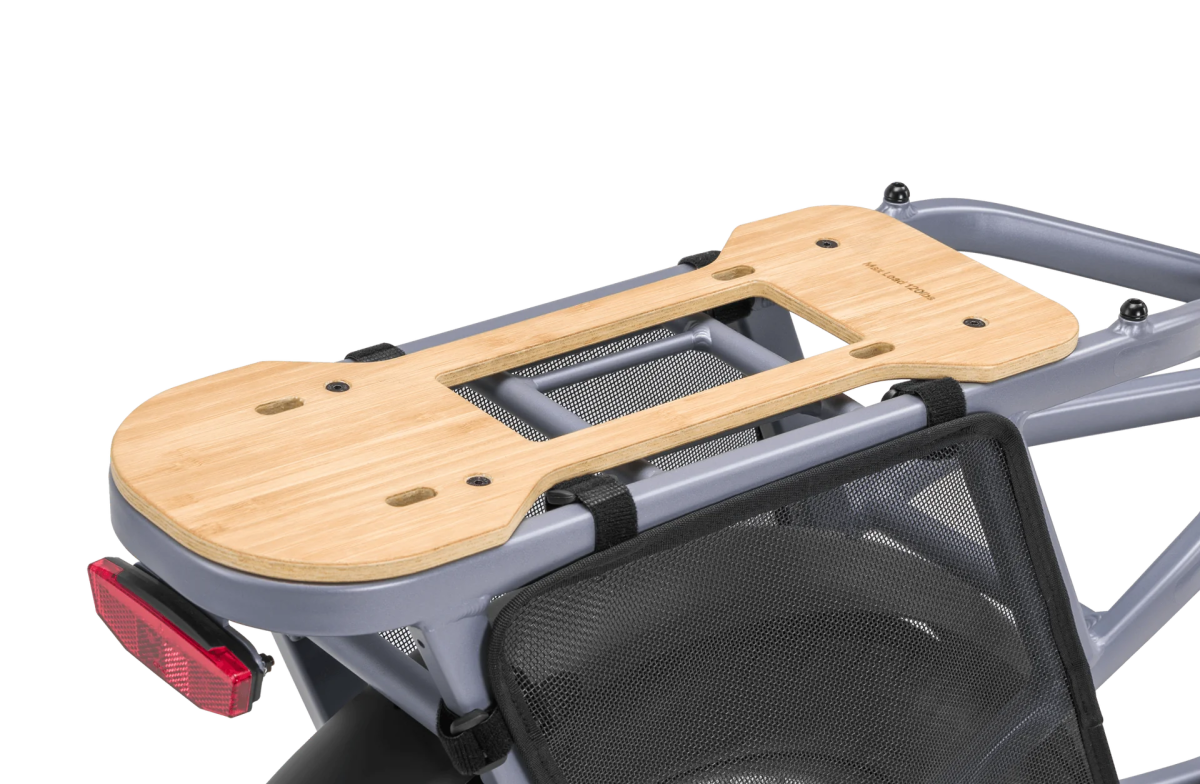

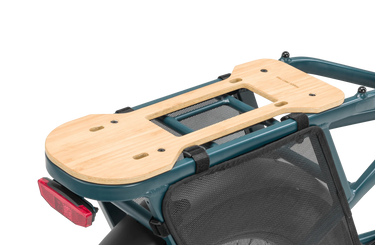

Rear Rack Load Capacity: 120lbs (54kg)
Max Bike Load: 440lbs
Electronics

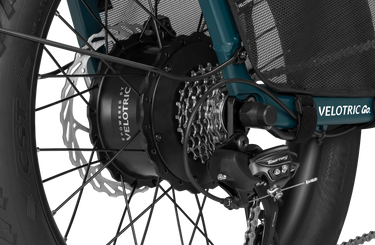

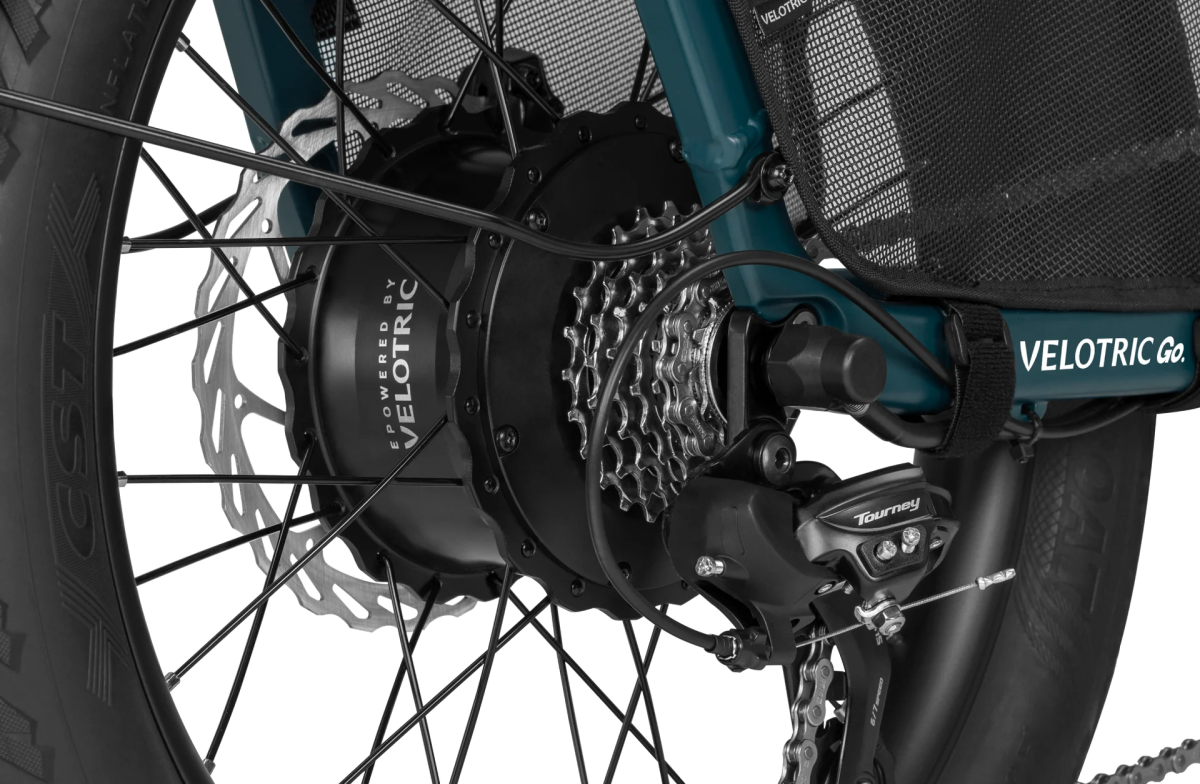

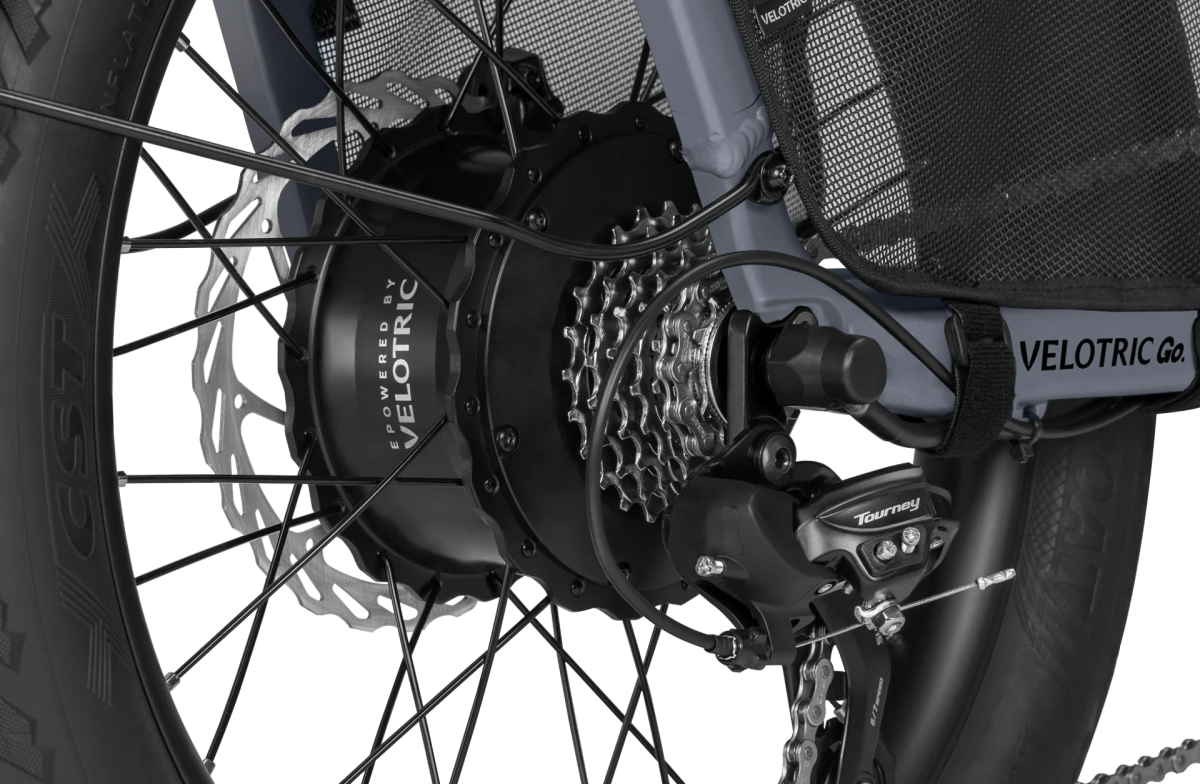

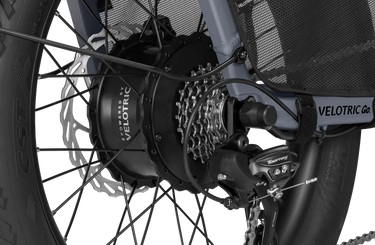

Motor Hub: 500W (Peak 900W), 65Nm
Battery: 48V, 14.4Ah, 691.2Wh
Cell: LG 21700
Charger: 48V, 3A, Operates on 100V-240V AC, 50-60Hz
Charging Time: 0-80% 4 Hours, 0-100% 6 Hours
Sensor: Cadence sensor

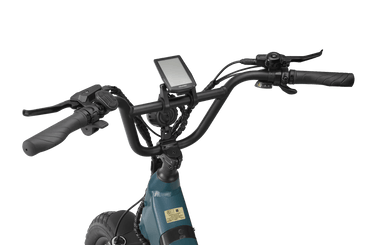

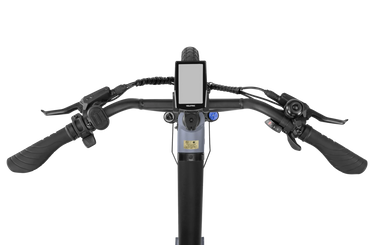

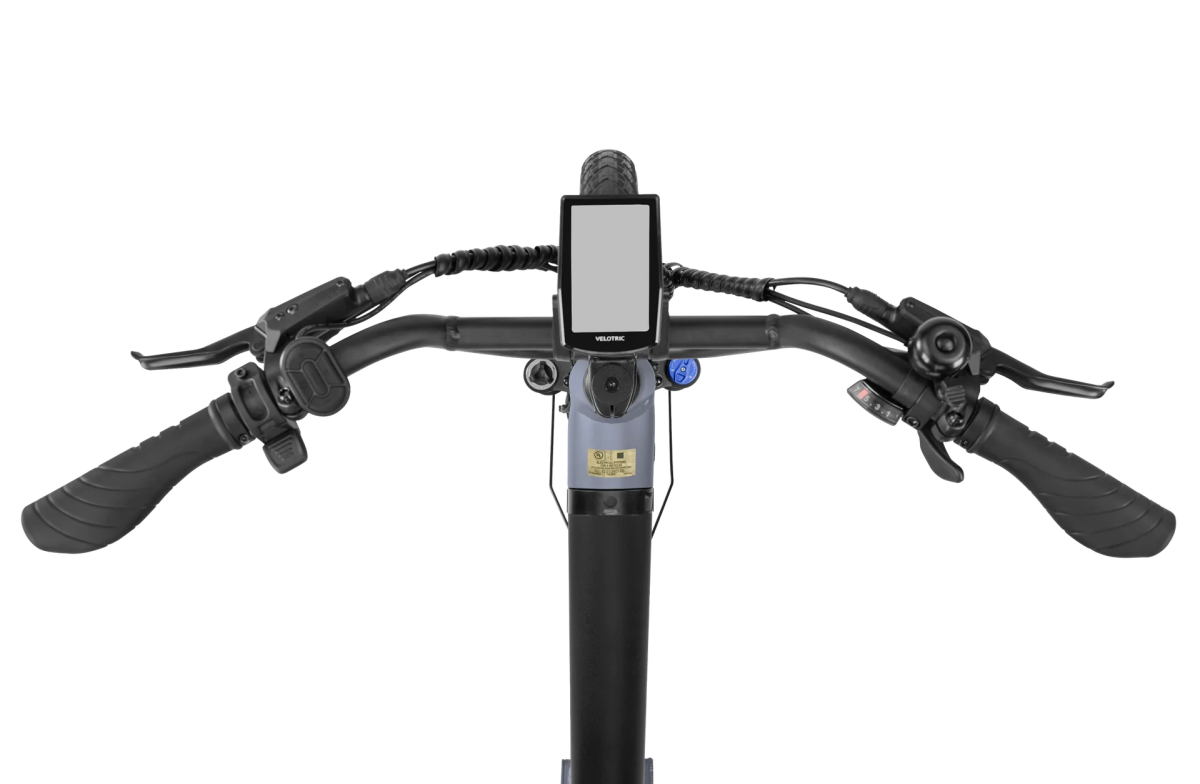

Display: 3.5" Backlit LCD display with speed, trip, battery, assist Level and more
Security: Apple Find My™
USB Port: 5V 500mA, output for external devices
Throttle Assist: Thumb-control, removable
Headlight: 12V/5W/130 Lux high-output integrated LED, 130lux, Adjustable angle
Tail Light: Integrated with rear rack, brake highlight
Pedal Assist: Eco, Tour, Normal, Sport and Turbo pedal assist
Walk Mode: 2.9 MPH
Water Resistant: IPX6
Drivetrain
Chainrings: 52T
Crankset: Aluminum alloy, 170mm
Cassette: 7-speed, 13-34T
Rear Derailleur: SHIMANO TY300-7
Shift Lever: SHIMANO M315-7
Chain: KMC Z7
Wheel
Rims: Double-wall Aluminum alloy, 20" disc × 36 hole
Front Hub: NOVATEC Aluminum alloy J-hook disc hub,15x110mm thru-axle
Tire: CST 20x3.0" Ebike puncture resistant tires
Supports
Fenders: Front and rear full coverage
Pedals: Plastic
Kickstand: Aluminum alloy, dual leg, spring loaded, center mount
