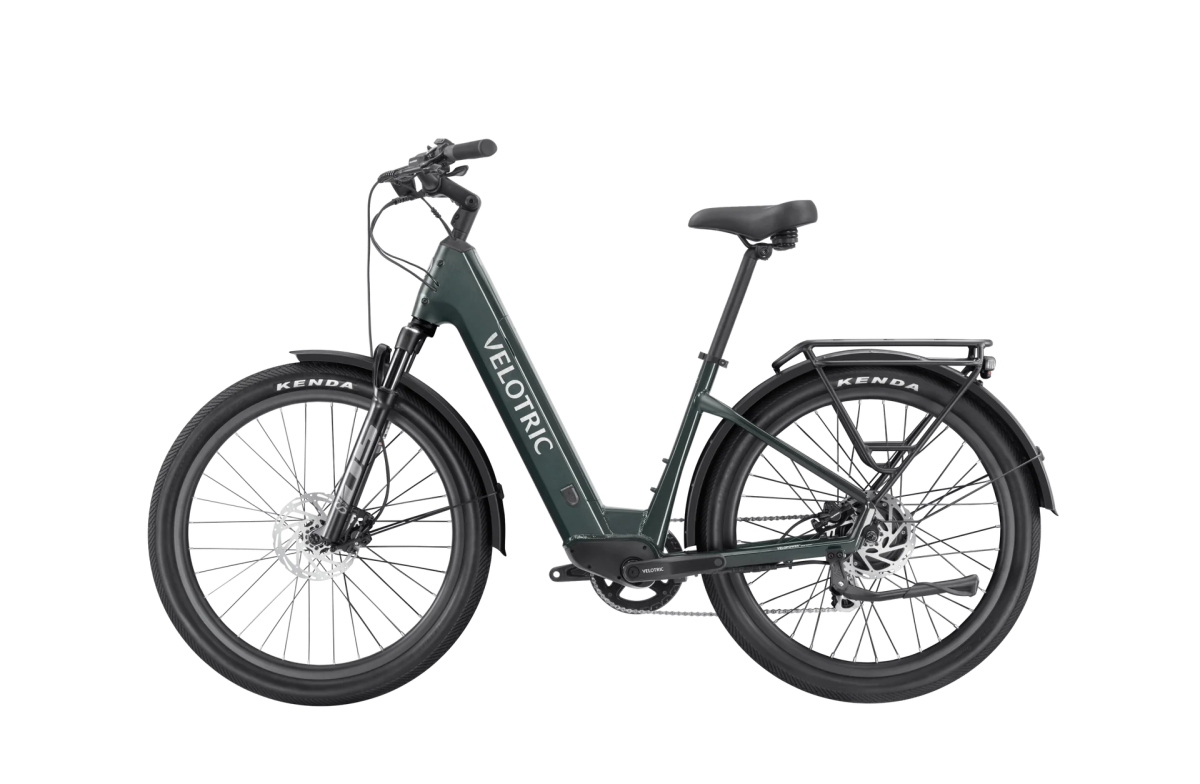

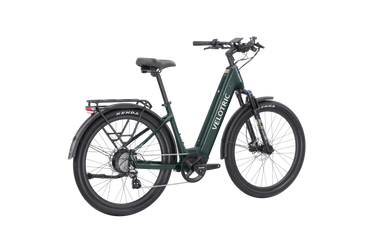

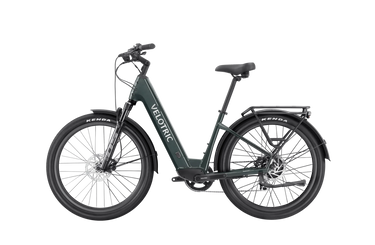

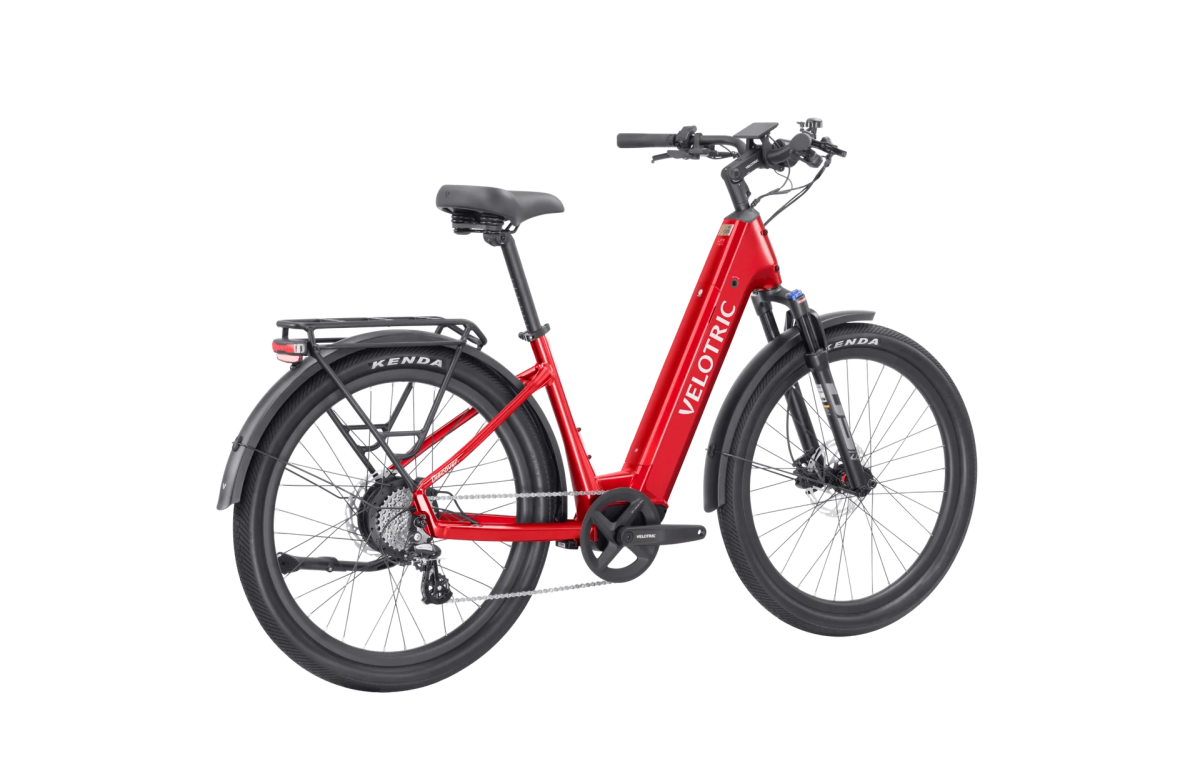

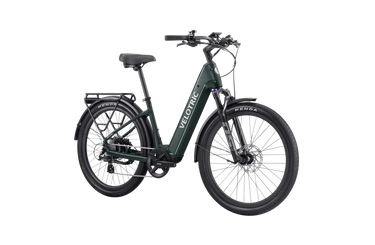

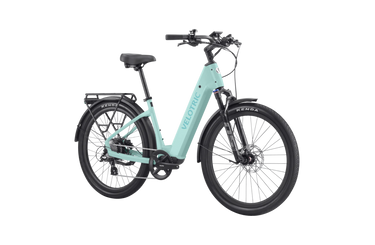

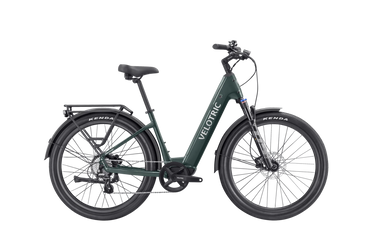

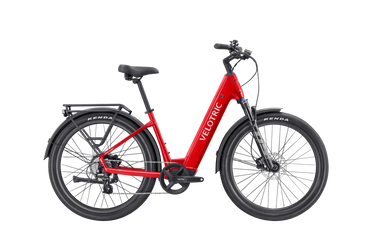

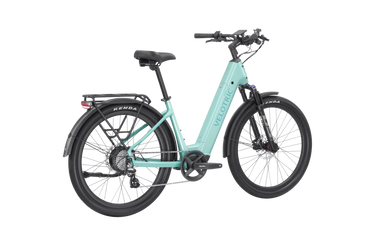

Velotric Discover 2 Ebike
Pickup currently unavailable at GC HQ
What's in the Box

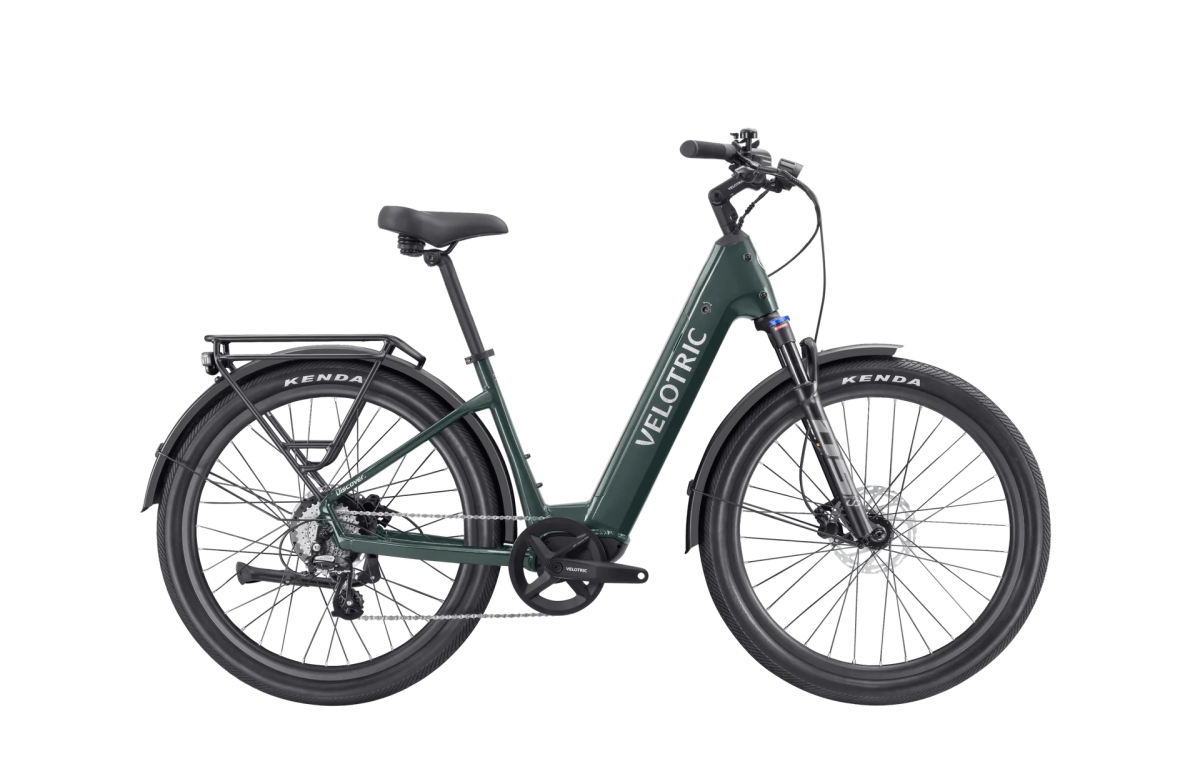

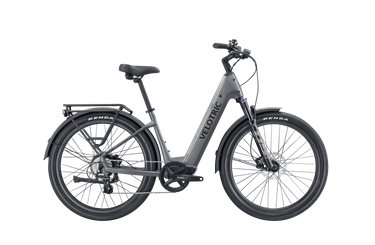

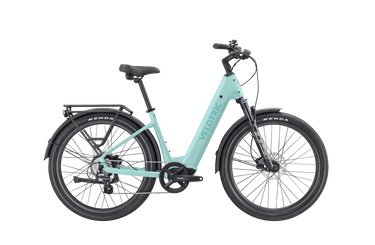

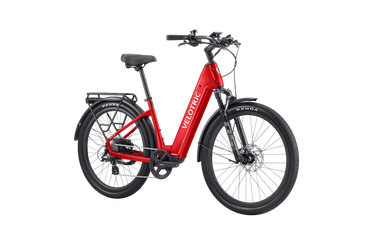

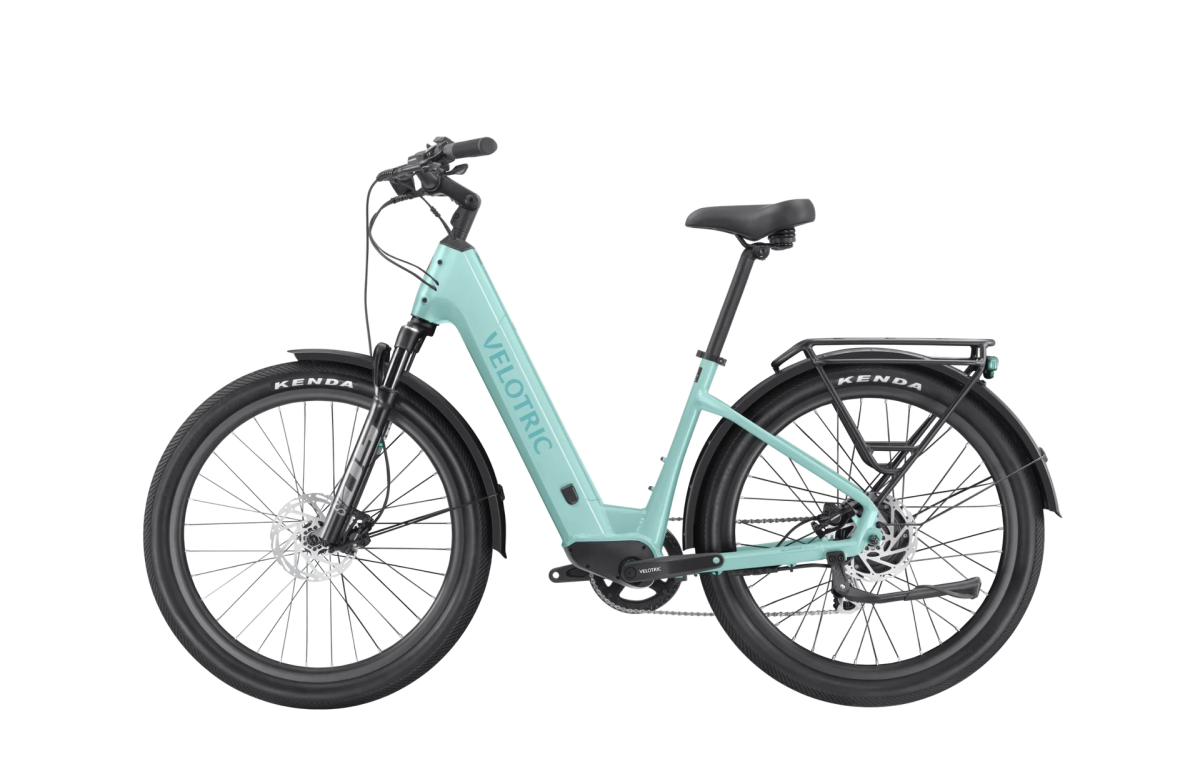

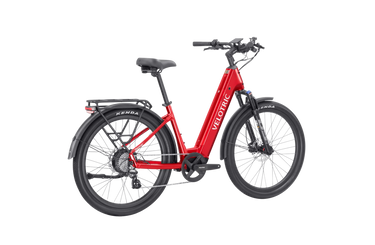

Velotric Discover 2 Ebike
Manual & App Guide
Toolkit to help you assemble the bike

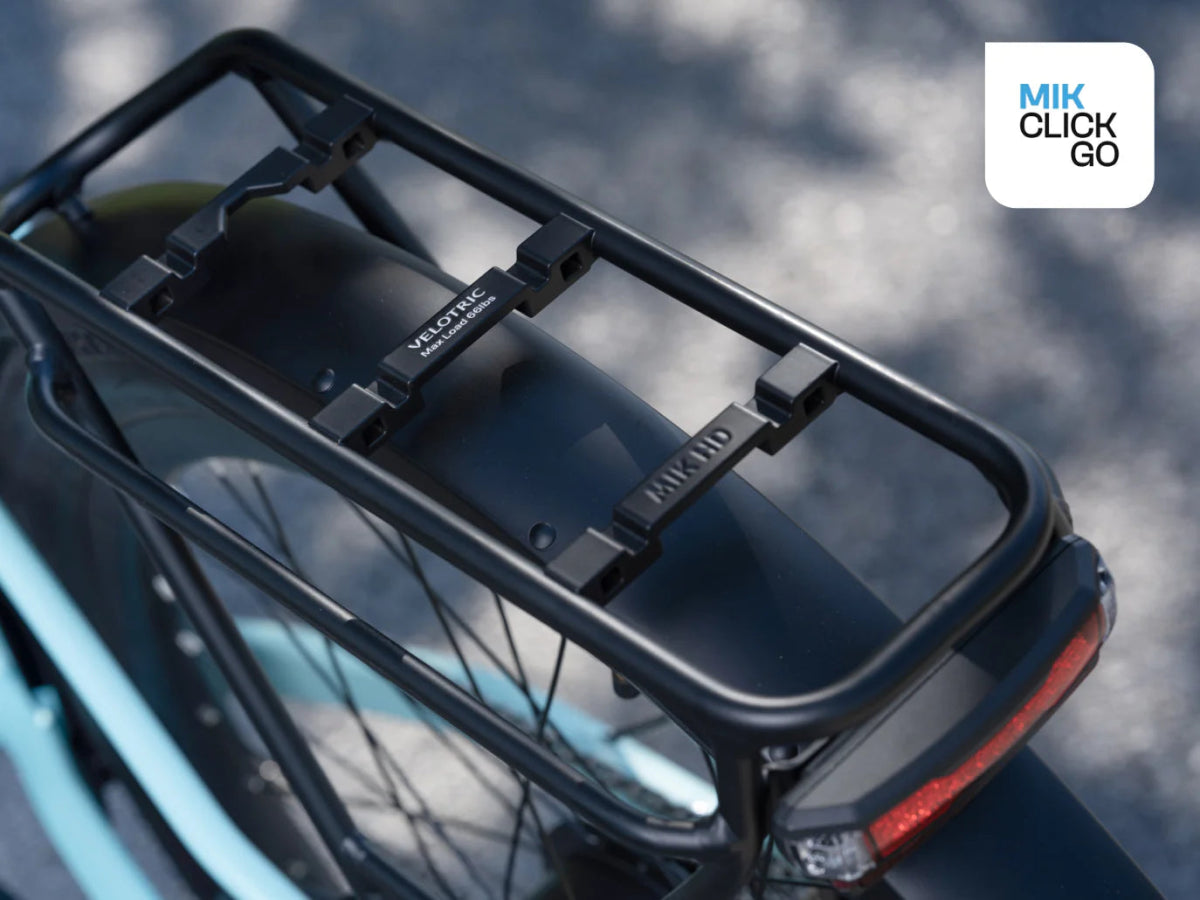

Battery, Charger, Front Light, Display, Front & Rear Fenders, Rear Rack, Front & Rear Reflectors, Bell, Cable Binder, Bike Kickstand and Left & Right Pedals
Warranty
2 Years Warranty - our industry-leading 2 years warranty covers all electrical components as well. See details here.
SHIPPING & RETURNS
All products are eligible for return or exchange within 30 days of purchase for items in new, unused condition in their original packaging.
Customers are responsible for return shipping costs. GC may provide a shipping label for returns if requested, and the return shipping cost will be deducted from your return.
Please contact support for assistance with a return authorization by emailing contact@garagecycles.cc.
Designed for Comfort, Perfect for Commuting.

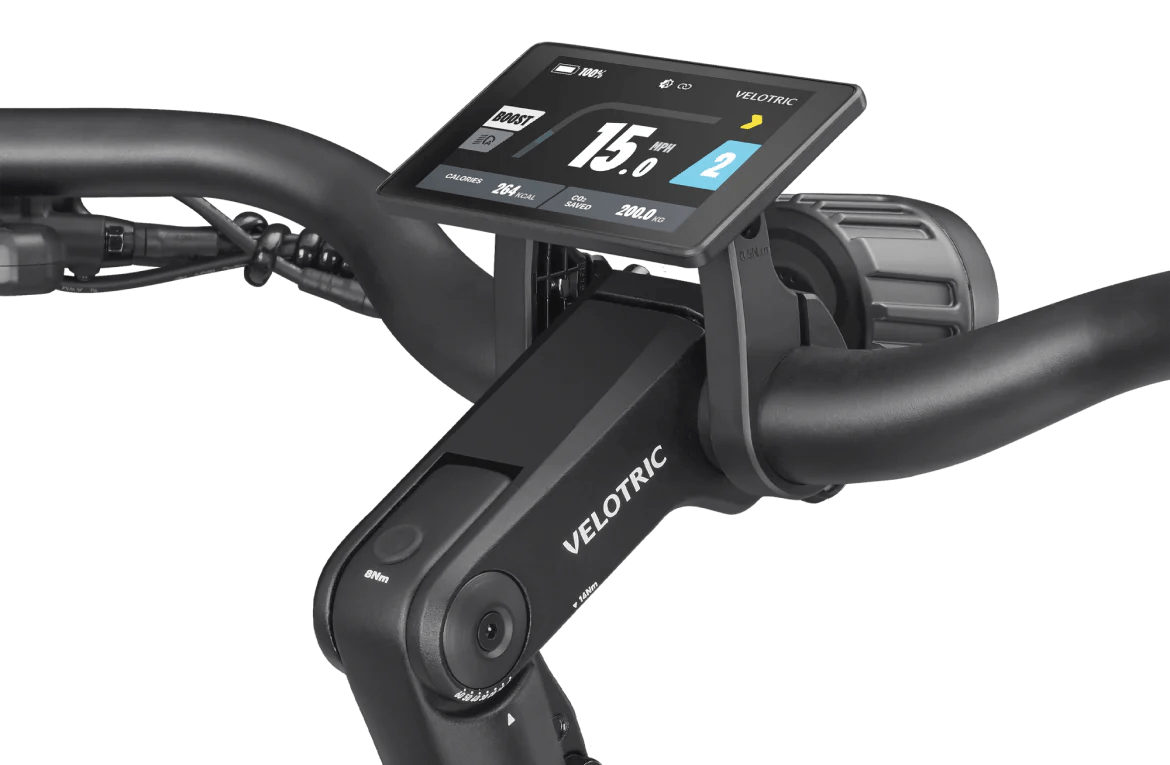

Adjustable Handlebar Stem
Find your perfect riding posture for comfort or speed with the handlebar stem that can adjust up to 60 degrees.
High Capacity Battery
Discover 1 Plus is equipped with a high-capacity battery using LG cells, offering a range of up to 65 miles. It has also passed UL2271 certification, ensuring your safety.
Powerful Uphill Performance
Not all motors are created equal. Discover 1 Plus has a 500W sustained, 900W peak motor that can output 65Nm of torque, which means it can easily climb hills up to 8 degrees slope with ease.
80mm Suspension Fork
Discover 1 Plus is equipped with a suspension fork with 80mm of travel for maximum comfort. It is also equipped with a lockout feature so you can customize the feel of your ride on the road.

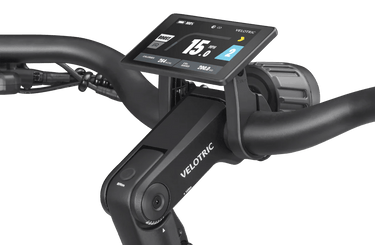

LCD Display with USB port
LCD Display with USB PortEasily check your speed, battery, and pedal assist on the large LCD display, visible even in bright sunlight with polarized sunglasses. Plus, charge your phone via the USB port if needed!
180mm Hydraulic Disc Brakes
100mm Hydraulic Brakes:The Discover 1 Plus features 180mm hydraulic disc brakes for excellent braking performance, essential for Ebikes. They're also low-maintenance, so you can enjoy more rides and spend less time at the bike shop!
Colorful Design for your stylish ride

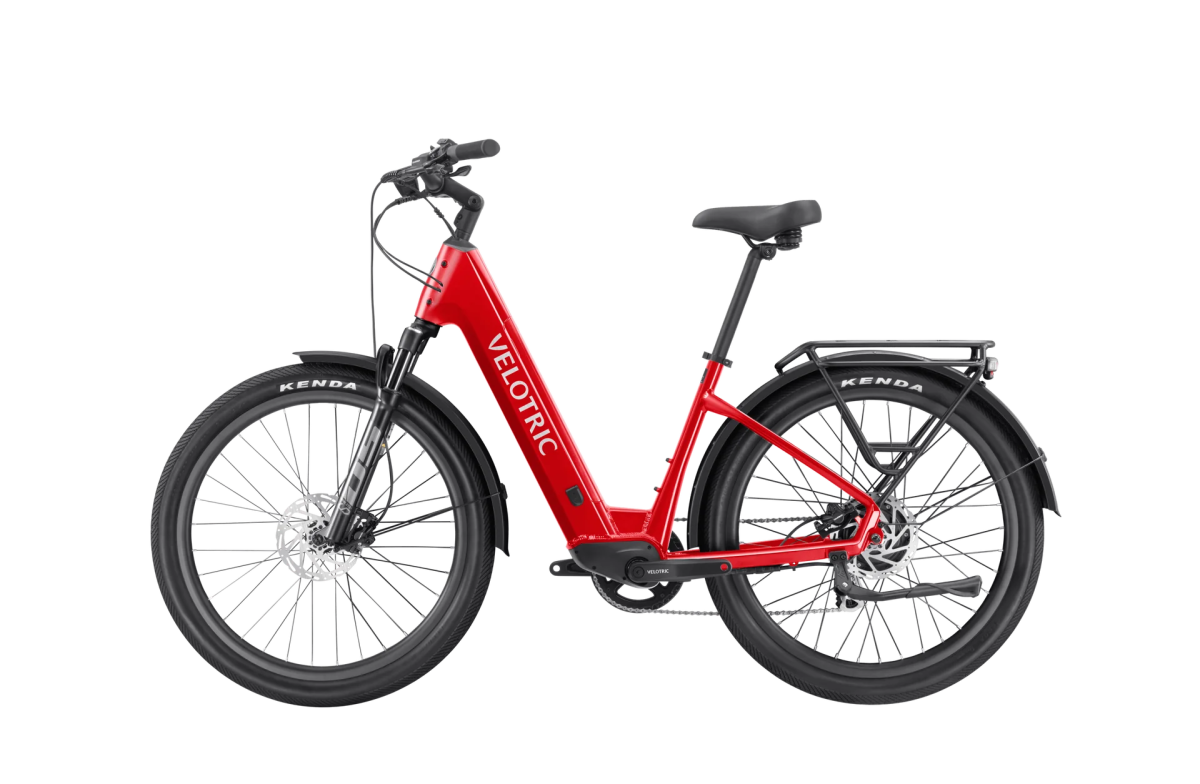

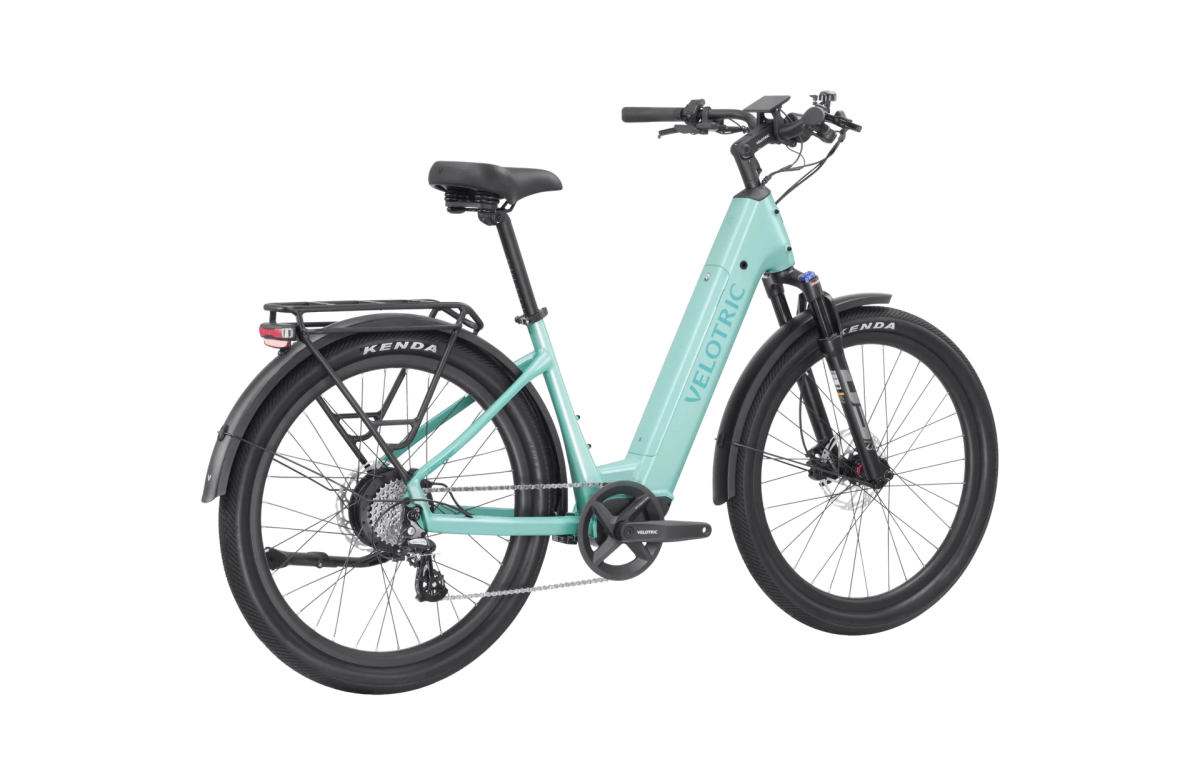

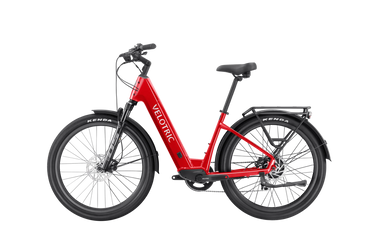

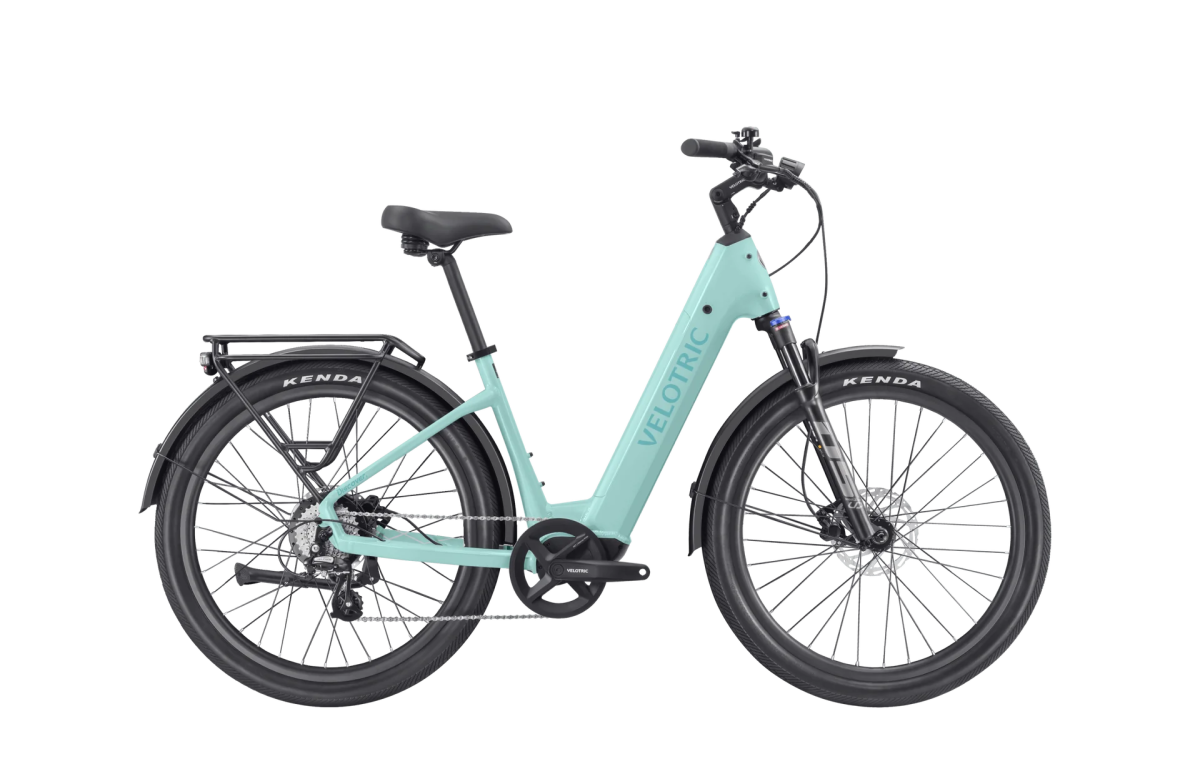

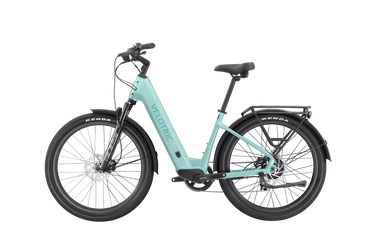

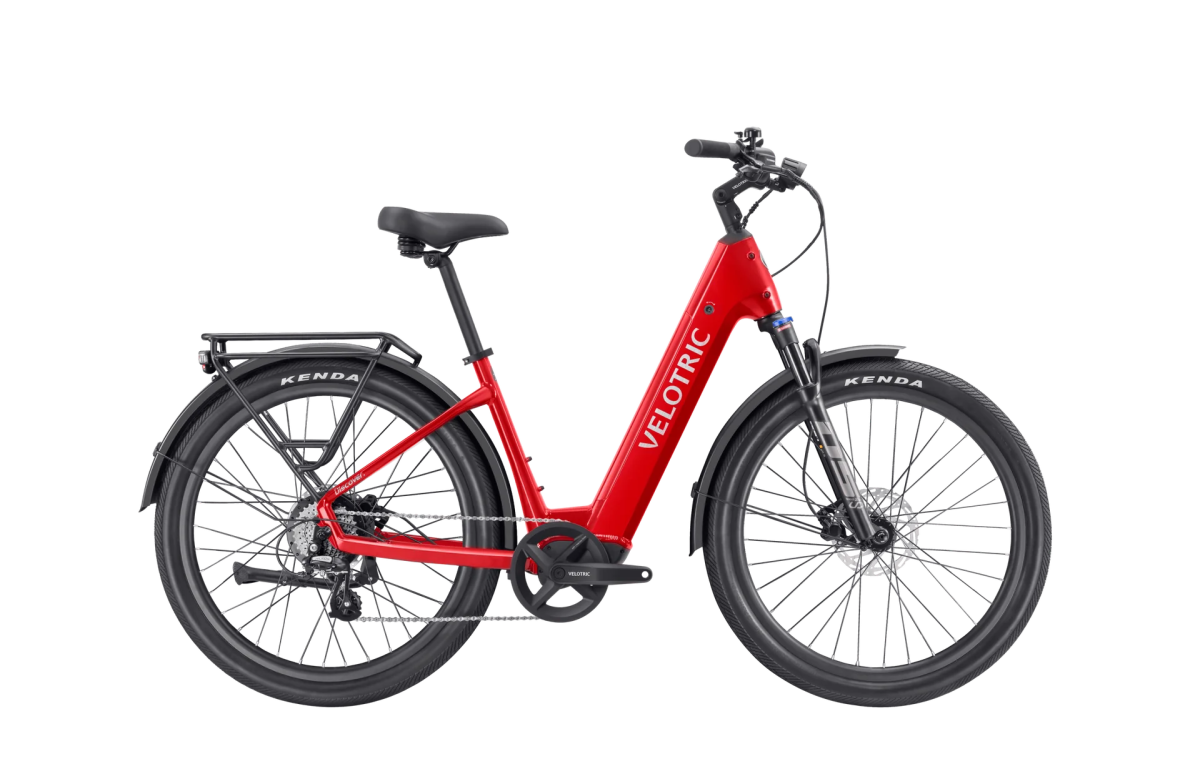

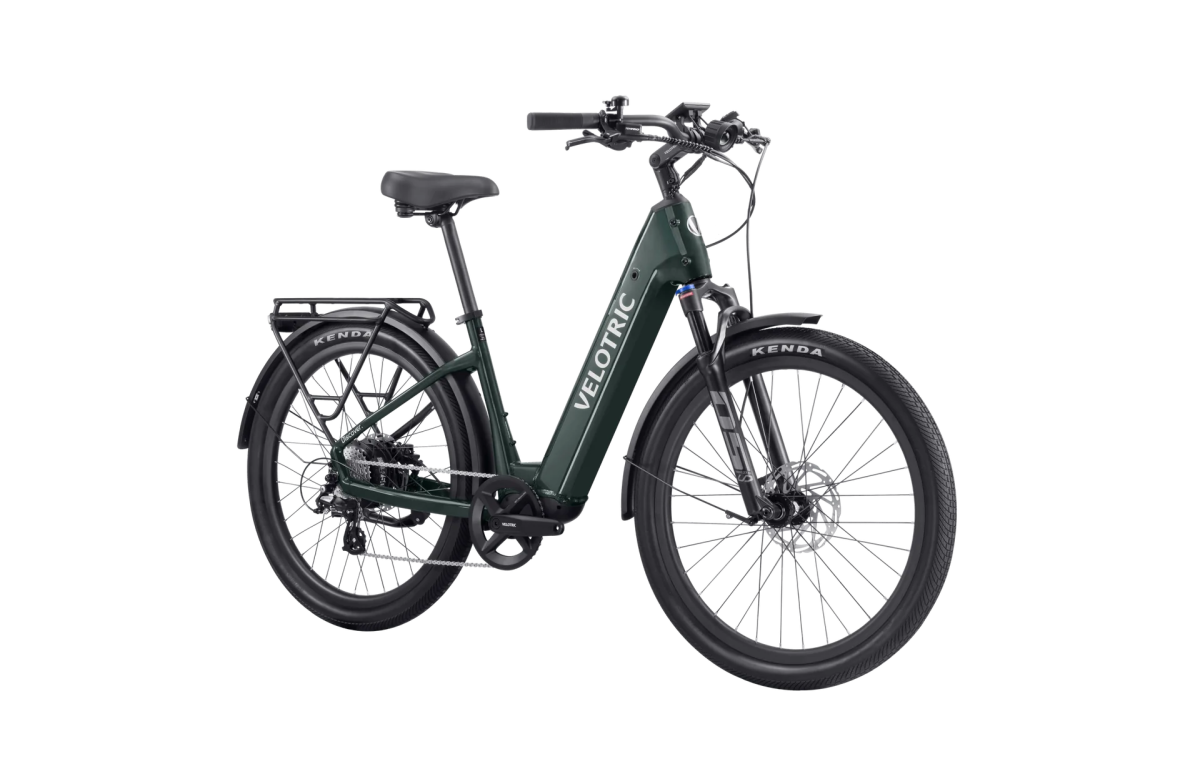

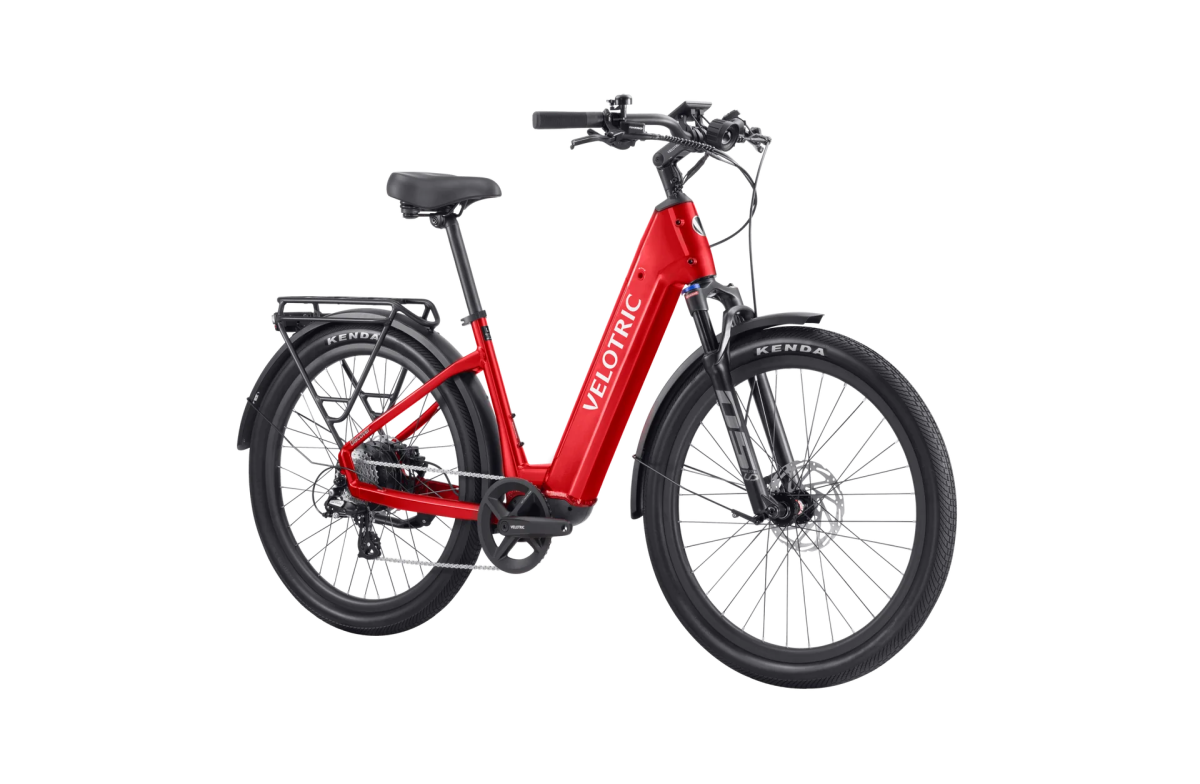

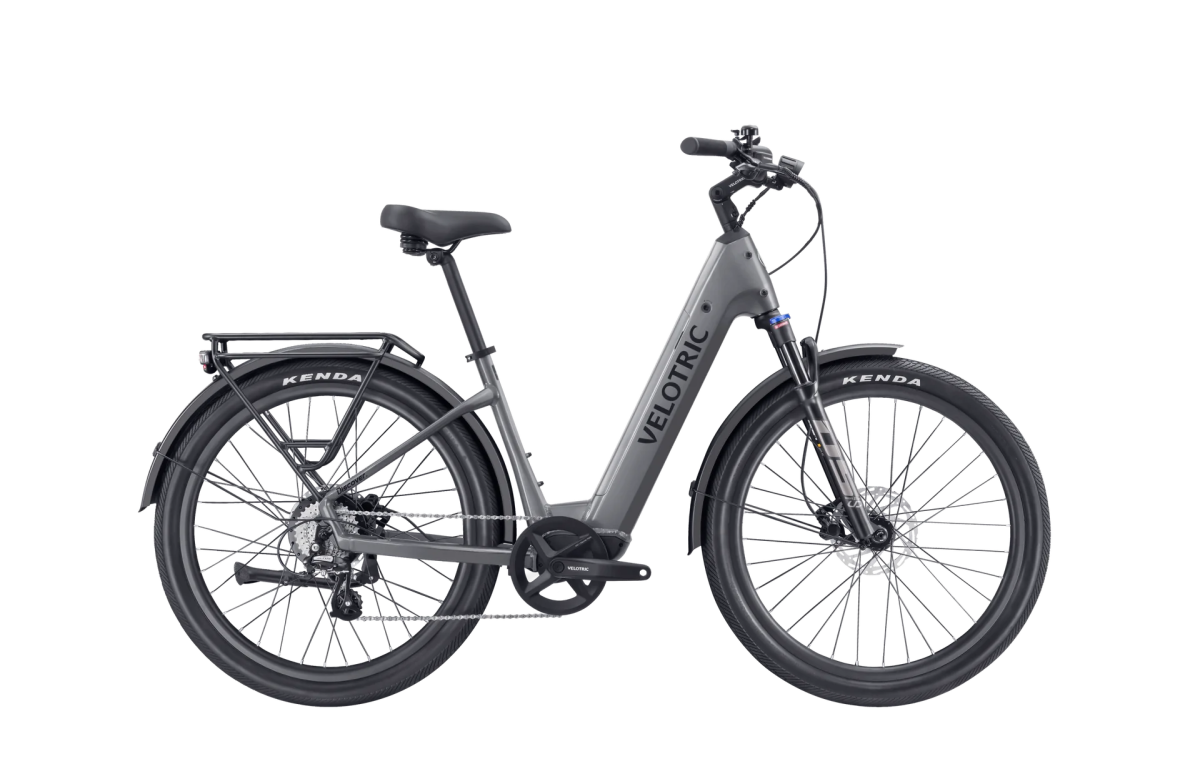

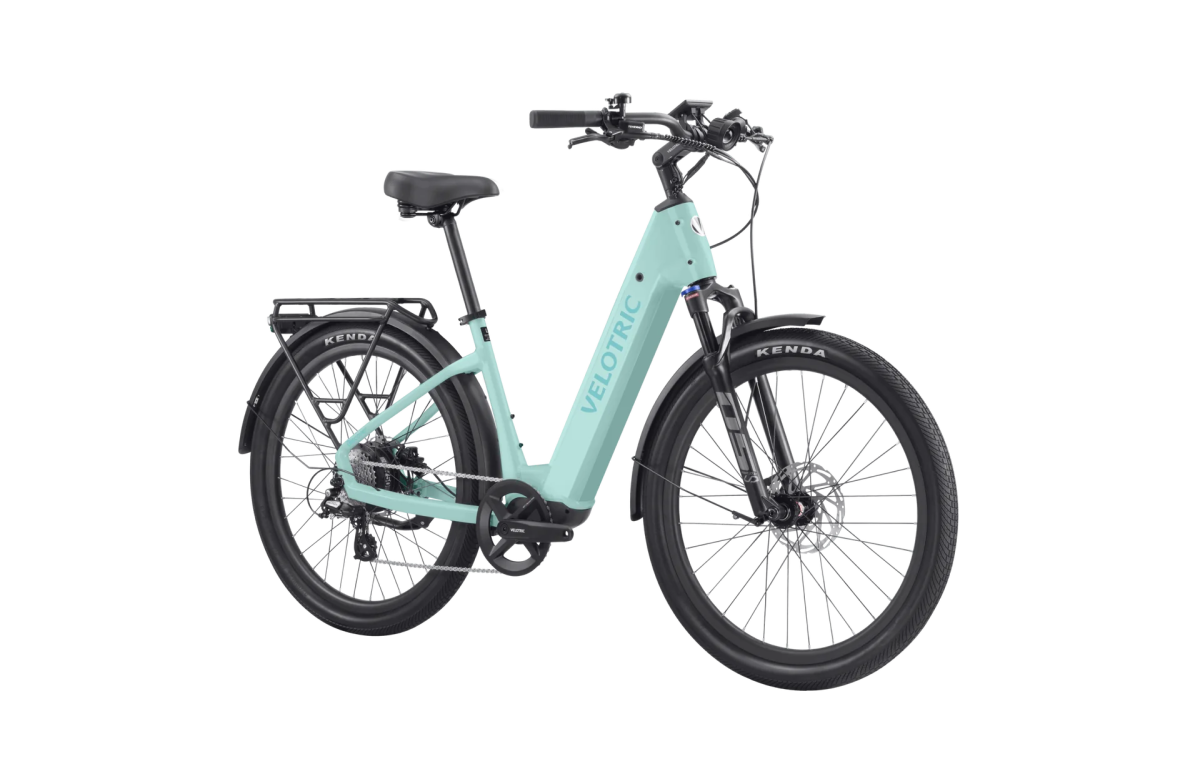

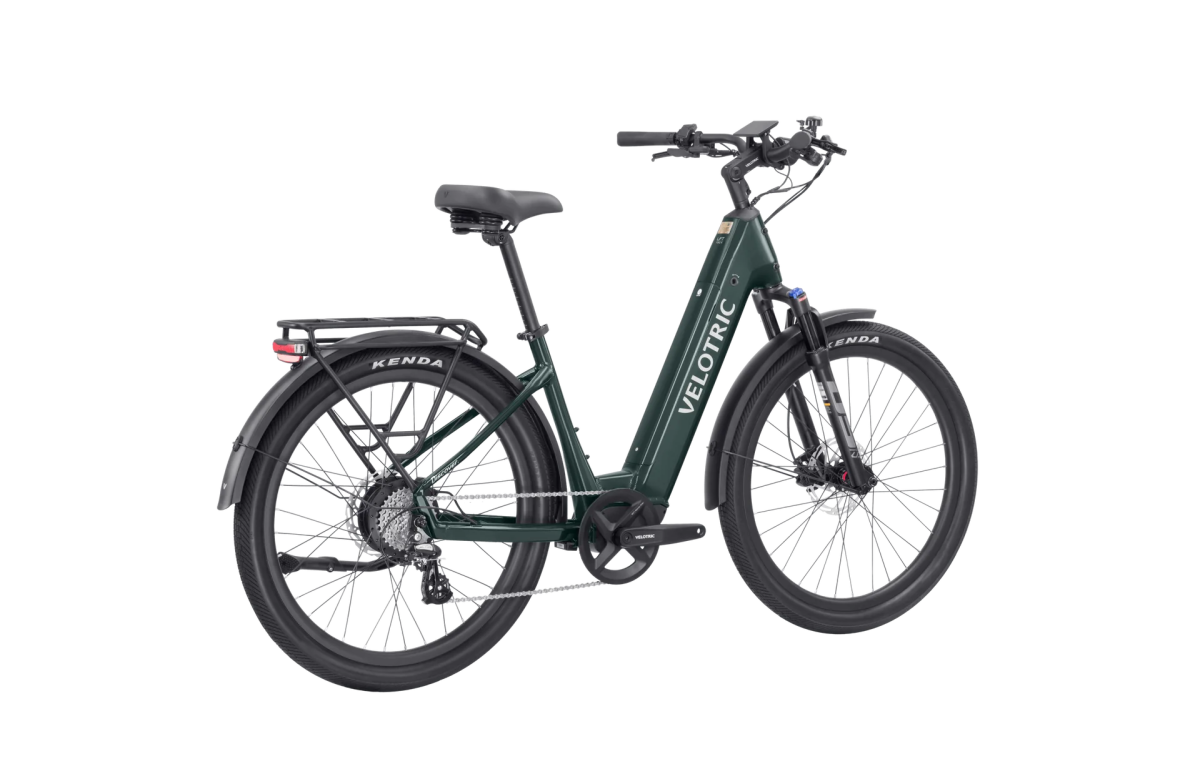

The Velotric Discover 1 Plus comes with 5 stylish color options. Pick your mood!
Ride with the Peace of Mind.
Safety is our top priority. We UL® certified our battery and bike, rigorously testing the frames 150,000 times under tough conditions for quality assurance. The Discover 1 Plus features a rear light with braking high-beam, IPX6 waterproofing, and double hydraulic disc brakes for extra safety in all conditions.
The Most Versatile Commuter Ever.
The Discover 1 Plus adapts to various road conditions, from city streets to gravel paths, enabling diverse activities. The fork ensures a smooth ride in any setting, and it even has a walk mode to help you up hills.
Discover 1 Plus: What's in the "Plus"?
Adjustable Stem Addition
An adjustable stem was added to Discover 1 Plus, enabling you to customize your riding position and ride more comfortably.
Speed Range
We made the max speed adjustable range of the bike 12-28mph, so you can switch freely between Class 1 and 3.
Brighter Front Light
The Discover 1 Plus front light now shines brighter at 60 Lux, enhancing safety with increased visibility.
Specification & Geometry
Size Guide
Bike Size: One Size
User Height Range: 5'1" ~ 6'4"
Electronics
Motor: 48V, 500W (900W Peak), 65Nm
Battery: 48V, 691.2Wh, IPX7, Certificated by UL 2271
Cell: Samsung 21700 cell, Certificated by UL 2580
Charger: 48V, 3A Fast Charger
Display: 3.5'' Backlit LCD display with speed, trip, battery, assist Level and more
USB Port: USB Type-A phone charge
Throttle Assist: Thumb-control, removable
Headlight: High output integrated LED, 60LUX, adjustable angle
Rear Light: Braking Indicator
Drivetrain
Chainrings: 46T
Crankset: Aluminum alloy, 170mm
Cassette: 7-speed
Chain: KMC 7-speed
Rear Derailleur: SHIMANO 7-speed
Shift Lever: SHIMANO 7-speed
Wheel
Rims: Double-wall Aluminum Alloy
Tire: 26 x 2.5" eBike puncture resistant tires
Supports
Fenders: Plastics, front and rear full coverage
Pedals: Plastic
Kickstand: Aluminum Alloy, included, rear mount
Certification
UL Certification: UL 2849
ISO Standard: ISO 4210
Frameset
Fork: Coil suspension 80mm travel with Lock-out, O.L.D 100mm quick-released
Frame: Triple-Butted Aluminum Alloy
Speed & Range
*A 176-lb rider using PAS 1.
Pedal Assist Range: 65 miles
Throttle Range: 58 miles
Brake
Brake: Hydraulic disc brake
Rotors: 180mm front and rear
Brake Levers: Aluminum Alloy, with power cut off
Cockpit
Handlebars: Aluminum Alloy, Φ31.8mm, 660mm
Grips: Durable ergonomic grips, lockable
Stem: Adjustable, Aluminum Alloy, Φ31.8mm, 90mm
Saddle: Velotric urban comfort ergonomic seat, 215mm wide
Seat Post: Aluminum Alloy, Φ30.9mm, 350mm
Weight & Load
Bike Weight: 60 lbs
Max Bike Load: 440 lbs
Geometry
Frame Size: One Size
Height: 5'1'' ~ 6'4''
Seat Tube Length: 425mm
Head Tube Length: 205mm
Stack: 685mm
Reach: 368mm
Stand-Over Height: 392mm
Top-Tube Length (horizontal): 580mm
Min Saddle Height: 788mm
Max Saddle Height: 989mm
