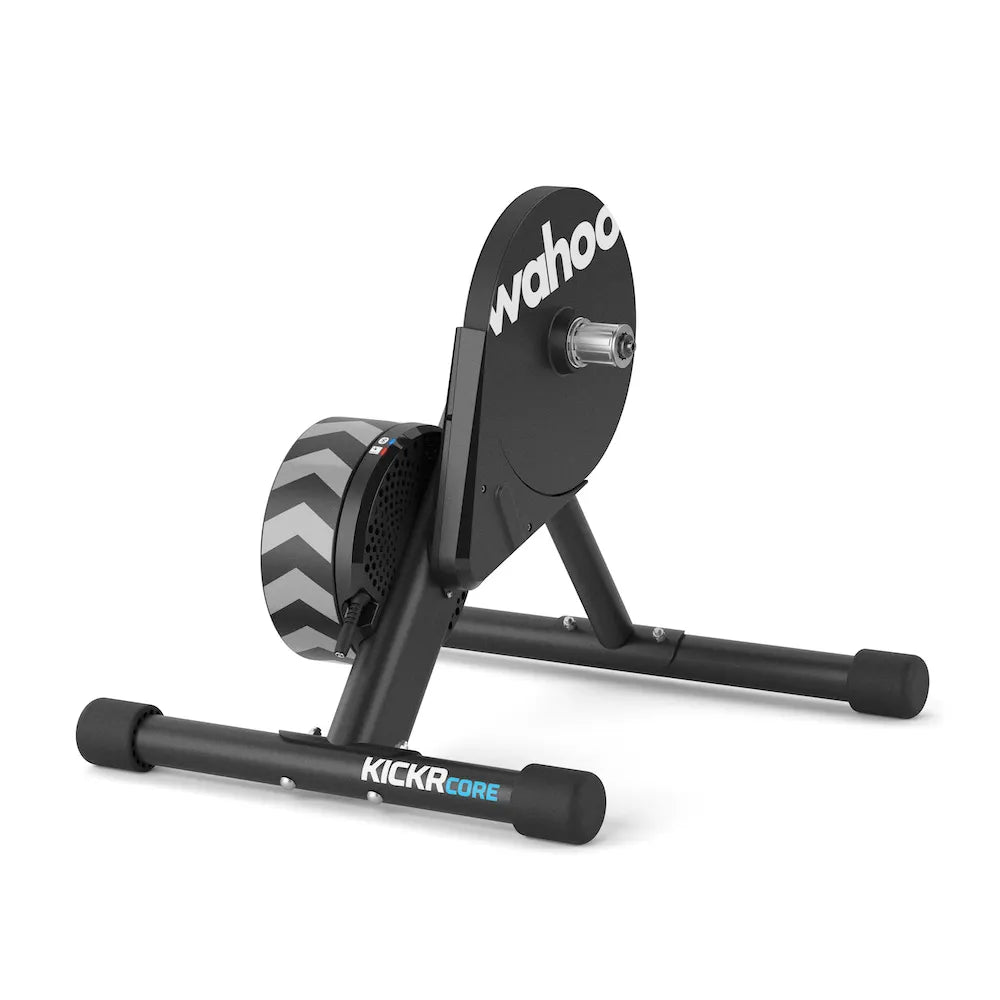

Wahoo KICKR CORE
Sitewide Summer Sale
Unlock your eligible offer at checkout while inventory lasts. Add this item to your cart and proceed to checkout to view available offers, shipping options and more.
Need help choosing the right product? Email contact@garagecycles.cc or call/text (385) 217-6702 for expert product guidance, quotes or support.
30-day returns
Not a member yet? Click here to get started!
Pickup available at GC HQ - In Store Pickup
Usually ready in 2-4 days
Better together. KICKR CORE offers a realistic, accurate, and quiet Zwifting experience.
Purchase includes the option to add a 1-year membership to Zwift for $150, a $49.99 savings. Membership requires Zwift account and auto-renews after 12 months at $199.99, unless cancelled.
Billing information required to redeem. Terms apply.
SHIPPING & RETURNS
All products are eligible for return or exchange within 30 days of purchase for items in new, unused condition in their original packaging.
Customers are responsible for return shipping costs. GC may provide a shipping label for returns if requested, and the return shipping cost will be deducted from your return.
Please contact support for assistance with a return authorization by emailing contact@garagecycles.cc.
YOUR RIDE. YOUR WAY.
KICKR CORE smart trainer includes a pre-installed cassette to match the gears on your bike. Choose from 8, 9, 10, 11, or 12-speed options, and you'll be ready to ride.
MAX GRADE SIMULATION: 16%
MAX POWER (WATTS): 1800w
KICKR CORE FEATURES
OPTIMIZED FLYWHEEL TECHNOLOGY
KICKR CORE features a 12lb flywheel engineered to provide riders with the precise inertia needed to recreate an outdoor ride feel while training indoors.
VIRTUALLY SILENT OPERATION
The belt motor drivetrain on the KICKR CORE was designed specifically to provide a smooth and virtually silent riding experience.
CONTROLLED RESISTANCE
When connected to your smartphone, tablet or computer, KICKR CORE automatically sets your resistance via your favorite app or software.
REALISTIC RIDE FEEL
The KICKR CORE flywheel is innovative and proven technology that emulates the power and inertia experienced during outdoor riding. It provides the most realistic ride feel especially when using virtual riding/training platforms like SYSTM, Zwift, and Trainer Road.
16% MAXIMUM GRADE SIMULATION
The resistance of the KICKR CORE automatically adjusts to simulate climbs up to a 16% incline.
+/- 2% POWER ACCURACY
Enhanced power accuracy to provide accurate power measurement of +/- 2% and generate up to 1800W of resistance.
THRU AXLE COMPATIBLE
The KICKR CORE features 12x142 and 12x148 thru axle compatibility in addition to standard 130/135mm quick release. Click to find out if your bike is compatible.
DISC BRAKE CLEARANCE
The design of the KICKR CORE ensures clearance for flat mount and disk brake equipped bikes.
ANT+, ANT+ FE-C AND BLUETOOTH CONNECTIVITY
ANT+ and Bluetooth capabilities allow it to connect to both smartphones and GPS devices simultaneously or separately. An ANT+ FE-C connection allows the KICKR CORE to be controlled from any FE-C enabled device or application.
MULTIPLE SIMULTANEOUS BLUETOOTH CONNECTIONS
KICKR CORE supports up to three simultaneous Bluetooth connections for a trouble-free start to your workout.
LED INDICATOR LIGHTS
Visual confirmation that KICKR CORE is powered, connected and transmitting via Bluetooth and / or ANT+.
PROFESSIONAL GRADE DURABILITY
Robust steel construction ensures the KICKR CORE stays in place while you crank out the watts and stands up to years of heavy use.
MEASURES SPEED, DISTANCE, POWER, AND CADENCE
Get these vital cycling metrics on your indoor ride on the KICKR CORE without connecting any extra sensors.
KICKR HEADWIND COMPATIBLE
KICKR HEADWIND brings innovative climate control to your indoor training experience. Pair to your KICKR BIKE and as your speed or heart rate increases, so will the fan speed.
ELEMNT BIKE COMPUTER COMPATIBLE
Connect the KICKR CORE to any ELEMNT Bike Computer to relive rides or perform planned workouts.
KICKR CLIMB COMPATIBLE
When paired with the KICKR CORE smart trainer, the KICKR CLIMB indoor grade simulator will match ascents up to 20% and descents up to -10% with physical grade changes. It takes your training to the next level - literally.
APP COMPATIBILITY
Works with popular training apps such as Wahoo SYSTM and Zwift. For more details on which apps are compatible with the KICKR, download our in-depthKICKR app comparison chart.
KICKR CORE SPECS
TECH SPECS
- Part Number: WFBKTR4
- Dimensions (legs open): 20"L x 23"W x 19"H
- Dimensions (legs closed): 9"L x 23"W x 21"H
- Weight (unboxed): 40 lb
- Rear Wheel Size: 24" RD / 24" MTB / 650c RD / 26" MTB / 700c RD / 650b MTB / 29" MTB
- Hub Types: 130/135mm QR, 12x142, and 12x148 Thru Axle
- Adapters: Included
- Drivetrain: Cassette not included.
- Requires Purchase/Installation of New Cassette: 8/9/10/11 Speed SRAM/Shimano
- KICKR CLIMB: Compatible Yes
- RPM Cadence: Not Included
- Front Wheel Block: Not Included
- Resistance Type: Electromagnetic
- Accuracy: + / - 2%
- Wireless Software Updates: Yes
- 3rd Party Power Meter Support: Yes
- Connectivity: ANT+, ANT+ FE-C, and Bluetooth
- Devices: iOS, Android, PC (Mac and Windows)
- Max User Weight: 250 lb
- Power Requirements: 100-240V~1.5A 50-60 Hz
- Flywheel Weight: 12 lb
- Maximum Simulated Grade: 16%
- Maximum Power Output: 1800W
WHAT’S IN THE BOX?
- KICKR CORE
- Rear Leg
- Front Leg
- Nuts (x4)
- Bolts (x4)
- Hex Tool
- Drive Side Adapter for 130mm and 135mm Quick Release
- Reversible hub spacer for 130mm and 135mm Quick Release
- Drive Side Adapter for 12x142 and 12x148 Thru Axle
- Reversible hub spacer for Thru Axle
- AC Power Adapter
- Quick Release Skewer
- Does not include 1.8mm spacer or paper manual.
SUPPORTED DEVICES
- iPhone / iPad: iOS 16 or newer
- Android: Please visit our support site to check for Android compatibility.
- MacOS: Bluetooth enabled or pair with ANT+ dongle
- Windows PC: Bluetooth enabled or pair with ANT+ dongle
