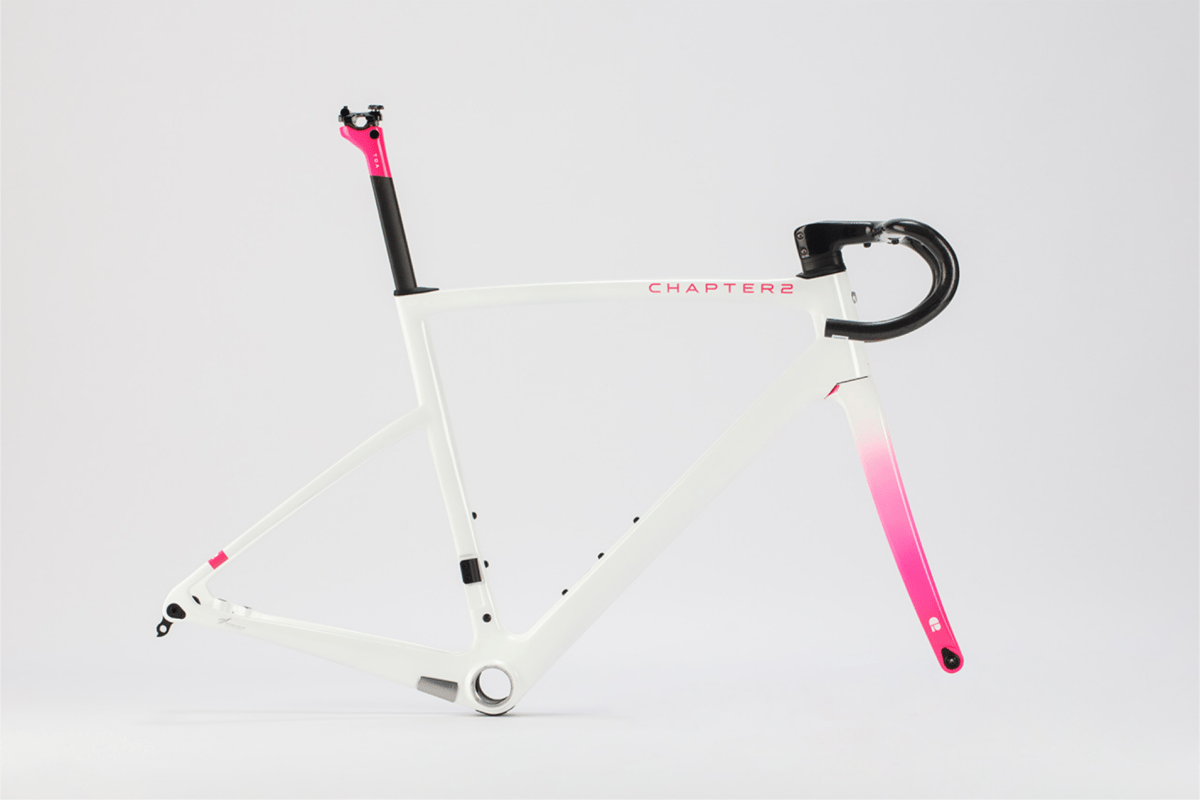

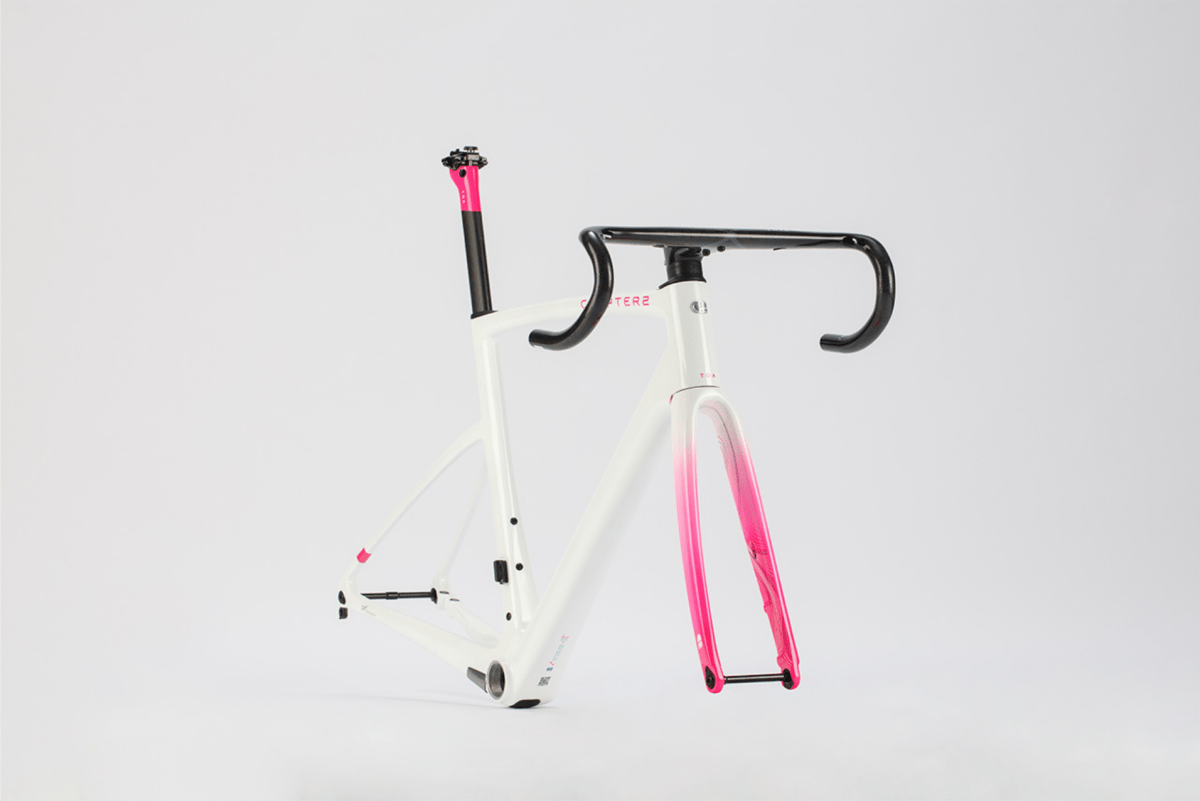

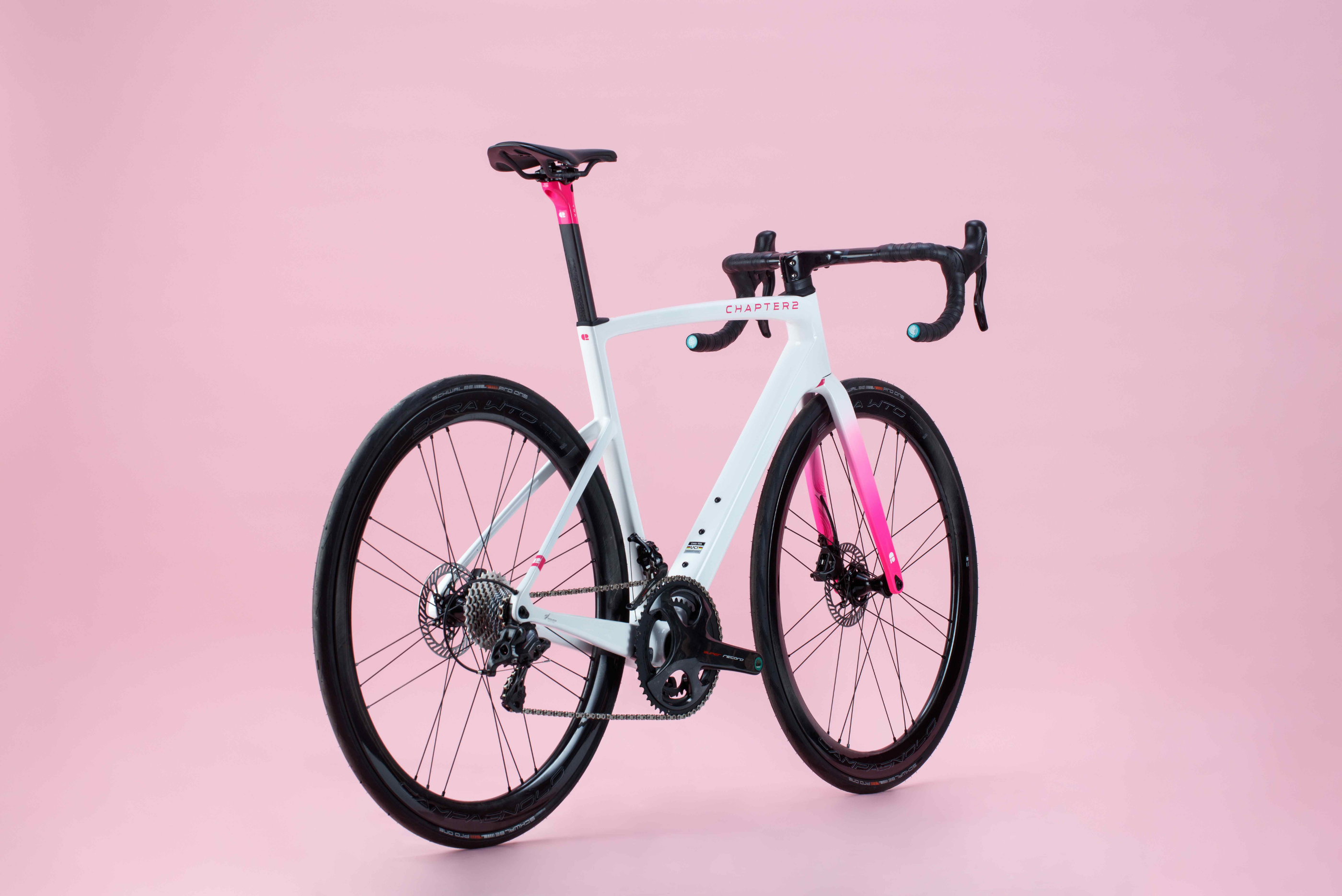

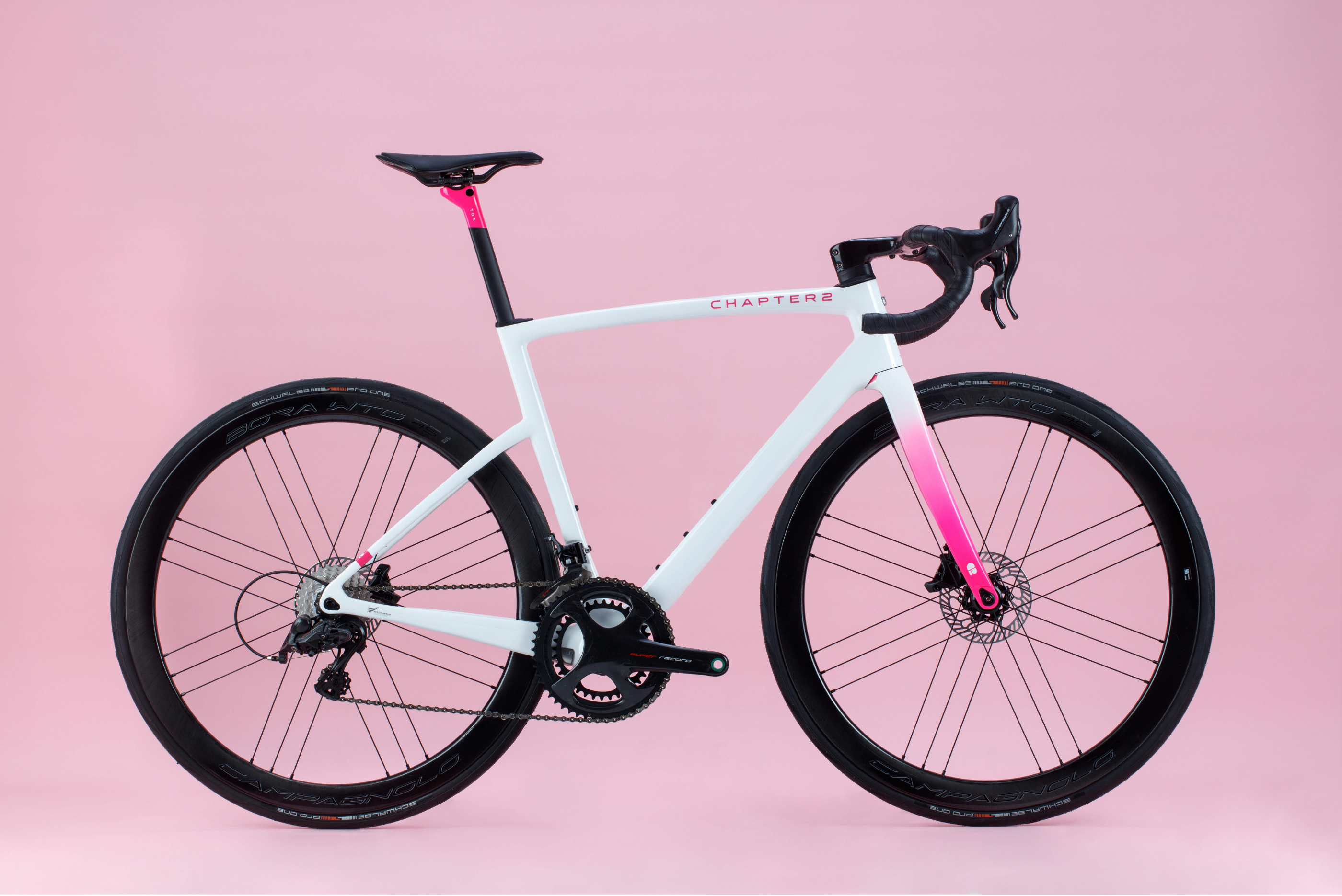

CHAPTER2 TOA FRAMESET(DISC BRAKE) WHITE + PINK (Māwhero) - Carbon Road Bike
Pickup currently unavailable at GC HQ - In Store Pickup
ABOUT THE FRAME:
2-½ years in development with every detail carefully considered and meticulously executed, the TOA is the culmination of all the CHAPTER2 frames that have come before it. TOA which means "to be victorious, win" in Maori delivers an all-out, no-compromise carbon fibre race-ready frame platform designed, engineered, and manufactured to the most exacting standards.
Inspired by the TERE’s Performance All-Road DNA and the AO’s versatility, the TOA has all its cables/hoses tucked away from sight and the wind, creating an aerodynamically seamless transition between the MANA Bar and the TOA’s Kamm-Tail chassis.
Sporting a T47 Bottom Bracket for easy maintenance, the aluminium BB Shell works in unison with the high-tensile carbon carefully laid into the BB area to increase stiffness by up to 7.3% over the TERE. Additionally, the use of a Latex mandrel for the whole front triangle has increased the Headtube stiffness by 23.5% over the TERE for that out of the saddle and power to the pedals moment.
Other enhancements such as the bundled MANA Bar, Quick-Fit headset spacers, up to 32mm of tire clearance, vibration dampening Seatstays and Seatpost makes for a package that ticks all the right boxes.
FEATURES/BENEFITS:
Stiff Racing Frame: Improved Power Transfer & Precise Steering
Cable Integration: Improved Aerodynamics & Clean Aesthetics
Compact Kamm-Tail: Aerodynamic & Stiffness where Needed
Up to 32mm Tire Clearance: Increased Tire Options
Dropped Stays: Improved Compliance for Endurance Rides
T47 BB: Noise-free & Easy to Service
Disc Brakes Only: Improved Braking & Modulation
Frameset Only: Bespoke & Personal
Limited Edition: Exclusivity
SHIPPING & RETURNS
All products are eligible for return or exchange within 30 days of purchase for items in new, unused condition in their original packaging.
Customers are responsible for return shipping costs. GC may provide a shipping label for returns if requested, and the return shipping cost will be deducted from your return.
Please contact support for assistance with a return authorization by emailing contact@garagecycles.cc.
%20WHITE%20+%20PINK%20(M%C4%81whero)%20-%20Carbon%20Road%20Bike){kind=link}
FEATURES

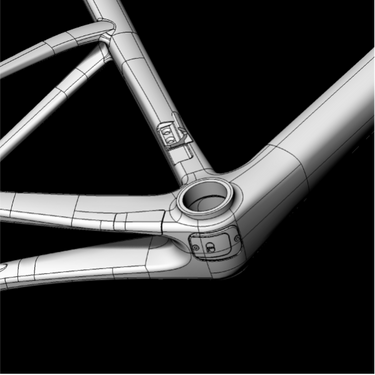

T47 (86.5) BB - SERVICE FRIENDLY BB - IMPROVED STIFFNESS
32 MM TIRE CLEARANCE - IMPROVED TRACTION - IMPROVED COMPLIANCE

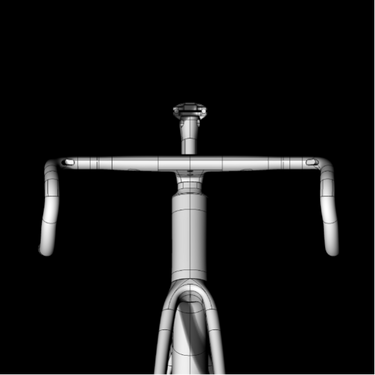

AERO OPTIMIZED - KAMM-TAIL DOWNTUBE - INTEGRATED FORK CROWN - INTEGRATED COCKPIT

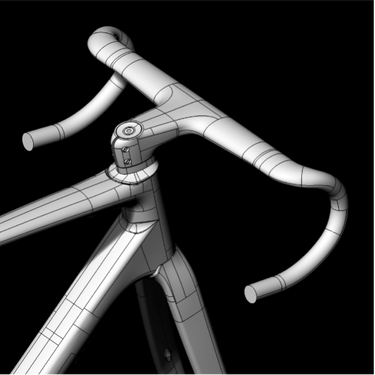

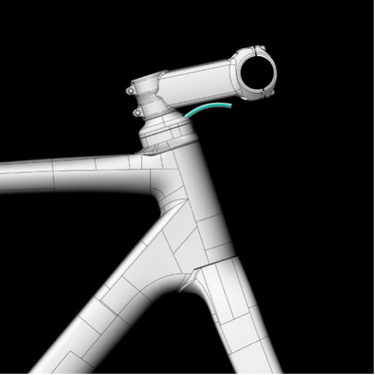

BIKE FIT OPTIONS - CAN BE USED WITH MANA - OR WITH STANDARD STEM

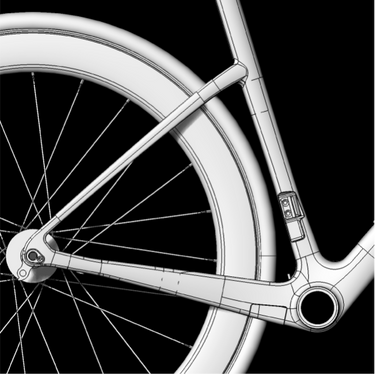

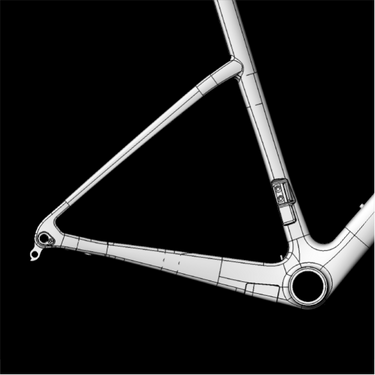

DROPPED SEATSTAYS - IMPROVED COMPLIANCE - STIFFER REAR TRIANGLE
FULLY INTEGRATED CABLING - IMPROVED AERODYNAMICS - CLEAN AND SLEEK AESTHETIC
SPECS
2-½ years in development with every detail carefully considered and meticulously executed, the TOA is the culmination of all the CHAPTER2 frames that have come before it. TOA which means "to be victorious, win" in Maori delivers an all-out, no-compromise carbon fibre race-ready frame platform designed, engineered, and manufactured to the most exacting standards.
Inspired by the TERE’s Performance All-Road DNA and the AO’s versatility, the TOA has all its cables/hoses tucked away from sight and the wind, creating an aerodynamically seamless transition between the MANA Bar and the TOA’s Kamm-Tail chassis.
Sporting a T47 Bottom Bracket for easy maintenance, the aluminium BB Shell works in unison with the high-tensile carbon carefully laid into the BB area to increase stiffness by up to 7.3% over the TERE. Additionally, the use of a Latex mandrel for the whole front triangle has increased the Headtube stiffness by 23.5% over the TERE for that out of the saddle and power to the pedals moment.
Other enhancements such as the bundled MANA Bar, Quick-Fit headset spacers, up to 32mm of tire clearance, vibration dampening Seatstays and Seatpost makes for a package that ticks all the right boxes.
Stiff Racing Frame: Improved Power Transfer & Precise Steering
Cable Integration: Improved Aerodynamics & Clean Aesthetics
Compact Kamm-Tail: Aerodynamic & Stiffness where Needed
Up to 32mm Tire Clearance: Increased Tire Options
Dropped Stays: Improved Compliance for Endurance Rides
T47 BB: Noise-free & Easy to Service
Disc Brakes Only: Improved Braking & Modulation

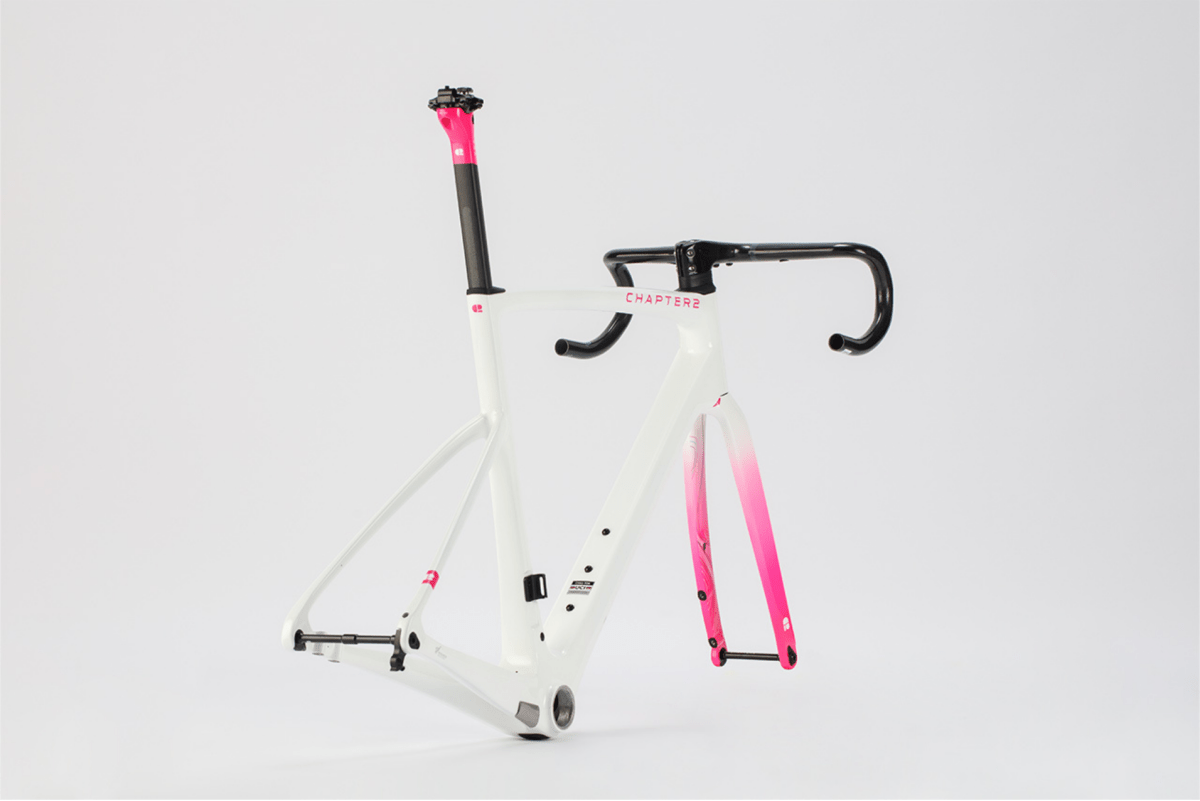

Frameset Only: Bespoke & Personal
Limited Edition: Exclusivity
Carbon: 100% Made in Japan by Toray
Frame 6 Sizes: XXS, XS, S, M, L & XL
Fork Rakes (2): XXS, XS, S (53mm offset) and M, L, XL (43mm offset)
Frame Weight: 1,099g (Disc) Size M +/- 3%
Fork Weight: 419g (Disc) Uncut +/- 3%
Seatpost Weight: 215g Size M +/- 3%
Handlebar/Stem (MANA): 395g (100-420mm) +/- 3%
Headset: 1.5” C2 Integrated System
Gear Shifting Type: Mechanical & Electric Shifting
Electronic Shifting: SHIMANO® Di2, SRAM® eTAP & Campagnolo® EPS compatible
Battery Type: Di2 SM-BTR-2 or BT-DN300 and EPS V3 Battery Compatible
Tire Clearance: 30mm (ISO) & 32mm Practical
Brake Type: Disc Only
Bottom Bracket: Internal T47 (86.5)
Thru-Axle: Flat Mount FR 12x100mm, RR 12x142mm, E-Thru M12x1.5mm
Safety Standard: EN ISO 4210:2014
UCI Accreditation: UCI Approved
- Frame
- Fork
- Headset
- Seatpost
- Thru-Axles
- Quick-Fit Spacers
Saddle Rail: 6Nm
Seatclamp: 8-10Nm
Front Derailleur Hanger: 3-4Nm
Rear Derailleur Hanger: 2-3Nm
BB Cable Guide Cover: 1-2Nm
Water Bottle Cage Bolts: 2-3Nm
Thru-Axle: 10Nm
MANA: 6Nm
SIZE GUIDE
| TOA | XS | S | M | L | XL |
|---|---|---|---|---|---|
| Stack | 502 | 527 | 552 | 577 | 602 |
| Reach | 363 | 372 | 381 | 390 | 399 |
| A. Top Tube | 509 | 525 | 542 | 558 | 575 |
| B. Head Tube | 95 | 115 | 135 | 160 | 186 |
| C. Seat Tube Angle | 74° | 74° | 74° | 74° | 74° |
| D. Head Tube Angle | 70° | 72° | 73° | 74° | 74° |
| E. Seat Tube | 458 | 483 | 508 | 533 | 560 |
| F. BB Drop | 73 | 73 | 73 | 73 | 73 |
| G. Rear Centre | 408 | 408 | 408 | 408 | 408 |
| H. Wheelbase | 973 | 975 | 973 | 986 | 1002 |
| I. Front Centre | 576 | 578 | 576 | 589 | 605 |
| J. Fork Offset | 53 | 53 | 43 | 43 | 43 |
| K. Seatpost Setback | 10 | 10 | 10 | 10 | 10 |
| Stem | NA | NA | NA | NA | NA |
| Stand over | 735 | 760 | 768 | 811 | 837 |
| Rider Height | 160-170 | 165-175 | 170-180 | 175-185 | >180 |
| Max. Tire Size | 32 | 32 | 32 | 32 | 32 |
| Rear Caliper Mount | 25 | 25 | 25 | 25 | 25 |
MANA5
| Size | 80x405 | 80x416 | 90x405 | 90x416 | 90x427 | 100x416 | 100x427 | 100x438 | 110x427 | 110x438 | 110x449 | 120x449 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A. Stem | 80 | 80 | 90 | 90 | 90 | 100 | 100 | 100 | 110 | 110 | 110 | 120 |
| B. Width at Drops | 405 | 416 | 405 | 416 | 427 | 416 | 427 | 438 | 427 | 438 | 449 | 449 |
| C. Width at Hoods | 355 | 366 | 355 | 366 | 377 | 366 | 377 | 388 | 377 | 388 | 399 | 399 |
| D. Reach | 70 | 70 | 70 | 70 | 70 | 70 | 70 | 70 | 70 | 70 | 70 | 70 |
| E. Drop | 128 | 128 | 128 | 128 | 128 | 128 | 128 | 128 | 128 | 128 | 128 | 128 |
| F. Stem Angle | -7.0° | -7.0° | -7.0° | -7.0° | -7.0° | -7.0° | -7.0° | -7.0° | -7.0° | -7.0° | -7.0° | -7.0° |
MANA2
| Size | 80x380 | 90x391 | 100x402 | 110x413 | 120x424 | 130x435 |
|---|---|---|---|---|---|---|
| A. Stem | 80 | 90 | 100 | 110 | 120 | 130 |
| B. Width at Drops | 380 | 391 | 402 | 413 | 424 | 435 |
| C. Width at Hoods | 360 | 371 | 382 | 393 | 404 | 415 |
| D. Reach | 70 | 70 | 70 | 70 | 70 | 70 |
| E. Drop | 128 | 128 | 128 | 128 | 128 | 128 |
| F. Stem Angle | -7.0° | -7.0° | -7.0° | -7.0° | -7.0° | -7.0° |
