CHAPTER2

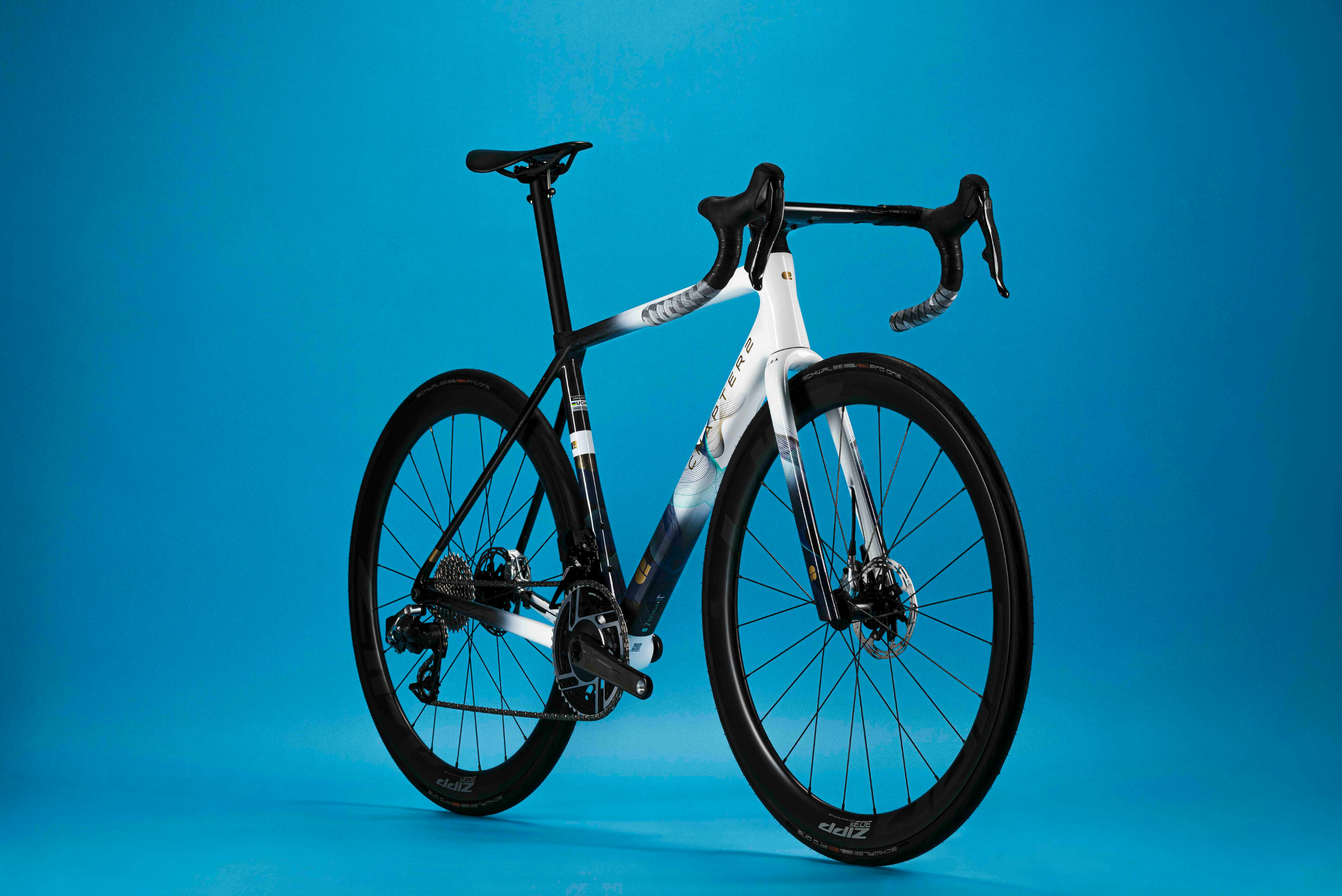

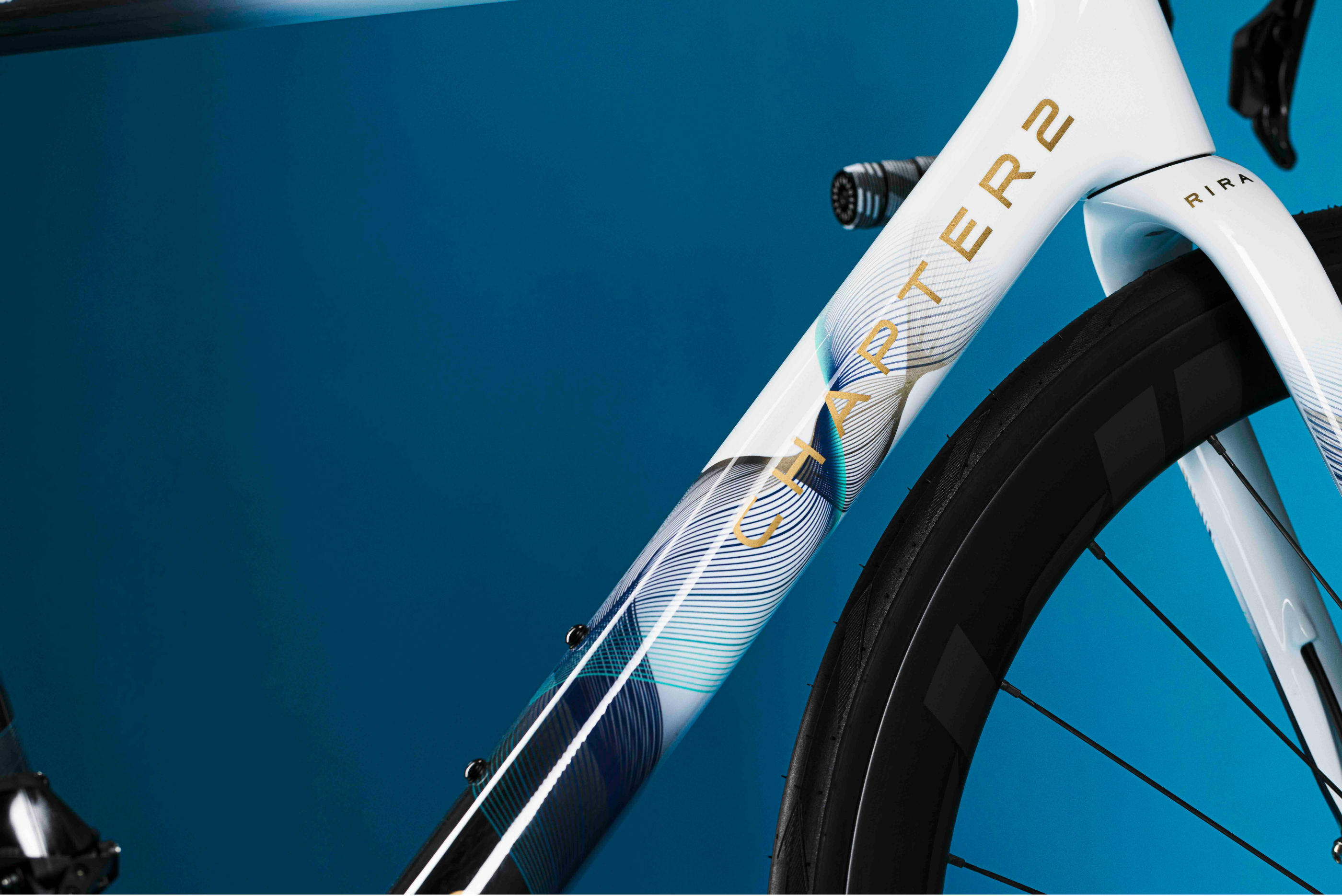

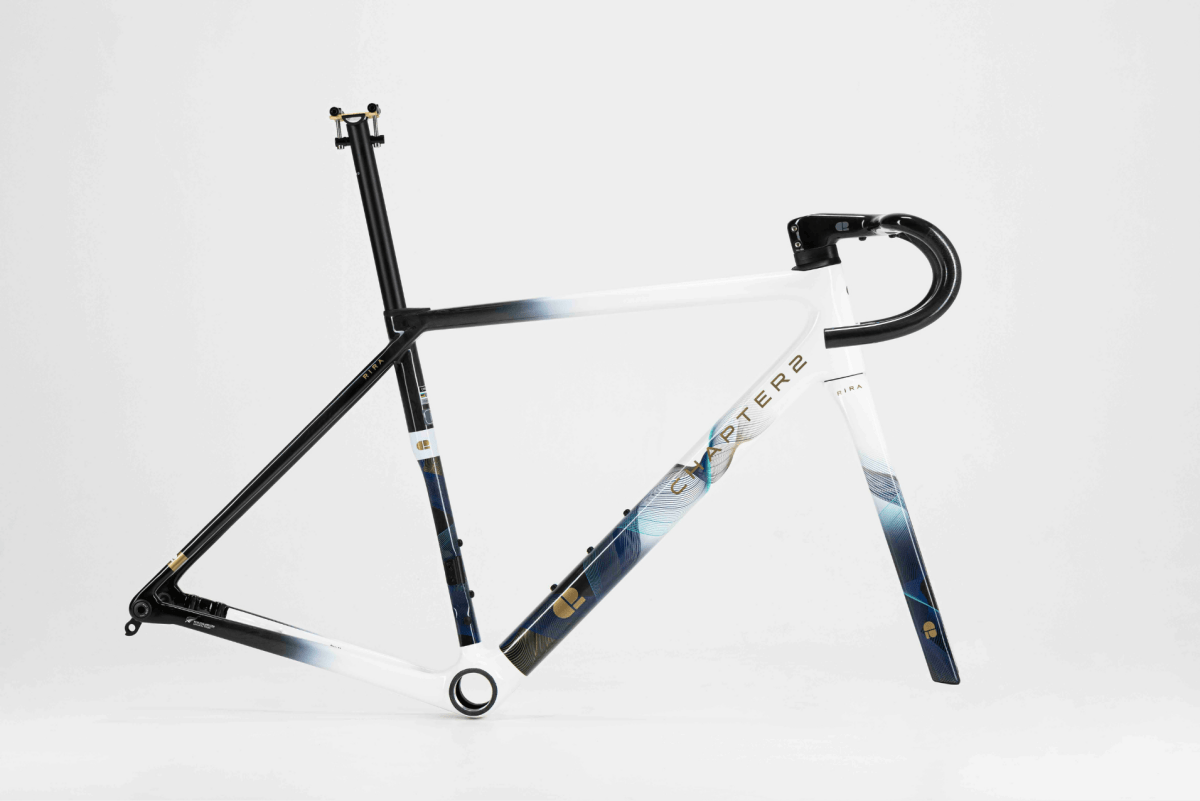

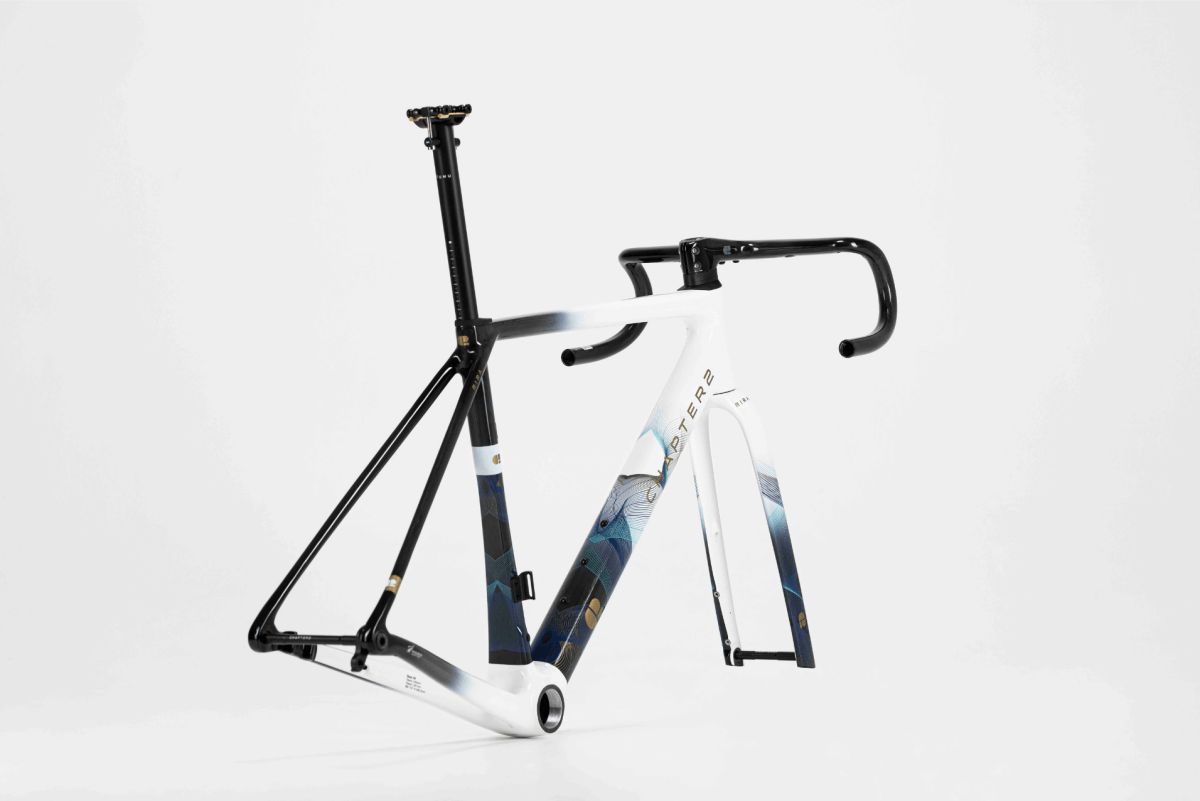

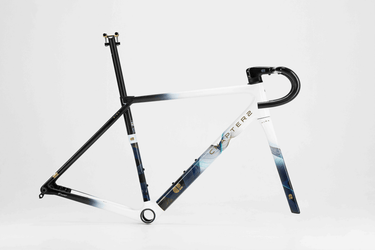

CHAPTER2 RIRA FRAMESET (DISC BRAKE) RIRA WHITE FADE W/SWIRLS - Gravel Road Bike - Gravel Road Bike
Pickup available at GC HQ - In Store Pickup
Usually ready in 24 hours
ABOUT THE FRAME:
In a world where every new bike launch is accompanied by lofty claims of “fastest bike in the world” or “save X watts over a 40km/hr solo ride” etc. it would be easy to forget that cycling is about the senses, the beauty of suffering up a massive col, then dipping into a valley with the surroundings flashing by as if you’re travelling through time.
The RIRA is all about the “touchy, feely” side of cycling. Whilst the svelte weight and the carefully dialled stiffness to weight ratio matters to our product team who geek out over Toray T1100 grade specifications, fibre orientation and watts saved etc., it’s what we deliver to your soul that matters to us most.
With the RIRA, we got back to basics. A razor-sharp focus on balance and agility that is sure to raise your pulse, and if that wasn’t enough, it has the looks that will certainly turn a few heads when you rock up to your local bunchie or put the power down to capture your PB.
The RIRA sports a T47 85.5 BB Standard that is quickly becoming the default standard for high tolerance and stiffness, as well as offering many BB and Crankset options in the market. By using a standard 27.2mm Seatpost, you can really dial in your bike fit as well as target weight. Of course, you can also choose the optional C2 TUMU Seatpost at 219g to get the full C2 experience.
The RIRA frameset comes with Sram UDH Hanger and Shimano Direct Mount Hnager and is only compatible Electronic Groupsets. The chassis and fork accommodate tires up to 32mm in the rear and 34mm in the front, ensuring a smooth and fast ride, so you will have ample room for high volume tires for the fast and plush ride quality.
FEATURES/BENEFITS:
The sleek 950g RIRA Form Factor has all the trademarks of a modern race frameset, such as a T47 85.5 BB for added stiffness and maximum BB/Crankset compatibility. The slender waistline of the headtube carefully manages the airflow to minimise drag, creating a slippery silhouette that delivers
Each frameset comes with a Sram UDH Hanger as well as a Shimano Direct Mount Hanger allow maximum shifting performance with both Gruppo Manufacturers.

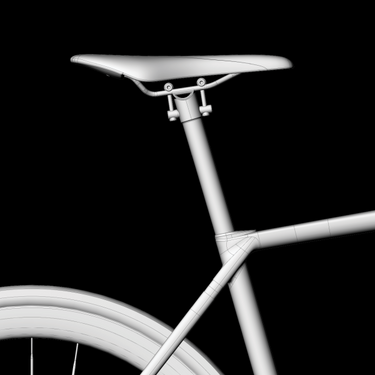

In a world of bespoke Seatposts, C2 are bucking the trend by engineering the RIRA specifically for the round 27.2 Seatpost so you can select the best post in the market that suits your needs, including the 219g C2 TUMU 0mm Setback post.
SHIPPING & RETURNS
All products are eligible for return or exchange within 30 days of purchase for items in new, unused condition in their original packaging.
Customers are responsible for return shipping costs. GC may provide a shipping label for returns if requested, and the return shipping cost will be deducted from your return.
Please contact support for assistance with a return authorization by emailing contact@garagecycles.cc.
FEATURES

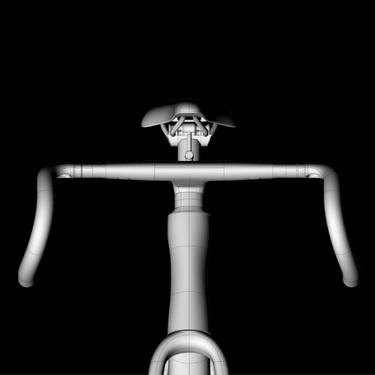

BIKE FIT OPTIONS - CAN BE USED WITH MANA - OR WITH STANDARD STEM
27.2MM STANDARD SIZE SEATPOST FOR MAXIMUM BIKE FIT OPTIONS

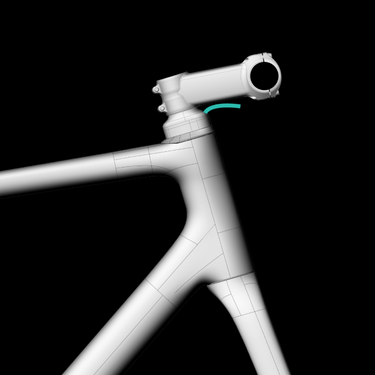

FULLY INTEGRATED CABLING - IMPROVED AERODYNAMICS - CLEAN AND SLEEK AETHETICS

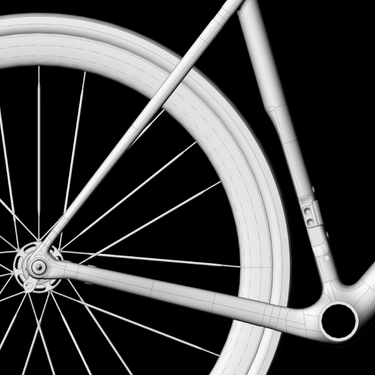

SRAM UDH REAR HANGER COMPATBILITY AND UP TO 32MM TIRE CLEARANCE

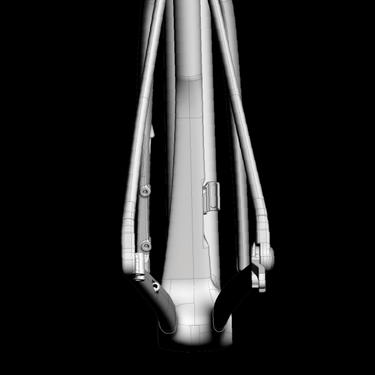

T47 85.5 BB WITH SRAM UDH AND SHIMANO DIRECT MOUNT HANGER OPTIONS

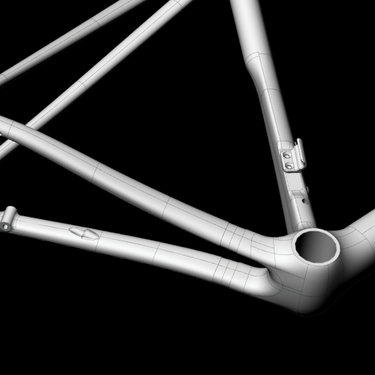

ASYMMETRIC SEATTUBE TO MAXIMISE BOTTOM BRACKET STIFFNESS
SPECS
In a world where every new bike launch is accompanied by lofty claims of “fastest bike in the world” or “save X watts over a 40km/hr solo ride” etc. it would be easy to forget that cycling is about the senses, the beauty of suffering up a massive col, then dipping into a valley with the surroundings flashing by as if you’re travelling through time.
The RIRA is all about the “touchy, feely” side of cycling. Whilst the svelte weight and the carefully dialled stiffness to weight ratio matters to our product team who geek out over Toray T1100 grade specifications, fibre orientation and watts saved etc., it’s what we deliver to your soul that matters to us most.
With the RIRA, we got back to basics. A razor-sharp focus on balance and agility that is sure to raise your pulse, and if that wasn’t enough, it has the looks that will certainly turn a few heads when you rock up to your local bunchie or put the power down to capture your PB.
The RIRA sports a T47 85.5 BB Standard that is quickly becoming the default standard for high tolerance and stiffness, as well as offering many BB and Crankset options in the market. By using a standard 27.2mm Seatpost, you can really dial in your bike fit as well as target weight. Of course, you can also choose the optional C2 TUMU Seatpost at 219g to get the full C2 experience.
The RIRA frameset comes with Sram UDH Hanger and Shimano Direct Mount Hnager and is only compatible Electronic Groupsets. The chassis and fork accommodate tires up to 32mm in the rear and 34mm in the front, ensuring a smooth and fast ride, so you will have ample room for high volume tires for the fast and plush ride quality.
The sleek 950g RIRA Form Factor has all the trademarks of a modern race frameset, such as a T47 85.5 BB for added stiffness and maximum BB/Crankset compatibility. The slender waistline of the headtube carefully manages the airflow to minimise drag, creating a slippery silhouette that delivers
Each frameset comes with a Sram UDH Hanger as well as a Shimano Direct Mount Hanger allow maximum shifting performance with both Gruppo Manufacturers.
In a world of bespoke Seatposts, C2 are bucking the trend by engineering the RIRA specifically for the round 27.2 Seatpost so you can select the best post in the market that suits your needs, including the 219g C2 TUMU 0mm Setback post.
Carbon: 1 00% Made in Japan by Toray
Frame 5 Sizes: XS, S, M, L & XL
Fork Rakes (2): XS, S (53mm offset) and M, L, XL (43mm offset)
Frame Weight: 945g Size M +/- 3%
Fork Weight: 395g Uncut +/- 3%
TUMU Seatpost (Sold Separately) Weight: 219g +/- 3%
MANA2 & 5 Bar (Sold Separately) Weight: 330g +/- 3% (MANA2 100x402mm/MANA5 100x427mm)
Headset: 1.5" C2 Integrated
Gear Shifting: Electric Only
Electronic Shifting: SHIMANO® Di2, SRAM® eTAP & Campagnolo® EPS compatible
Battery Type: Di2 SM-BTR-2 or BT-DN300 and EPS V3 Battery Compatible
Tire Clearance: Front 32 (ISO) & 34 Practical. Rear 30 (ISO) & 32 Practical
Brake Type: Disc Only Bottom Bracket: Internal T47 (85.5)
Thru-Axle: Flat Mount FR 12x100mm, RR 12x142mm, Sram UDH M12x1mm
Safety Standard: EN ISO 4210: 2014UCI
Accreditation: UCI Approved
- Frame
- Fork
- Headset
- Thru-Axles
- Quick-Fit Spacers
- Sram XDR Hanger
- Shimano DM Hanger
Seatclamp: 8-10Nm
Thru-Axle: 3-4Nm
Rear Derailleur Hanger: 3-4Nm
Water Bottle Cage Bolts: 2-3Nm
Thru-Axle: 10Nm
MANA: 6Nm
SIZE GUIDE
| RIRA | XS | S | M | L | XL |
|---|---|---|---|---|---|
| Stack | 489 | 517 | 545 | 573 | 601 |
| Reach | 361 | 371 | 381 | 391 | 401 |
| A. Top Tube | 502 | 520 | 538 | 555 | 574 |
| B. Head Tube | 90 | 112 | 135 | 161 | 191 |
| C. Seat Tube Angle | 74° | 112 | 135 | 161 | 191 |
| C. Seat Tube Angle | 74° | 74° | 74° | 74° | 74° |
| D. Head Tube Angle | 70° | 72° | 73° | 74° | 74° |
| E. Seat Tube | 430 | 450 | 470 | 500 | 530 |
| F. BB Drop | 74 | 73.5 | 73 | 72.5 | 72 |
| G. Rear Centre | 410 | 410 | 410 | 410 | 410 |
| H. Wheelbase | 972 | 974 | 975 | 982 | 1001 |
| I. Front Centre | 574 | 576 | 574 | 584 | 602 |
| J. Fork Offset | 53 | 53 | 43 | 43 | 43 |
| K. Seatpost Setback | NA | NA | NA | NA | NA |
| Stem | NA | NA | NA | NA | NA |
| Stand over | 721 | 744 | 768 | 799 | 827 |
| Rider Height | <170 | 165-175 | 170-180 | 175-185 | >180 |
| Max. Tire Size | 32 | 32 | 32 | 32 | 32 |
| Rear Caliper Mount | 25 | 25 | 25 | 25 | 25 |
MANA5
| Size | 80x405 | 80x416 | 90x405 | 90x416 | 90x427 | 100x416 | 100x427 | 100x438 | 110x427 | 110x438 | 110x449 | 120x449 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A. Stem | 80 | 80 | 90 | 90 | 90 | 100 | 100 | 100 | 110 | 110 | 110 | 120 |
| B. Width at Drops | 405 | 416 | 405 | 416 | 427 | 416 | 427 | 438 | 427 | 438 | 449 | 449 |
| C. Width at Hoods | 355 | 366 | 355 | 366 | 377 | 366 | 377 | 388 | 377 | 388 | 399 | 399 |
| D. Reach | 70 | 70 | 70 | 70 | 70 | 70 | 70 | 70 | 70 | 70 | 70 | 70 |
| E. Drop | 128 | 128 | 128 | 128 | 128 | 128 | 128 | 128 | 128 | 128 | 128 | 128 |
| F. Stem Angle | -7.0° | -7.0° | -7.0° | -7.0° | -7.0° | -7.0° | -7.0° | -7.0° | -7.0° | -7.0° | -7.0° | -7.0° |
MANA2
| Size | 80x380 | 90x391 | 100x402 | 110x413 | 120x424 | 130x435 |
|---|---|---|---|---|---|---|
| A. Stem | 80 | 90 | 100 | 110 | 120 | 130 |
| B. Width at Drops | 380 | 391 | 402 | 413 | 424 | 435 |
| C. Width at Hoods | 360 | 371 | 382 | 393 | 404 | 415 |
| D. Reach | 70 | 70 | 70 | 70 | 70 | 70 |
| E. Drop | 128 | 128 | 128 | 128 | 128 | 128 |
| F. Stem Angle | -7.0° | -7.0° | -7.0° | -7.0° | -7.0° | -7.0° |
