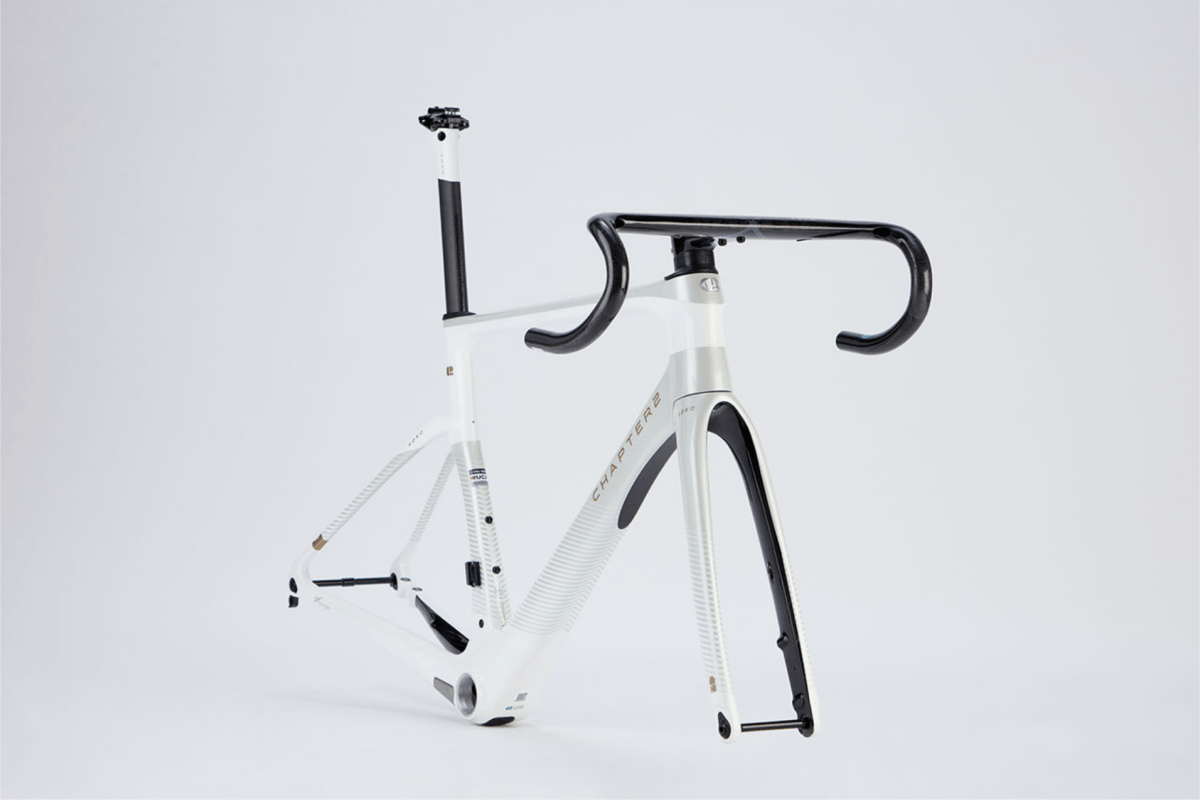

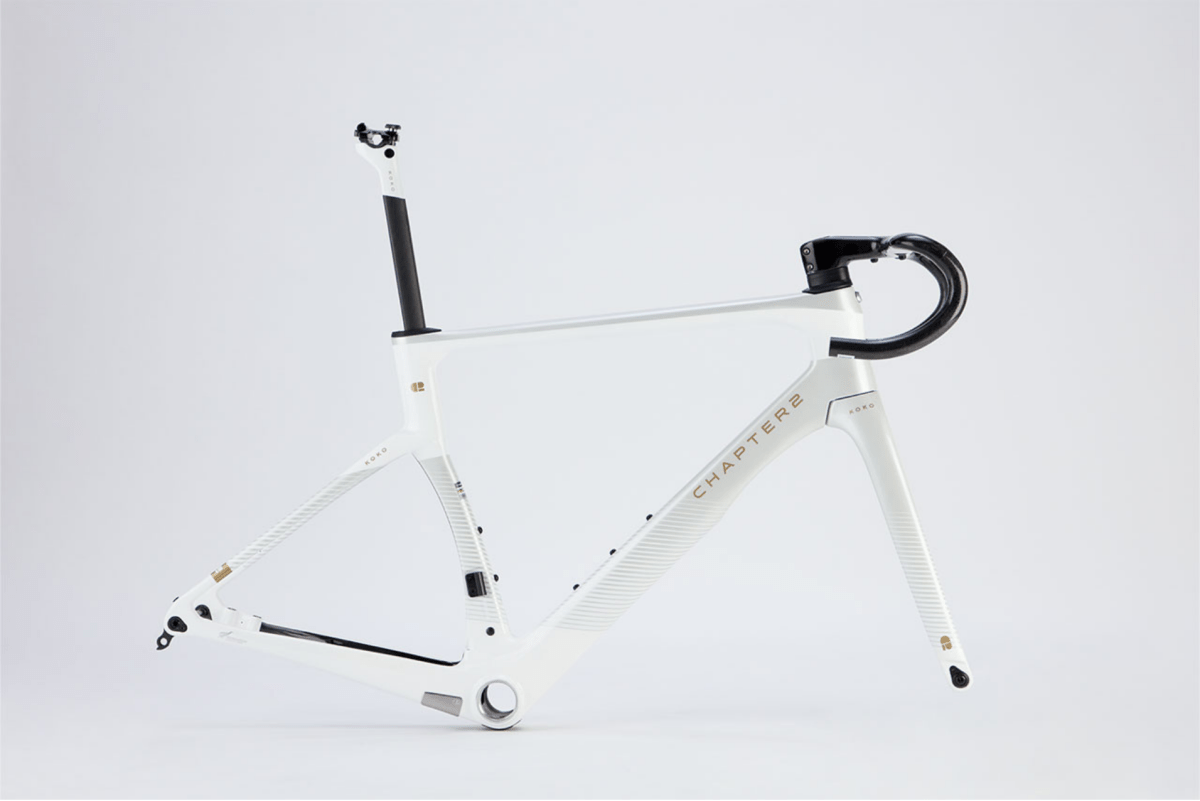

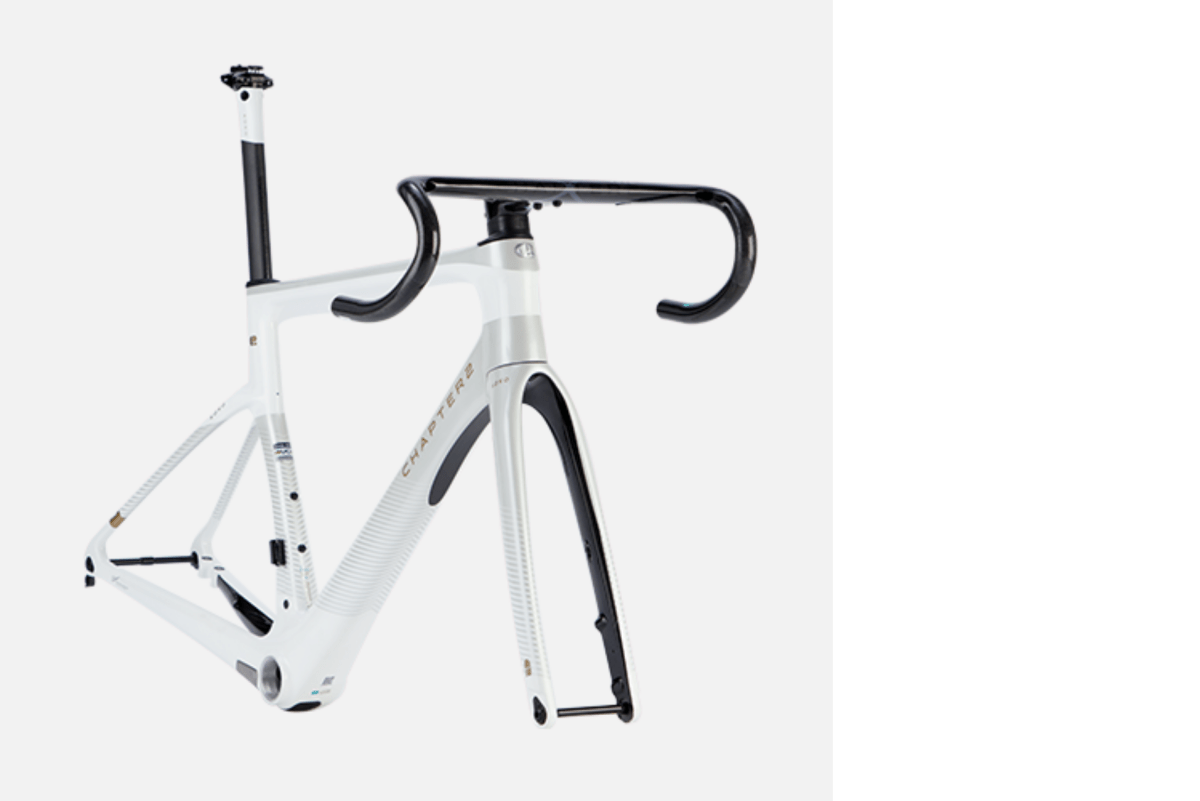

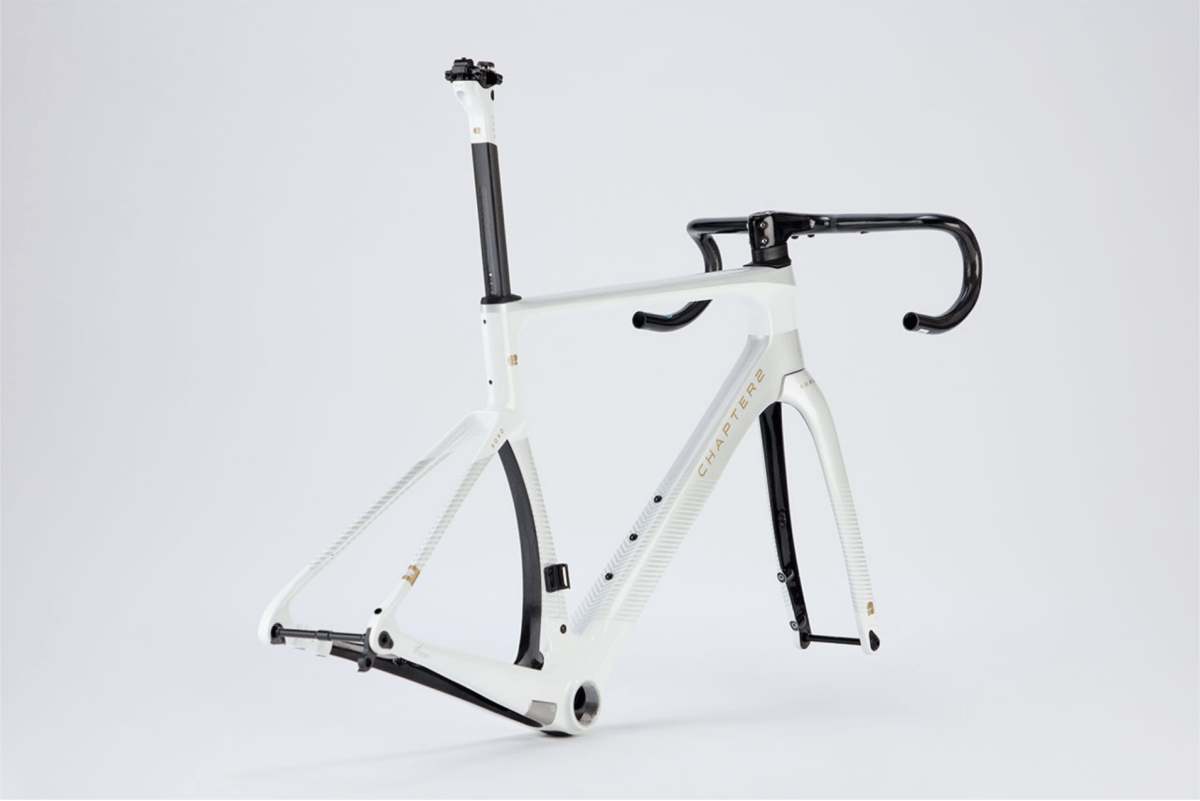

CHAPTER2 KOKO FRAMESET(DISC BRAKE) WHITE + GREY (TAURIPARIPA) - Carbon Road Bike
Pickup currently unavailable at GC HQ - In Store Pickup
ABOUT THE FRAME:
Air resistance is the single most critical factor that separates a fast bike from a bike that cuts through the air like a bird. KOKO means “to soar, fly” in Maori and as the name suggests, our Top Tier Aero Road model will have you smiling from ear to ear from the sheer thrill of unadulterated speed.
Taking the RERE’s Aero credentials to the next level, the KOKO now has Kamm-Tail profiles incorporated into the downtube, increasing the overall stiffness of the bottom bracket and headtube by 13.35% and 35.64% respectively. Married to our aerodynamically optimised and ergonomic MANA bar, the combination makes for a super sleek high-performance racing machine.
The KOKO also comes with adjustable compliance via a dual position seatclamp configuration that can be switched from stiff to buttery smooth depending on the rider’s personal needs and/or road conditions.
Further engineering gains via the use of Latex Mandrels for the front triangle and T47 BB creates a super rigid platform for transferring every watt you produce into forward motion. Other small yet well-considered details such as the Quick-Fit headset spacers, up to 32mm of tire clearance, vibration dampening Seatstays and Seatpost makes for a package that ticks all the right boxes.
FEATURES/BENEFITS:
Aero Racing Frame: Aerodynamic Performance
Cable Integration: Improved Aerodynamics and Clean Aesthetic
Adjustable Compliance: Tuneable Seatpost Flex for Added Compliance
Rear Wheel Cut-out: Improved Aerodynamics

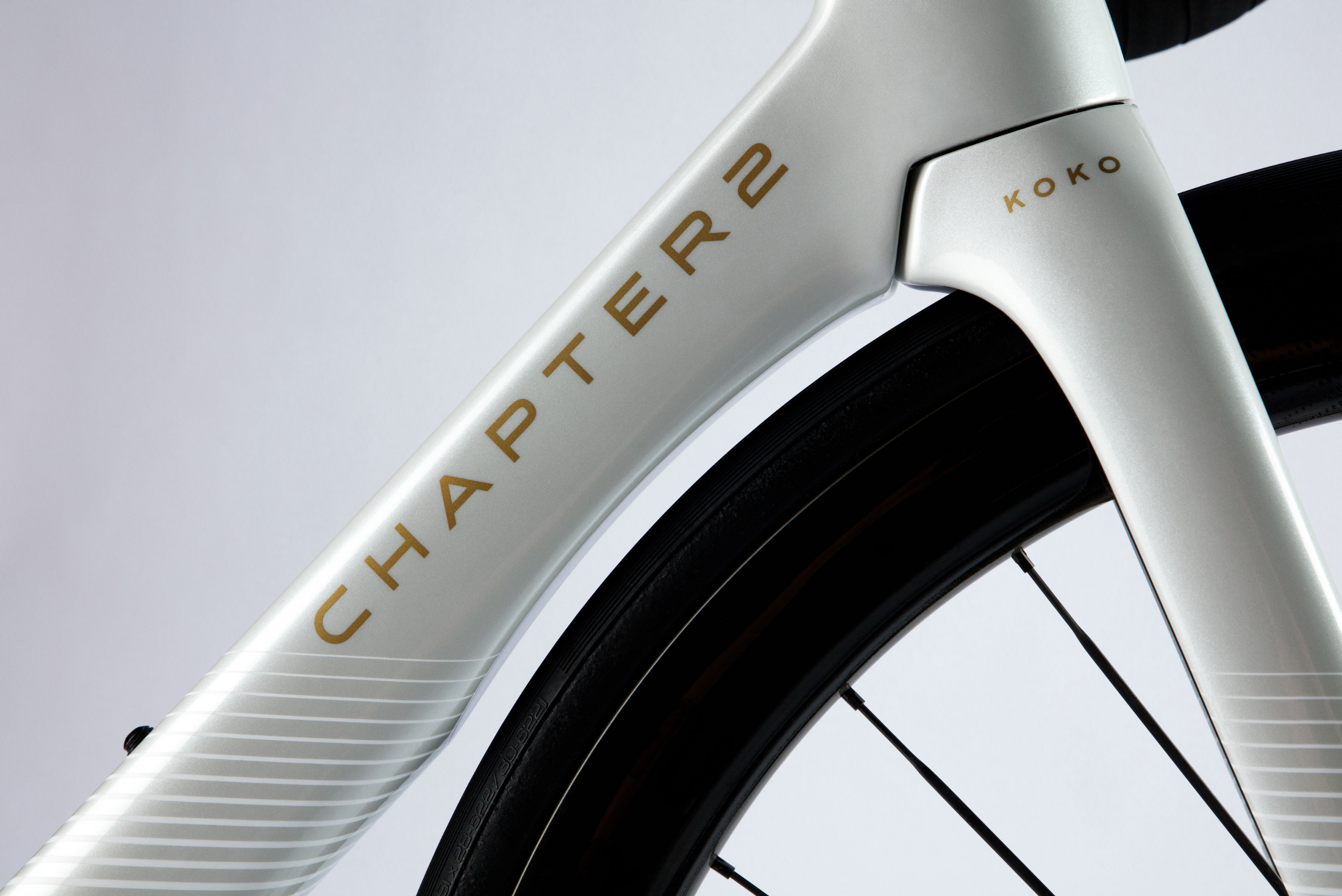

Kamm-Tail: Aerodynamic and Stiffness where needed
Up to 32mm Tire Clearance: Increased Tire Options
T47 BB: Noise-free and Easy to Service
Latex Mandrels: Improved Stiffness to Weight in Front Triangle
Frameset Only: Bespoke & Personal
Limited Edition: Exclusivity
SHIPPING & RETURNS
All products are eligible for return or exchange within 30 days of purchase for items in new, unused condition in their original packaging.
Customers are responsible for return shipping costs. GC may provide a shipping label for returns if requested, and the return shipping cost will be deducted from your return.
Please contact support for assistance with a return authorization by emailing contact@garagecycles.cc.
%20WHITE%20+%20GREY%20(TAURIPARIPA)%20-%20Carbon%20Road%20Bike){kind=link}
FEATURES
FULLY INTEGRATED CABLING - IMPROVED AERODYNAMICS - CLEAN AND SLEEK AESTHETIC
32 MM TIRE CLEARANCE - IMPROVED TRACTION - IMPROVED COMPLIANCE
T47 (86.5) BB - SERVICE FRIENDLY BB - IMPROVED STIFFNESS
ADJUSTABLE COMPLIANCE - IMPROVED COMPLIANCE - DUAL POSITION SEATCLAMP - INCREASED CANTILEVER ACTION
AERO KAMM-TAIL PROFILES - IMPROVED LATERAL STIFFNESS - IMPROVED HANDLING
BIKE FIT OPTIONS - CAN BE USED WITH MANA - OR WITH STANDARD STEM
SPECS
Air resistance is the single most critical factor that separates a fast bike from a bike that cuts through the air like a bird. KOKO means “to soar, fly” in Maori and as the name suggests, our Top Tier Aero Road model will have you smiling from ear to ear from the sheer thrill of unadulterated speed.
Taking the RERE’s Aero credentials to the next level, the KOKO now has Kamm-Tail profiles incorporated into the downtube, increasing the overall stiffness of the bottom bracket and headtube by 13.35% and 35.64% respectively. Married to our aerodynamically optimised and ergonomic MANA bar, the combination makes for a super sleek high-performance racing machine.
The KOKO also comes with adjustable compliance via a dual position seatclamp configuration that can be switched from stiff to buttery smooth depending on the rider’s personal needs and/or road conditions.
Further engineering gains via the use of Latex Mandrels for the front triangle and T47 BB creates a super rigid platform for transferring every watt you produce into forward motion. Other small yet well-considered details such as the Quick-Fit headset spacers, up to 32mm of tire clearance, vibration dampening Seatstays and Seatpost makes for a package that ticks all the right boxes.
Aero Racing Frame: Aerodynamic Performance
Cable Integration: Improved Aerodynamics and Clean Aesthetic
Adjustable Compliance: Tuneable Seatpost Flex for Added Compliance
Rear Wheel Cut-out: Improved Aerodynamics
Kamm-Tail: Aerodynamic and Stiffness where needed
Up to 32mm Tire Clearance: Increased Tire Options
T47 BB: Noise-free and Easy to Service
Latex Mandrels: Improved Stiffness to Weight in Front Triangle
Frameset Only: Bespoke & Personal
Limited Edition: Exclusivity
Carbon: 100% Made in Japan by Toray
Frame 6 Sizes: XXS, XS, S, M, L & XL
Fork Rakes (2): XXS, XS, S (53mm offset) and M, L, XL (43mm offset)
Frame Weight: 1,096g Size M +/- 3%
Fork Weight: 419g Uncut +/- 3%
Seatpost Weight: 215g Size M +/- 3%
Handlebar/Stem (MANA): 395g (100-420mm) +/- 3%
Headset: 1.5” C2 Integrated System
Mechanical & Electric Shifting: Versatile Groupset Options
Electronic Shifting: SHIMANO® Di2, SRAM® eTAP & Campagnolo® EPS compatible
Battery Type: Di2 SM-BTR-2 or BT-DN300 and EPS V3 Battery Compatible
Tire Clearance: 32mm
Brake Type: Disc Only
Bottom Bracket: Internal T47 (86.5)
Safety Standard: EN ISO 4210:2014
UCI Accreditation: UCI Approved
- Frame
- Fork
- Headset
- Seatpost
- Thru-Axles
- Quick-Fit Spacers
Saddle Rail: 6Nm
Seatclamp: 8Nm
Stem (Steerer): 6Nm
Stem (Handlebar): 6Nm
Front Derailleur Hanger: 3Nm
Rear Derailleur Hanger: 2Nm
BB Cable Guide Cover: 1Nm
Thru-Axle: 10Nm
Water Bottle Cage Bolts: 3Nm
SIZE GUIDE
| KOKO | XS | S | M | L | XL |
|---|---|---|---|---|---|
| Stack | 491 | 516 | 540 | 566 | 591 |
| Reach | 365 | 374 | 382 | 392 | 401 |
| A. Top Tube | 515 | 531 | 548 | 564 | 581 |
| B. Head Tube | 94 | 114 | 133 | 163 | 188 |
| C. Seat Tube Angle | 73° | 73° | 73° | 73° | 73° |
| D. Head Tube Angle | 70.5° | 72.2° | 73.1° | 73.5° | 73.5° |
| E. Seat Tube | 427 | 447 | 472 | 497 | 521 |
| F. BB Drop | 73 | 73 | 73 | 73 | 73 |
| G. Rear Centre | 408 | 408 | 408 | 408 | 408 |
| H. Wheelbase | 970 | 973 | 971 | 984 | 1000 |
| I. Front Centre | 574 | 576 | 574 | 587 | 603 |
| J. Fork Offset | 53 | 53 | 43 | 43 | 43 |
| K. Seatpost Setback | 10 | 10 | 10 | 10 | 10 |
| Stem | NA | NA | NA | NA | NA |
| Stand over | 708 | 730 | 755 | 780 | 805 |
| Rider Height | 160-170 | 165-175 | 170-180 | 175-185 | >180 |
| Max. Tire Size | 32 | 32 | 32 | 32 | 32 |
| Rear Caliper Mount | 25 | 25 | 25 | 25 | 25 |
MANA5
| Size | 80x405 | 80x416 | 90x405 | 90x416 | 90x427 | 100x416 | 100x427 | 100x438 | 110x427 | 110x438 | 110x449 | 120x449 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A. Stem | 80 | 80 | 90 | 90 | 90 | 100 | 100 | 100 | 110 | 110 | 110 | 120 |
| B. Width at Drops | 405 | 416 | 405 | 416 | 427 | 416 | 427 | 438 | 427 | 438 | 449 | 449 |
| C. Width at Hoods | 355 | 366 | 355 | 366 | 377 | 366 | 377 | 388 | 377 | 388 | 399 | 399 |
| D. Reach | 70 | 70 | 70 | 70 | 70 | 70 | 70 | 70 | 70 | 70 | 70 | 70 |
| E. Drop | 128 | 128 | 128 | 128 | 128 | 128 | 128 | 128 | 128 | 128 | 128 | 128 |
| F. Stem Angle | -7.0° | -7.0° | -7.0° | -7.0° | -7.0° | -7.0° | -7.0° | -7.0° | -7.0° | -7.0° | -7.0° | -7.0° |
MANA2
| Size | 80x380 | 90x391 | 100x402 | 110x413 | 120x424 | 130x435 |
|---|---|---|---|---|---|---|
| A. Stem | 80 | 90 | 100 | 110 | 120 | 130 |
| B. Width at Drops | 380 | 391 | 402 | 413 | 424 | 435 |
| C. Width at Hoods | 360 | 371 | 382 | 393 | 404 | 415 |
| D. Reach | 70 | 70 | 70 | 70 | 70 | 70 |
| E. Drop | 128 | 128 | 128 | 128 | 128 | 128 |
| F. Stem Angle | -7.0° | -7.0° | -7.0° | -7.0° | -7.0° | -7.0° |
