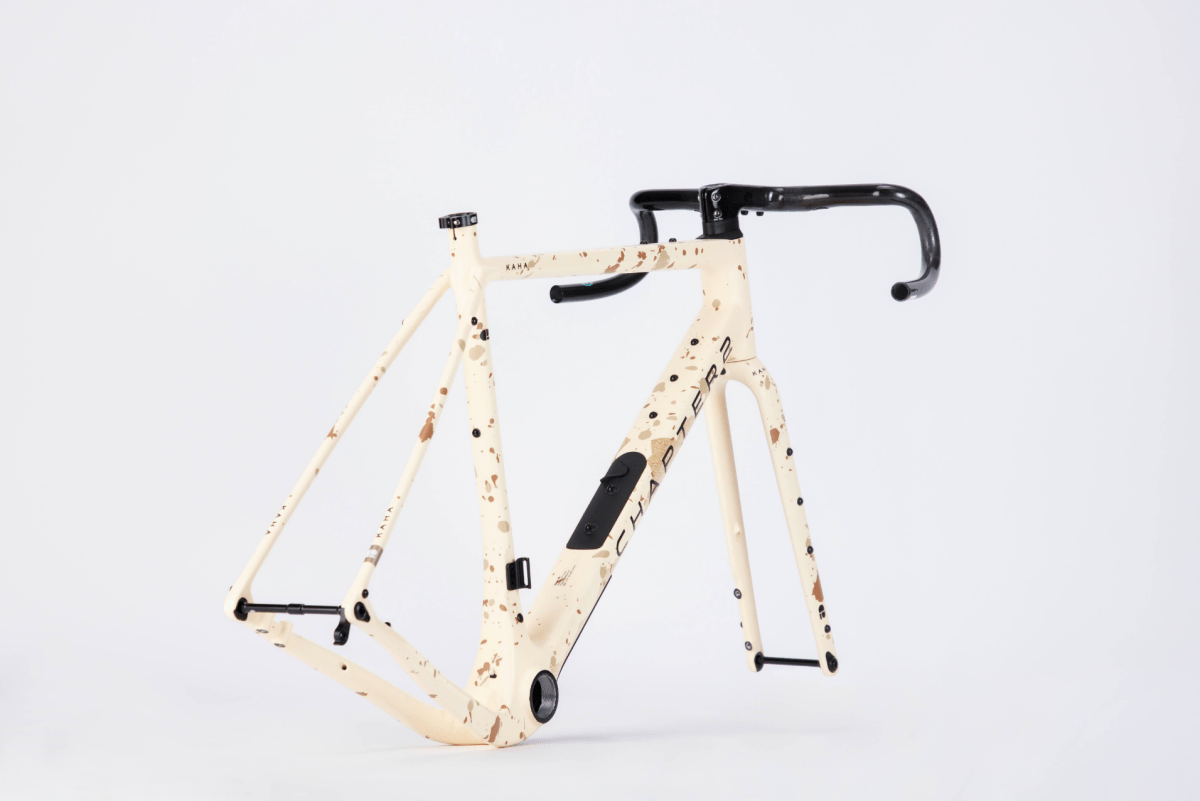

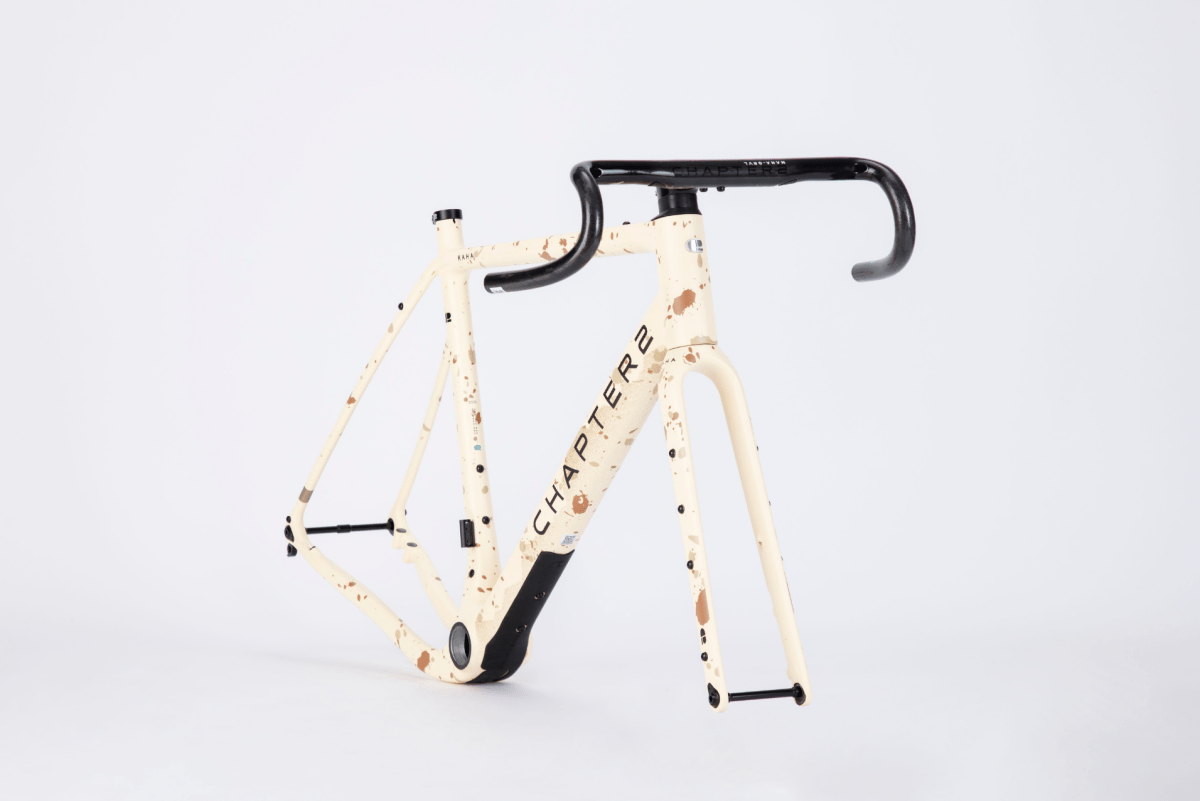

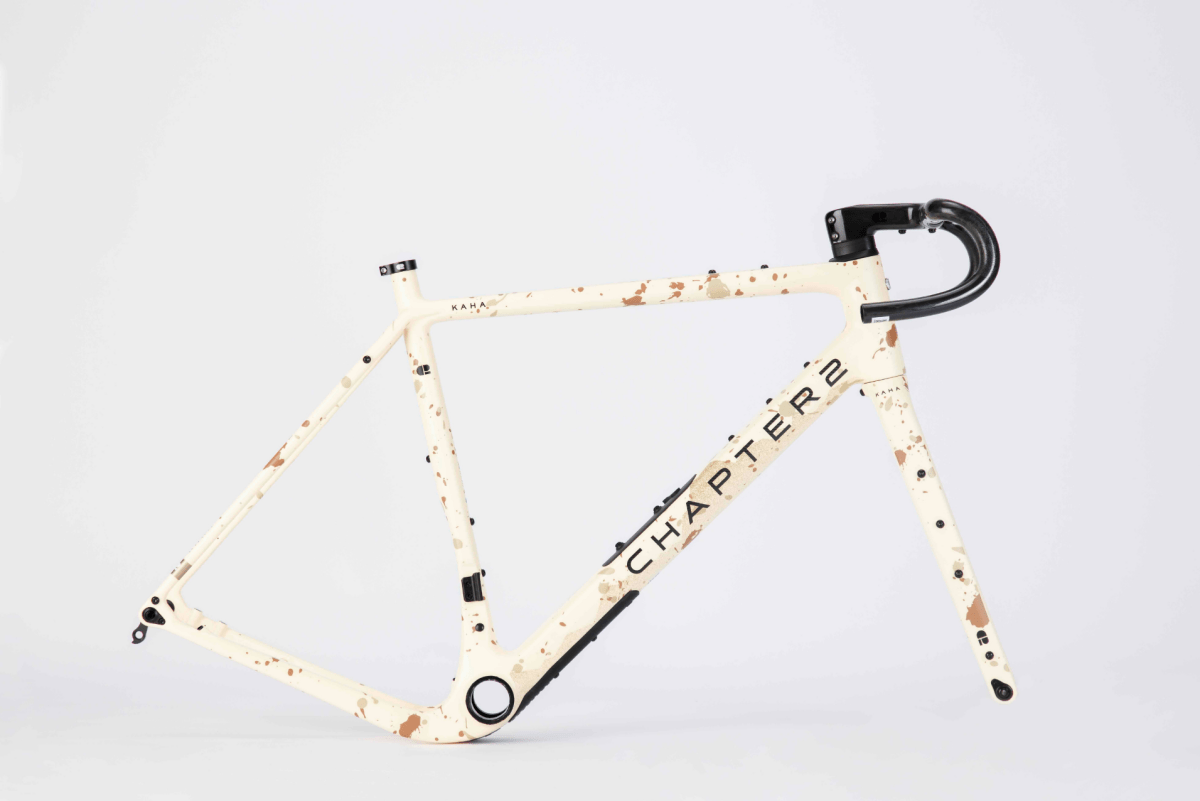

CHAPTER2 KAHA FRAMESET(DISC BRAKE) SAND (ONEPU) - Gravel Road Bike
Pickup currently unavailable at GC HQ - In Store Pickup
HIGHLIGHTS
Performance Gravel Racing Frame | Fully Integrated Cabling | Up to 47mm Tire Clearance
ABOUT THE FRAME:
The KAHA features fully integrated cabling via the MANA-GRVL Handlebar, Internal downtube storage compartment as well as a race ready and well balanced performance geometry.
The design brief for the KAHA was relatively simple, scratched onto the back of an envelope were the words “Controlled Speed”.
However, the journey to arrive at the perfect solution was anything but simple. We don’t want to skimp on practical details like storage, pannier/ fender racks, or ability to fit TT-Clip bars. Iteration after iteration, review after review, every little detail and decision was scrutinized to the nth degree.
Needless to say, all that effort was worth it, as the final deliverable achieves all the performance metrics we had envisioned for a High-Performance Gravel Racer.
FEATURES/BENEFITS:
Performance Geometry: Improved Agility at Speed

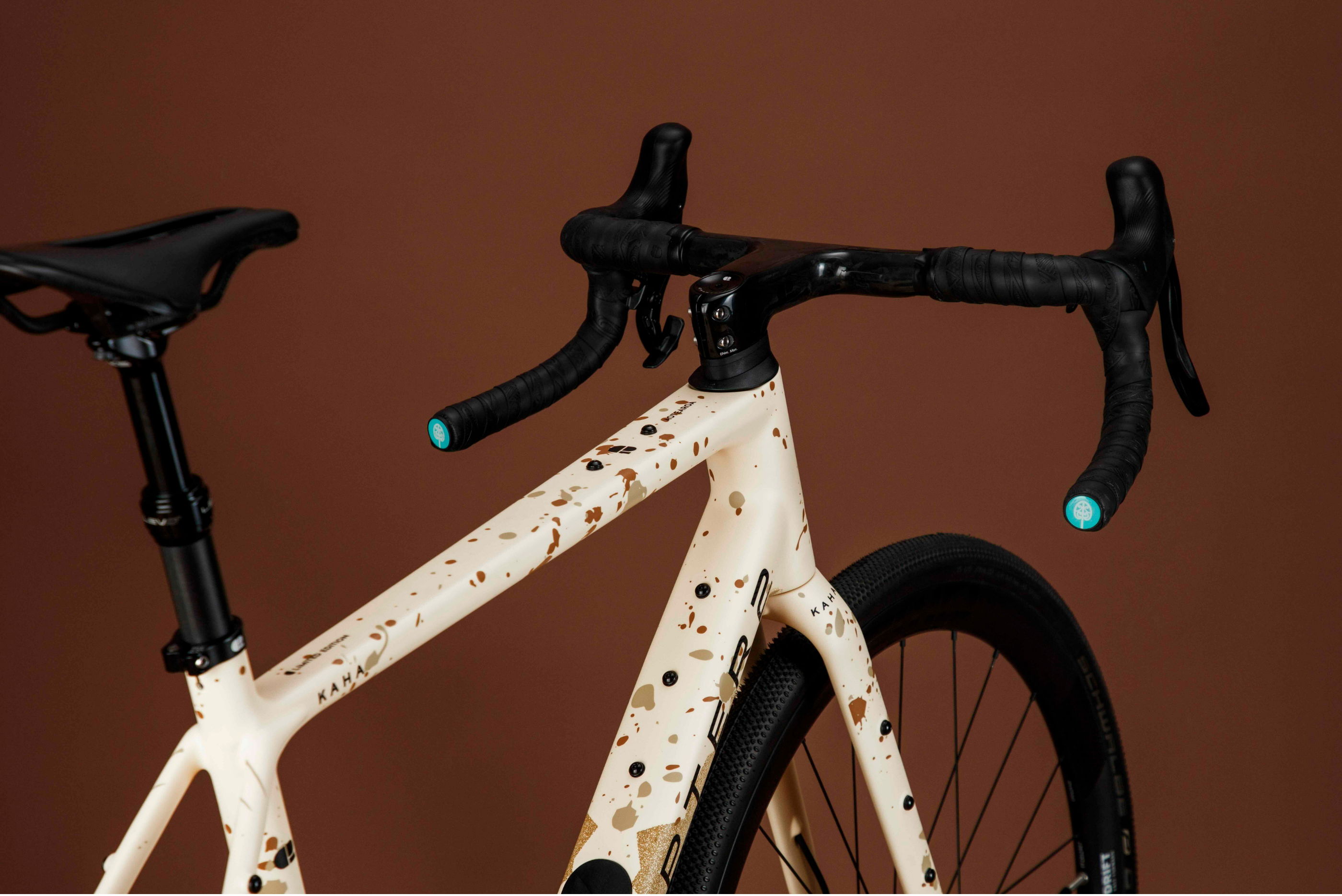

Integrated MANA-GRVL: Improved Aerodynamics and Clean Aesthetics
MANA-GRVL (Clip-on): Ability to use Clip-on Bars
50mm Front & 47mm Rear Tire Clearance: Increased Tire Options
Integrated Storage: Hidden Storage for CO2 Cartridges/Tubes etc
Ample Mounting Points: Flexible Hydration, Luggage & Rack Options
T47 BB: Noise-free and Easy to Service
Frameset Only: Bespoke & Personal
SHIPPING & RETURNS
All products are eligible for return or exchange within 30 days of purchase for items in new, unused condition in their original packaging.
Customers are responsible for return shipping costs. GC may provide a shipping label for returns if requested, and the return shipping cost will be deducted from your return.
Please contact support for assistance with a return authorization by emailing contact@garagecycles.cc.
%20SAND%20(ONEPU)%20%20-%20Gravel%20Road%20Bike){kind=link}
FEATURES
FULLY INTEGRATED CABLING - IMPROVED AERODYNAMICS - CLEAN AND SLEEK AESTHETIC

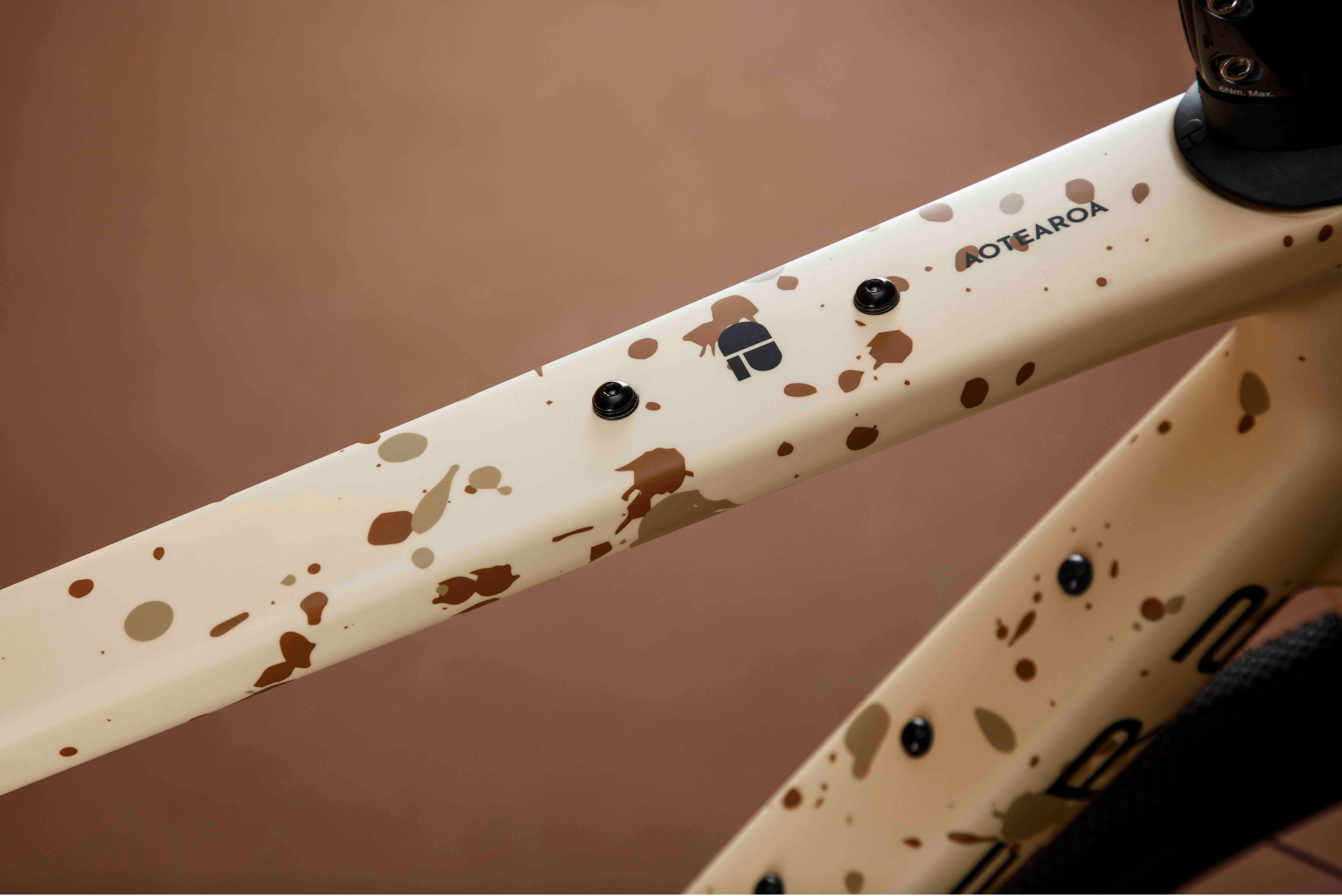

ADVENTURE OPTIONS - PANNIER & FENDOR MOUNTS - UP TO 5 BOTTLE MOUNTS - BENTO BOX MOUNT
INTEGRATED STORAGE - STORE SERVICE ITEMS - MOUNT DI2/EPS BATTERY
TIRE CLEARANCE - UP TO 50MM FRONT - UP TO 47MM REAR
BIKE FIT OPTIONS - CAN BE USED WITH MANA - OR WITH STANDARD STEM
DOWNTUBE/BB - T47 85.5BB - DOWNTUBE PROTECTION - ADDITIONAL BOTTLE MOUNT
SPECS
The KAHA features fully integrated cabling via the MANA-GRVL Handlebar, Internal downtube storage compartment as well as a race ready and well balanced performance geometry.
The design brief for the KAHA was relatively simple, scratched onto the back of an envelope were the words “Controlled Speed”.
However, the journey to arrive at the perfect solution was anything but simple. We don’t want to skimp on practical details like storage, pannier/ fender racks, or ability to fit TT-Clip bars. Iteration after iteration, review after review, every little detail and decision was scrutinized to the nth degree.
Needless to say, all that effort was worth it, as the final deliverable achieves all the performance metrics we had envisioned for a High-Performance Gravel Racer.
Performance Geometry: Improved Agility at Speed
Integrated MANA-GRVL: Improved Aerodynamics and Clean Aesthetics
MANA-GRVL (Clip-on): Ability to use Clip-on Bars
50mm Front & 47mm Rear Tire Clearance: Increased Tire Options
Integrated Storage: Hidden Storage for CO2 Cartridges/Tubes etc
Ample Mounting Points: Flexible Hydration, Luggage & Rack Options
T47 BB: Noise-free and Easy to Service
Frameset Only: Bespoke & Personal
Carbon: 100% Made in Japan by Toray
Frame 5 Sizes: XS, S, M, L & XL
Fork Rakes (2): XS, S (65mm offset) and M, L, XL (55mm offset)
Carbon: 100% Made in Japan by Toray
Frame 5 Sizes: XS, S, M, L & XL
Fork Rakes (2): XS, S (65mm offset) and M, L, XL (55mm offset)
Frame Weight: 1,099g Size M +/-3%
Fork Weight: 409g +/-3%
Handlebar/Stem (MANA-GRVL): 330g (100x491mm) +/-3%
Headset: 1.5” C2 Integrated System
Mechanical & Electric Shifting: Versatile Groupset Options
Electronic Shifting: SHIMANO®️ Di2, SRAM®️ AXS Groupset (KAHA Glossy Black Not Sram UDH compatible) & Campagnolo®️ EPS compatible
Battery Type: Di2 SM-BTR-2 or BT-DN300 and EPS V3 Battery Compatible
Tire Clearance: 47mm (700C) & 47mm (650B)
Brake Type: Disc Only (140 & 160 Rotors)
Bottom Bracket: Internal T47 (85.5)
Safety Standard: EN ISO 4210:2014
- Frame
- Fork
- Headset
- Seatpost
- Thru-Axles
- Quick-Fit Spacers
Seatclamp: 6Nm
Stem (Steerer): 6Nm
Stem (Handlebar): 6Nm
Front Derailleur Hanger: 3Nm
Rear Derailleur Hanger: 2Nm
BB Cable Guide Cover: 1Nm
Thru-Axle: 10Nm
Water Bottle Cage Bolts: 3Nm
SIZE GUIDE
| KAHA | XS | S | M | L | XL |
|---|---|---|---|---|---|
| Stack | 519 | 545 | 571 | 596 | 622 |
| Reach | 377 | 386 | 395 | 404 | 413 |
| A. Top Tube | 535 | 553 | 569 | 586 | 603 |
| B. Head Tube | 101 | 129 | 148 | 175 | 202 |
| C. Seat Tube Angle | 73° | 73° | 73° | 73° | 73° |
| D. Head Tube Angle | 71° | 71° | 72° | 72° | 72° |
| E. Seat Tube | 436 | 462 | 491 | 512 | 541 |
| F. BB Drop | 70 | 70 | 70 | 70 | 70 |
| G. Rear Centre | 415 | 415 | 415 | 415 | 415 |
| H. Wheelbase | 1009 | 1027 | 1024 | 1041 | 1059 |
| I. Front Centre | 604 | 622 | 619 | 636 | 653 |
| J. Fork Offset | 65 | 65 | 65 | 65 | 65 |
| Stem | NA | NA | NA | NA | NA |
| Stand over | 751 | 776 | 804 | 826 | 853 |
| Rider Height | 160-170 | 165-175 | 170-180 | 175-185 | >180 |
| Max. Tire Size F/R | 50/47 | 50/47 | 50/47 | 50/47 | 50/47 |
| Rear Caliper Mount | 25 | 25 | 25 | 25 | 25 |
MANA HANDLEBAR
| Size | 80x469 | 90x480 | 100x491 | 110x502 | 120x513 | 130x524 |
|---|---|---|---|---|---|---|
| A. Stem | 80 | 90 | 100 | 110 | 120 | 130 |
| B. Width at Drops | 469 | 480 | 491 | 502 | 513 | 524 |
| C. Width at Hoods | 380 | 391 | 402 | 413 | 424 | 435 |
| D. Reach | 70 | 70 | 70 | 70 | 70 | 70 |
| E. Drop | 110 | 110 | 110 | 110 | 110 | 110 |
| F. Stem Angle | -7.0° | -7.0° | -7.0° | -7.0° | -7.0° | -7.0° |
